NSN 6515-00-225-9719 8888265322, 8888-265322, 00-225-9719
Product Details | SURGICAL STOMACH TUBE
6515-00-225-9719 An elastic, hollow cylinder, approximately 60 inches long, having a relatively heavy and smoothly finished wall. The item has end and side openings at the outlet end and a funnel at the opposite end. The tube may have a rubber bulb attached at the medial section. The item is used for feeding and evacuating the contents of the stomach.
Part Alternates: 8888265322, 8888-265322, 6515-00-225-9719, 00-225-9719, 6515002259719, 002259719
Medical, Dental, and Veterinary Equipment and Supplies | Medical and Surgical Instruments, Equipment, and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 65 | 01 JAN 1963 | 00-225-9719 | 13561 ( TUBE, STOMACH, SURGICAL ) |

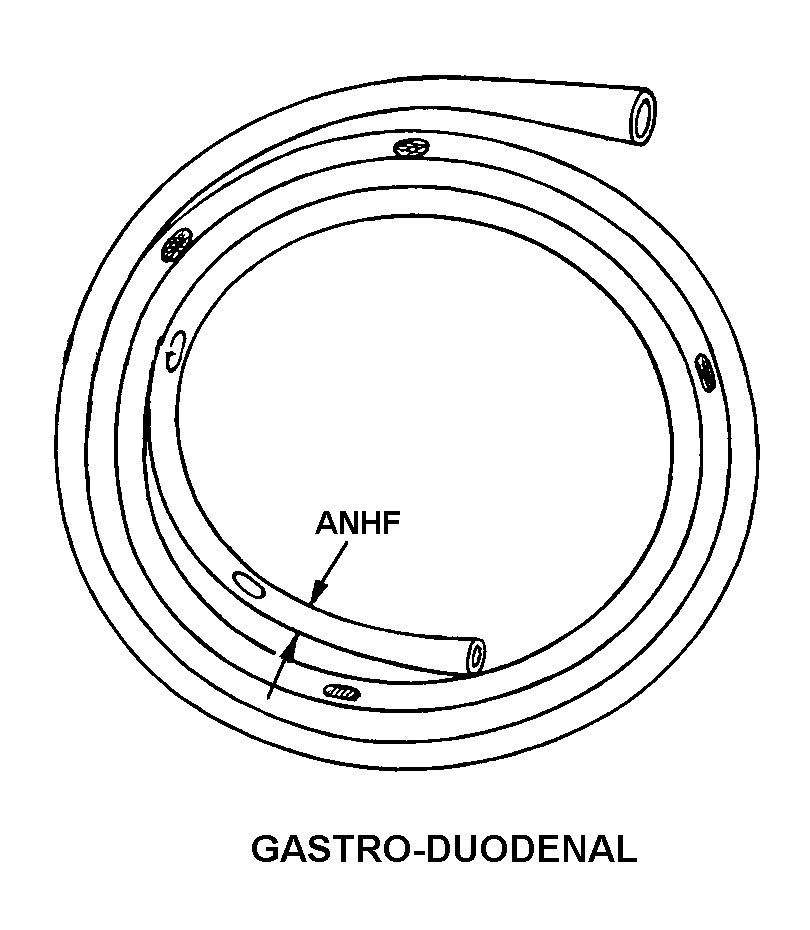

Drawings & Photos | NSN 6515-00-225-9719
Demand History | NSN 6515-00-225-9719
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6515-00-225-9719 | 2016-07-202 | 1 | DIBBS |
| 6515-00-225-9719 | 2011-10-287 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6515-00-225-9719
Related Products | NSN 6515-00-225-9719
Technical Data | NSN 6515-00-225-9719
| Characteristic | Specifications |
|---|---|
| DESIGN DESIGNATION | LEVIN |
| STYLE DESIGNATOR | E10 GASTRO-DUODENAL |
| NOMINAL DIAMETER | 16.000 FRENCH |
| MATERIAL AND LOCATION | PLASTIC OVERALL |
| TIP TYPE | OPEN END |
| CORE FABRICATION METHOD | NOT WOVEN |
| SPECIAL FEATURES | 48 IN. LG; W/INTEGRAL FUNNEL CONNECTOR AT PROXIMAL END; FLEXIBLE; TRANSPARENT; ONE HOLE IN DISTAL END AND 4 OVAL EYES IN SIDE WALL NEAR DISTAL END OR 5 OVAL EYES; BANDED 18,22,26,AND 30 IN. FROM DISTAL END; USED FOR ASPIRATING,TUBE FEEDING,OR IRRIGATING; COLD OR STEAM STERILIZABLE; INDIVIDUALLY SEALED; UNIT PKG QTY 50 |
| III INTERMEDIATE PACKAGE QUANTITY | 1 |
| III EXTERIOR CONTAINER QUANTITY | 6 |
| III UNIT OF ISSUE WEIGHT | 2.75 POUNDS |
| III UNIT OF ISSUE CUBE | 0.334 CUBIC FEET |
| III EXTERIOR CONTAINER CUBIC MEASURE | 2.505 CUBIC FEET |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | TUBE STOMACH SURGICAL LEVIN 16FR E10 GASTRO-DUODENAL NONSTER 50S |
Restrictions/Controls & Freight Information | NSN 6515-00-225-9719
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | R | 48 months |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 056680 | DENTAL/MEDICAL/SURG INST R MACHINE |
| Less than car load rating | ||
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 651 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | M | Medical supplies, equipment, samples records, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6515-00-225-9719
Army
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | C | Medical/Dental Materiel |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 01 | Type 1 (Non-Extendable) Potency- Dated Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | R | 48 months |
| Purchasing | QTY UOM |
1 PG : Package |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | 5 | General Property Materiel15; 16; 18; 31; 35; 39; 40; 44; 49 except 4910, 4925, 4930, 4931, 4933, 4935; 51; 52; 53; 63; 65 except 6545; 69; 70; 71; 72; 73; 74; 75; 76; 77; 78; 79; 80; 81 except 8140; 83; 84; 85; 87; 88; 89; 91; 93; 94; 95; 96; 99 10.3-125 |
| Echelon Management Code | 4 | ICP/DSSCs Marine Corps/Defense/Integrated Materiel Manager (IMM) items which have been decontrolled by the inventory managers for local procurement. |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | R | 48 months |
| Purchasing | QTY UOM |
1 PG : Package |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | R | 48 months |
| Purchasing | QTY UOM |
1 PG : Package |
