NSN 6350-00-508-0855 NAVS 74465IC/H1 S4, NAVS74465IC/H1S4, NAVS74465ICH1S4
Product Details | SIGNAL HORN
6350-00-508-0855 A device designed to convert energy into audible signals by means of a diaphragm or specially designed horn element. Sound may be produced by liquid, electro-mechanical device or pressure means.
Part Alternates: NAVS 74465IC/H1 S4, NAVS74465IC/H1S4, NAVS74465ICH1S4, IC/H1S4, ICH1S4, MILA15303, MIL-A-15303, 302GCX-120VAC/TM33-H1S4, 302GCX120VACTM33H1S4, 51722, 815-F-74465 TYP E IC/H1S4, 815-F-74465 TYPE 1C/H1S4, 815F74465TYPE1CH1S4, 815F74465TYPEICH1S4, 9000S6504-7445REVATYPEIC/H1S4, 9000S65047445REVATYPEICH1S4, 9000S650474465, 9000-S6504-74465, 9000S650474465REVATYPE1CH1S4, 9000S6504-74465REVATYPE1CH1S4, 9000-S6504-7446REVATYPEIC/H1S4, 9000S65047446REVATYPEICH1S4, 6350-00-508-0855, 00-508-0855, 6350005080855, 005080855
Alarm, Signal and Security Detection Systems | Miscellaneous Alarm, Signal, and Security Detection Systems
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 63 | 01 JAN 1963 | 00-508-0855 | 42662 ( HORN, SIGNAL ) |

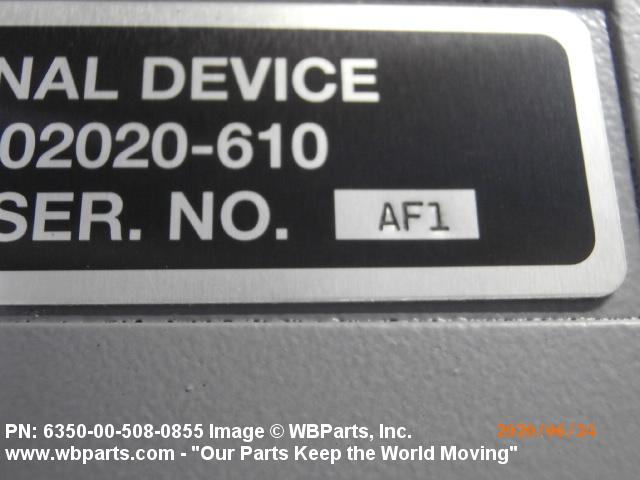

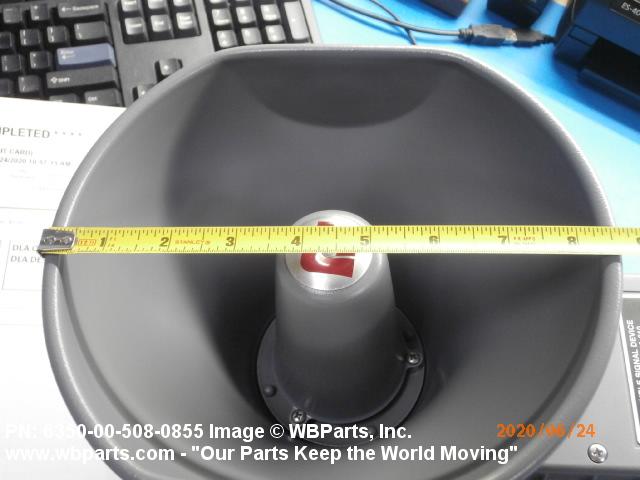

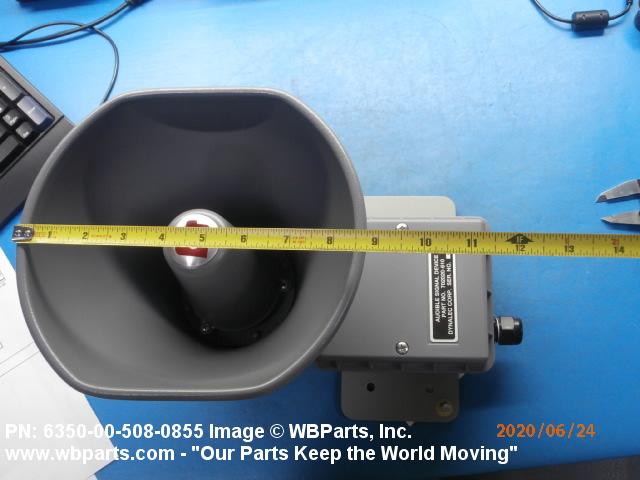

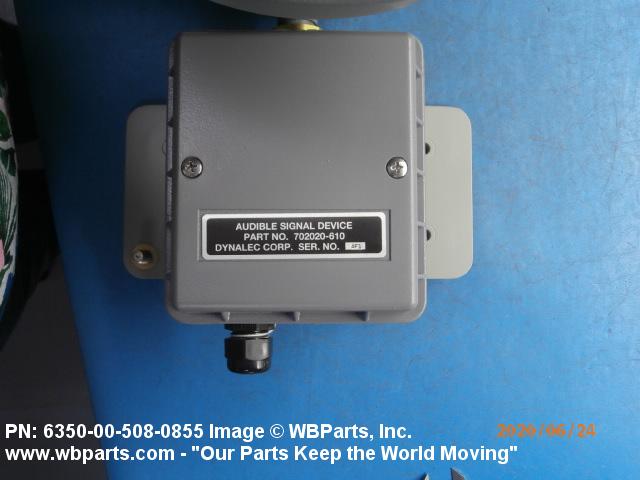

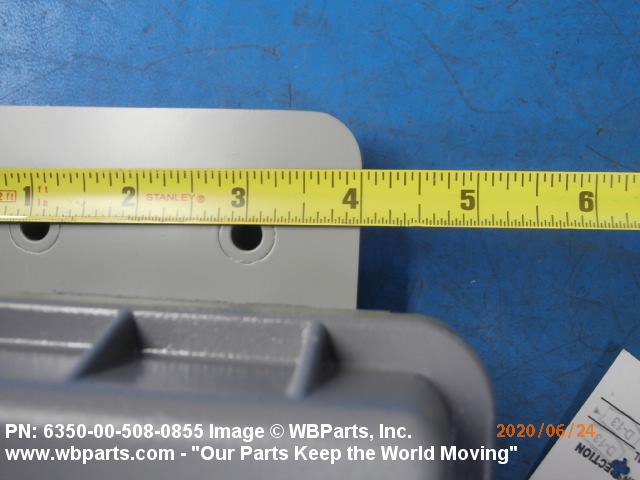

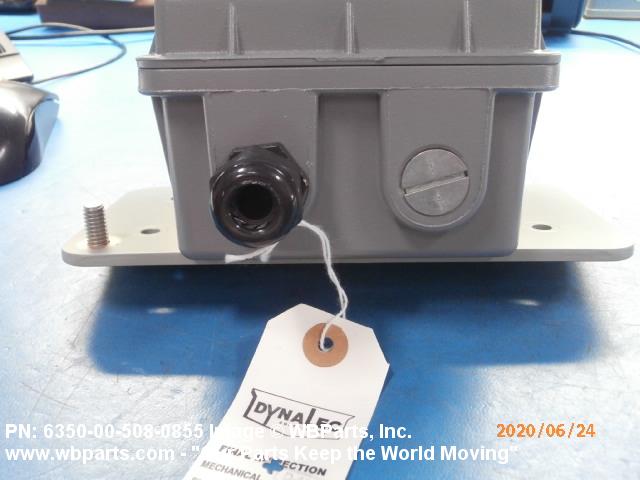

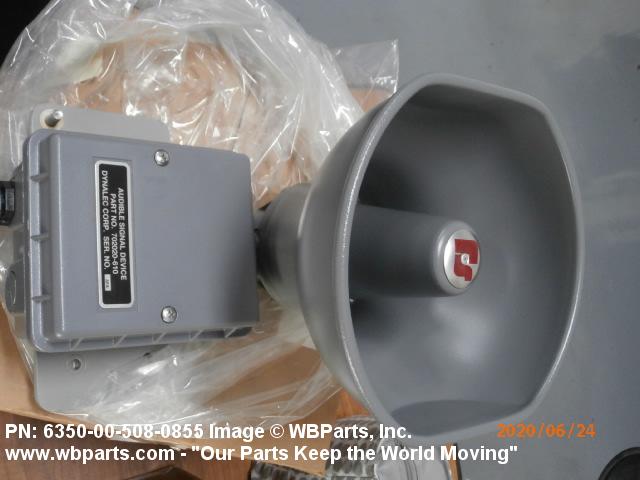

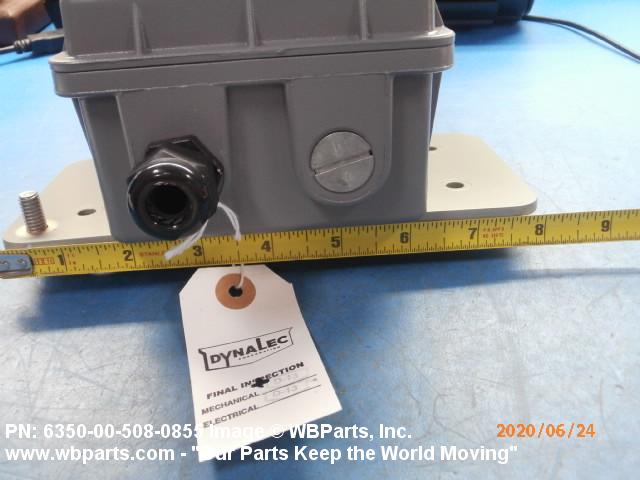

Drawings & Photos | NSN 6350-00-508-0855
Demand History | NSN 6350-00-508-0855
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6350-00-508-0855 | 2024-03-78 | 1 | United States |
| 302GCX-120VAC/TM33-H1S4 | 2023-12-351 | 4 | DIBBS |
| 302GCX-120VAC/TM33-H1S4 | 2023-06-170 | 10 | DIBBS |
| 302GCX-120VAC/TM33-H1S4 | 2023-02-51 | 16 | DIBBS |
| 302GCX-120VAC/TM33-H1S4 | 2022-11-324 | 15 | DIBBS |
| 302GCX-120VAC/TM33-H1S4 | 2022-07-198 | 4 | DIBBS |
| 302GCX-120VAC/TM33-H1S4 | 2022-03-82 | 13 | DIBBS |
| 6350-00-508-0855 | 2022-03-68 | 1 | US |
| 302GCX-120VAC/TM33-H1S4 | 2022-03-67 | 13 | DIBBS |
| 302GCX-120VAC/TM33-H1S4 | 2022-02-48 | 12 | DIBBS |
| 302GCX-120VAC/TM33-H1S4 | 2021-10-291 | 9 | DIBBS |
| 302GCX-120VAC/TM33-H1S4 | 2021-10-280 | 9 | DIBBS |
| 302GCX-120VAC/TM33-H1S4 | 2020-12-363 | 41 | DIBBS |
| 302GCX-120VAC/TM33-H1S4 | 2020-12-348 | 41 | DIBBS |
| 302GCX-120VAC/TM33-H1S4 | 2020-10-282 | 20 | DIBBS |
| 302GCX-120VAC/TM33-H1S4 | 2020-09-271 | 20 | DIBBS |
| 302GCX-120VAC/TM33-H1S4 | 2020-05-141 | 29 | DIBBS |
| 6350-00-508-0855 | 2020-03-90 | 2 | United States |
| 6350-00-508-0855 | 2019-11-325 | 2 | United States |
| 6350-00-508-0855 | 2019-08-238 | 1 | US |
| 6350-00-508-0855 | 2016-09-265 | 1 | DIBBS-RFPs |
| 6350-00-508-0855 | 2016-09-251 | 9 | DIBBS |
| 6350-00-508-0855 | 2016-06-173 | 11 | DIBBS |
| 6350-00-508-0855 | 2016-04-115 | 10 | DIBBS |
| 6350-00-508-0855 | 2016-01-06 | 10 | DIBBS |
| 6350-00-508-0855 | 2015-11-308 | 9 | DIBBS |
| 6350-00-508-0855 | 2015-10-286 | 14 | DIBBS |
| 6350-00-508-0855 | 2015-09-266 | 3 | DIBBS |
| 6350-00-508-0855 | 2015-06-168 | 5 | DIBBS |
| 6350-00-508-0855 | 2014-05-149 | 19 | DIBBS |
| 6350-00-508-0855 | 2013-12-359 | 15 | DIBBS |
| 6350-00-508-0855 | 2013-08-240 | 13 | DIBBS |
| 6350-00-508-0855 | 2013-08-231 | 1 | US |
| 6350-00-508-0855 | 2013-07-197 | 8 | DIBBS |
| 6350-00-508-0855 | 2013-06-160 | 8 | DIBBS |
| 51722 | 2012-07-205 | 10 | US |
Cross Reference | NSN 6350-00-508-0855
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 302GCX-120VAC/TM33-H1S4 | 65063 | FEDERAL SIGNAL CORPORATION DBA FEDERAL SIGNAL-CODESPEAR |
| 51722 | 23905 | L-3 COMMUNICATIONS WESTWOOD CORPORATION |
| 815-F-74465 TYP E IC/H1S4 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 815-F-74465 TYPE 1C/H1S4 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 9000-S6504-74465 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 9000-S6504-7446REVATYPEIC/H1S4 | 30003 | NAVAL AIR SYSTEMS COMMAND |
| 9000S6504-7445REVATYPEIC/H1S4 | 30003 | NAVAL AIR SYSTEMS COMMAND |
| 9000S6504-74465REVATYPE1CH1S4 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| IC/H1S4 | 65063 | FEDERAL SIGNAL CORPORATION DBA FEDERAL SIGNAL-CODESPEAR |
| IC/H1S4 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| IC/H1S4 | 98905 | FEDERAL SIGNAL INTERNATIONAL FSC LTD DIV ELECTRICAL PRODUCTS |
| ICH1S4 | 30753 | YOUNG ENGINEERING COMPANY INC. |
| MIL-A-15303 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| NAVS 74465IC/H1 S4 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| NAVS74465IC/H1S4 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6350-00-508-0855
Related Products | NSN 6350-00-508-0855
Technical Data | NSN 6350-00-508-0855
| Characteristic | Specifications |
|---|---|
| HOLE DIAMETER | 0.406 INCHES NOMINAL |
| LOUDNESS LEVEL IN DECIBELS | 95 DB,10 FT |
| SOUND PROJECTOR QUANTITY | 1 |
| SOUND PROJECTOR TYPE | TRUMPET |
| TERMINAL QUANTITY | 2 |
| TERMINAL TYPE | STUD |

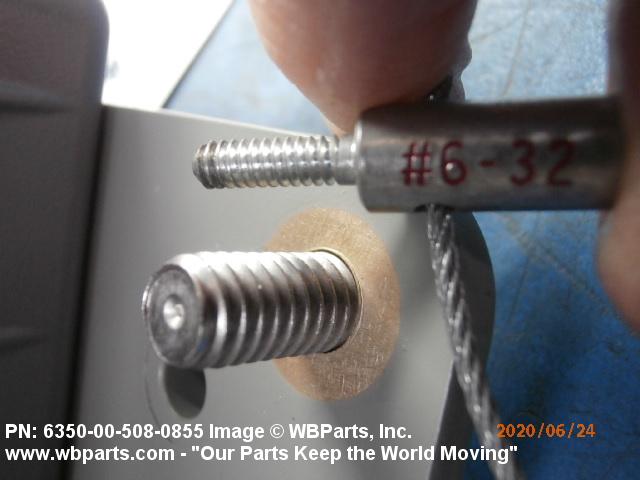

| TERMINAL THREAD SIZE AND SERIES/TYPE DESIGNATOR | 6-32 UNC |
| MOUNTING BRACKET | PROVIDED |
| MOUNTING HOLE/STUD QUANTITY | 3 |
| HOUSING MATERIAL | BRASS |
| INCLOSURE FEATURE | WATERTIGHT |
| SURFACE TREATMENT | ENAMEL |
| OVERALL LENGTH | 13.625 INCHES NOMINAL |
| OVERALL DIAMETER | 7.000 INCHES NOMINAL |
| SPECIAL FEATURES | TERMINAL THREAD IS CLASS 2 |
| NONDEFINITIVE SPEC/STD DATA | IC/H1S4 TYPE |
| DEPARTURE FROM CITED DOCUMENT | AS MODIFIED BY MANUFACTURING DATA |
| (NON-CORE DATA) FREQUENCY RATING | 60.0 HERTZ NOMINAL |
| (NON-CORE DATA) ELECTRICAL POWER SOURCE RELATIONSHIP | OPERATING |
| (NON-CORE DATA) AC VOLTAGE RATING | 115.0 VOLTS NOMINAL |
Restrictions/Controls & Freight Information | NSN 6350-00-508-0855
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 012530 | ALARM/HORN/SIGNAL SOUND WARNING |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6350-00-508-0855
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
