NSN 6350-00-224-4950 IC/S1D4, ICS1D4, MILA15303
Product Details | ELECTRIC MOTOR OPERATED SIREN
6350-00-224-4950 00001016350000000
Part Alternates: IC/S1D4, ICS1D4, MILA15303, MIL-A-15303 , 302GCX-024 AND TM33-IC/S1D4, 302GCX024ANDTM33ICS1D4, 9000S650474309, 9000-S6504-74309, 6350-00-224-4950, 00-224-4950, 6350002244950, 002244950
Alarm, Signal and Security Detection Systems | Miscellaneous Alarm, Signal, and Security Detection Systems
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 63 | 01 JAN 1963 | 00-224-4950 | 00140 ( SIREN, ELECTRIC MOTOR OPERATED0 ) |

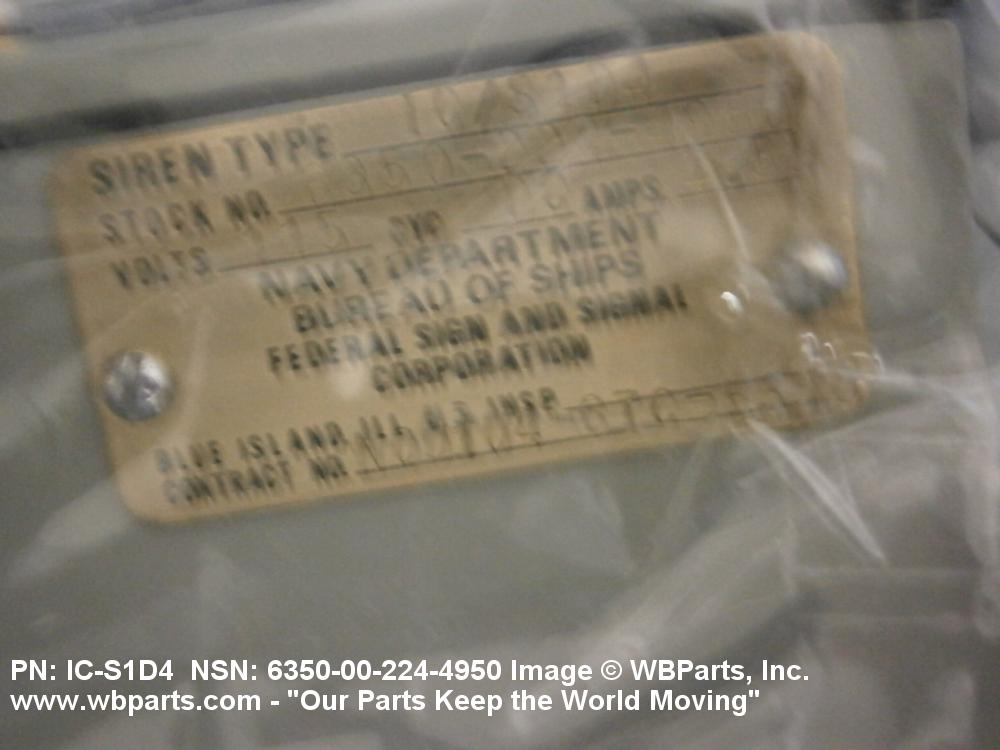

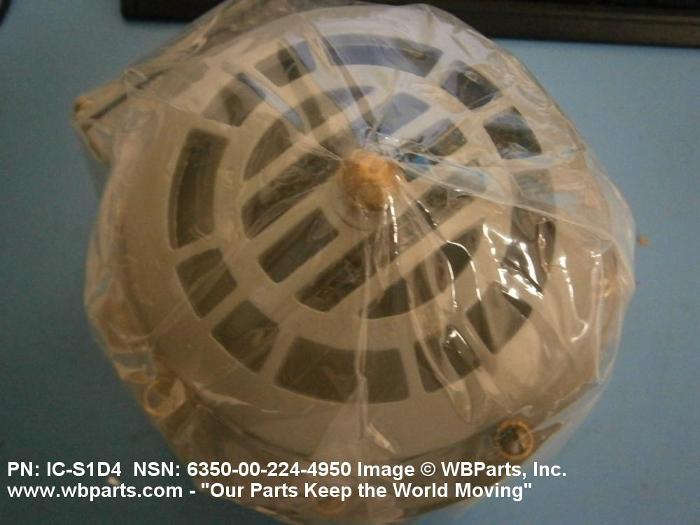

Drawings & Photos | NSN 6350-00-224-4950
Demand History | NSN 6350-00-224-4950
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6350-00-224-4950 | 2018-07-201 | 4 | CA |
| 6350-00-224-4950 | 2018-02-43 | 1 | US |
| 6350-00-224-4950 | 2017-12-347 | 1 | DIBBS-RFPs |
| 6350-00-224-4950 | 2017-12-345 | 38 | DIBBS |
| 6350-00-224-4950 | 2017-05-134 | 8 | DIBBS |
| 6350-00-224-4950 | 2017-04-114 | 8 | DIBBS |
| 6350-00-224-4950 | 2017-02-37 | 10 | DIBBS |
| 6350-00-224-4950 | 2014-04-99 | 1 | us |
| 6350-00-224-4950 | 2013-09-263 | 1 | DIBBS-RFPs |
| 6350-00-224-4950 | 2013-03-83 | 1 | US |
| 6350-00-224-4950 | 2012-10-304 | 5 | DIBBS |
| 6350-00-224-4950 | 2012-04-100 | 41 | DIBBS |
| 6350-00-224-4950 | 2011-09-263 | 32 | DIBBS |
| 6350-00-224-4950 | 2011-08-230 | 2 | United States |
| 6350-00-224-4950 | 2011-06-161 | 10 | DIBBS |
| 6350-00-224-4950 | 2011-05-136 | 23 | DIBBS |
| 6350-00-224-4950 | 2011-03-68 | 5 | DIBBS |
| 6350-00-224-4950 | 2010-09-250 | 14 | DIBBS |
| 6350-00-224-4950 | 2010-07-205 | 9 | DIBBS |
| 6350-00-224-4950 | 2009-02-36 | 14 | DIBBS |
Cross Reference | NSN 6350-00-224-4950
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 302GCX-024 AND TM33-IC/S1D4 | 65063 | FEDERAL SIGNAL CORPORATION DBA FEDERAL SIGNAL-CODESPEAR |
| 9000-S6504-74309 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| IC/S1D4 | 65063 | FEDERAL SIGNAL CORPORATION DBA FEDERAL SIGNAL-CODESPEAR |
| IC/S1D4 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-A-15303 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6350-00-224-4950
Related Products | NSN 6350-00-224-4950
Technical Data | NSN 6350-00-224-4950
| Characteristic | Specifications |
|---|---|
| MOTOR | INCLUDED |
| CURRENT TYPE | DC |
| VOLTAGE IN VOLTS | 115.0 |
| PRIME MOVER HORSEPOWER RATING | ANY ACCEPTABLE |
| OPERATING SPEED AT RATED CAPACITY IN RPM | ANY ACCEPTABLE |
| WATTAGE RATING IN WATTS | 200.0 |
| TERMINAL QUANTITY | ANY ACCEPTABLE |
| TERMINAL TYPE | ANY ACCEPTABLE |
| RESONANCE FEATURE | NOT INCLUDED |
| LIGHT | NOT PROVIDED |
| BRAKING FACILITY | NOT INCLUDED |
| MATERIAL AND LOCATION | STEEL SIREN HOUSING |
| SURFACE TREATMENT AND LOCATION | ENAMEL, GRAY SIREN HOUSING |
| OVERALL LENGTH | ANY ACCEPTABLE |
| OVERALL DIAMETER | ANY ACCEPTABLE |
| OVERALL HEIGHT | ANY ACCEPTABLE |
| MOUNTING METHOD | BRACKET |
| MOUNTING CONFIGURATION | ANY ACCEPTABLE |
| INCLOSURE FEATURE | SPLASH PROOF |
| NONDEFINITIVE SPEC/STD DATA | IC/S1D4 TYPE |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILA15303 |
Restrictions/Controls & Freight Information | NSN 6350-00-224-4950
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 012530 | ALARM/HORN/SIGNAL SOUND WARNING |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6350-00-224-4950
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
