NSN 6340-01-448-3059 17N8D0860, 17P8D2000501, 17P8D2000-501
Product Details | FIRE DETECTOR SYSTEM SENSING ELEMENT
6340-01-448-3059 An item consisting of a pair of electrical conductors imbedded in a semiconductor material, having a negative temperature coefficient of resistance which is tightly encased in a suitable metallic tube. The ends of the assembly are terminated for adaption in a fire detector system.20263400033Aircraft Alarm and Signal Systems63500059Miscellaneous Alarm, Signal, and Security Detection Systems
Part Alternates: 17N8D0860, 17P8D2000501, 17P8D2000-501, 6340-01-448-3059, 01-448-3059, 6340014483059, 014483059
Alarm, Signal and Security Detection Systems | Aircraft Alarm and Signal Systems
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 63 | 26 AUG 1997 | 01-448-3059 | 20919 ( SENSING ELEMENT, FIRE DETECTOR SYSTEM ) |

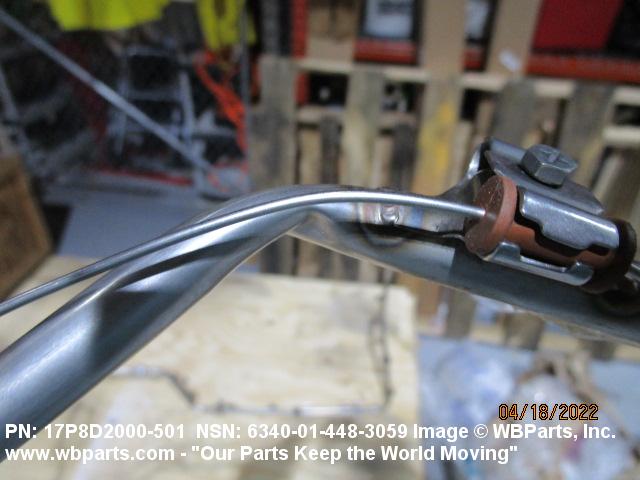

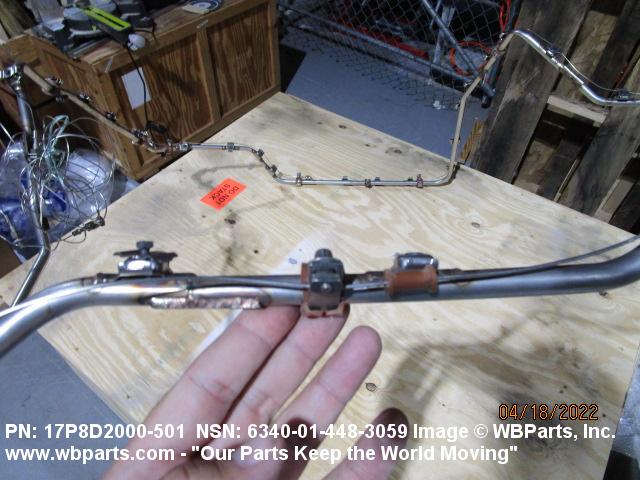

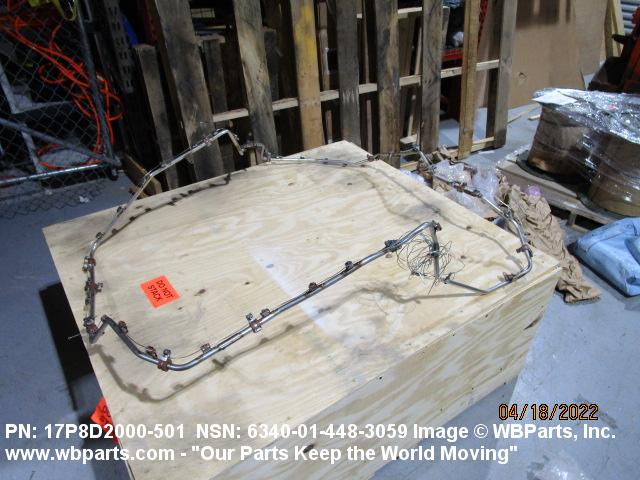

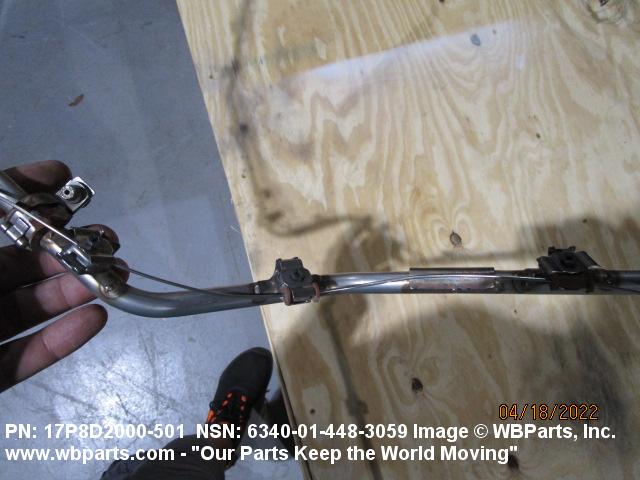

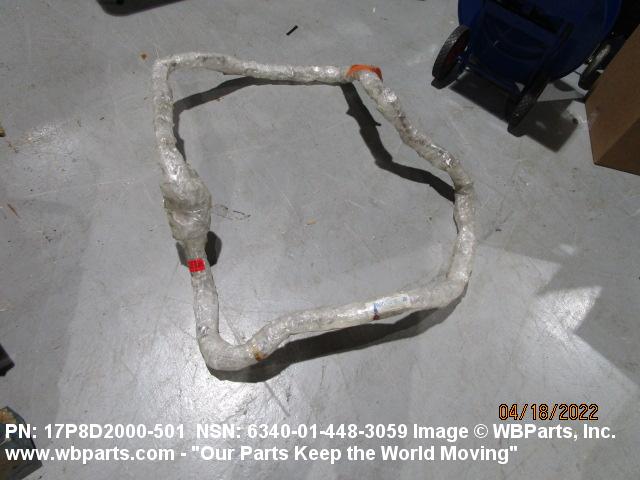

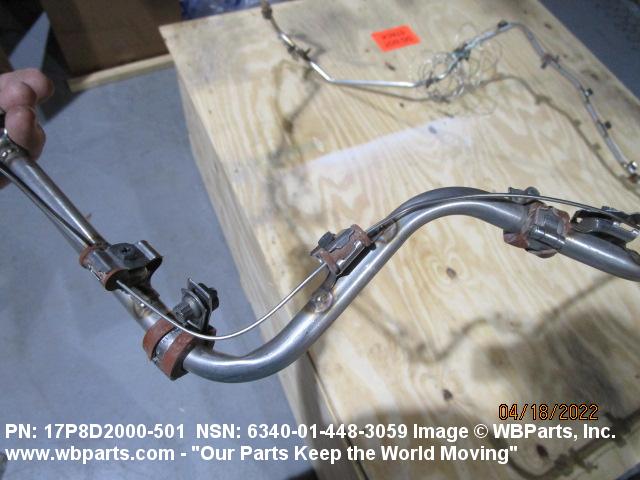

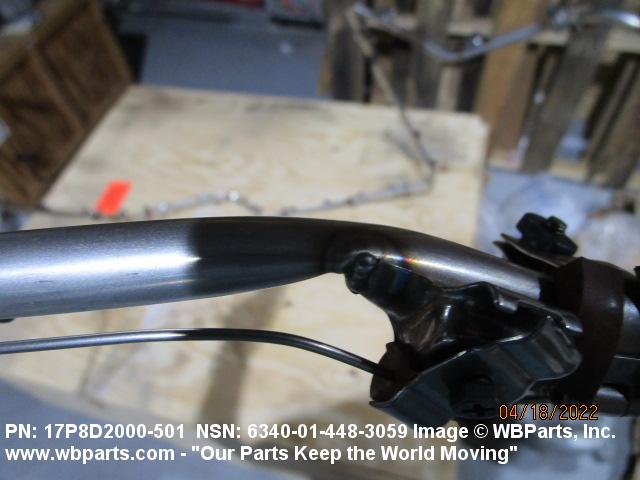

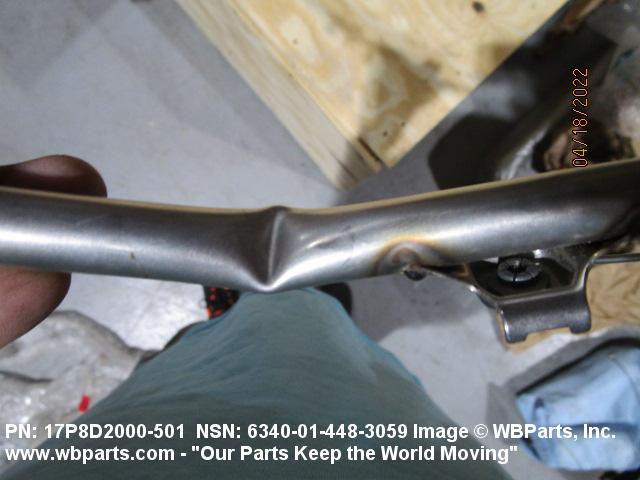

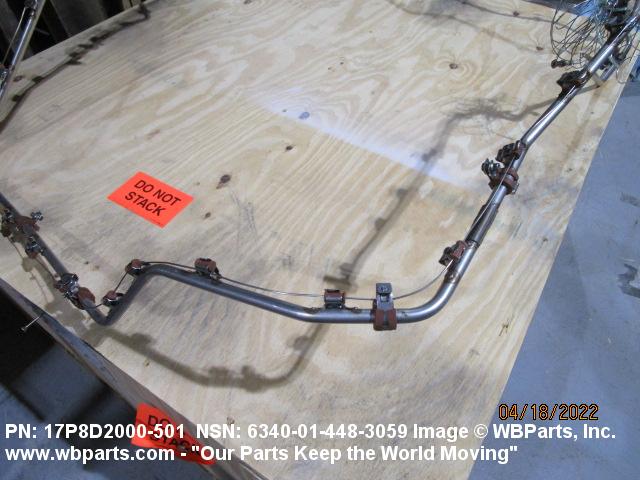

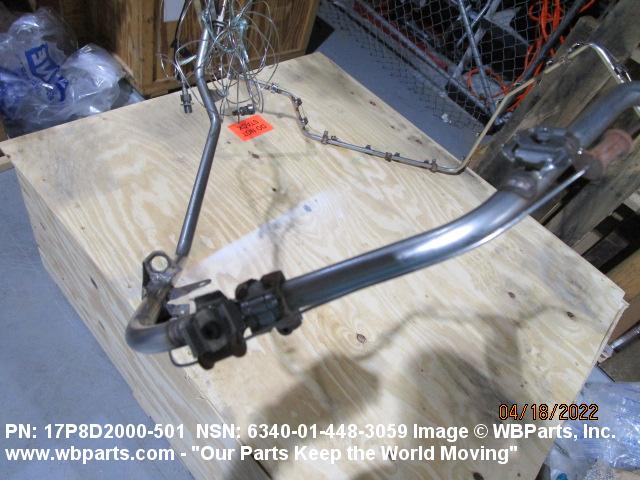

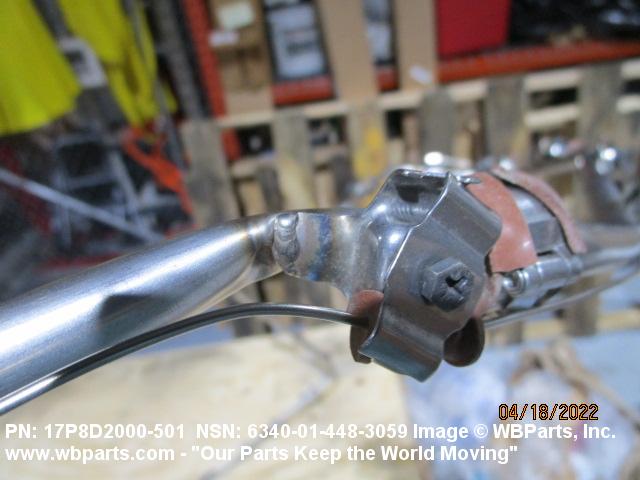

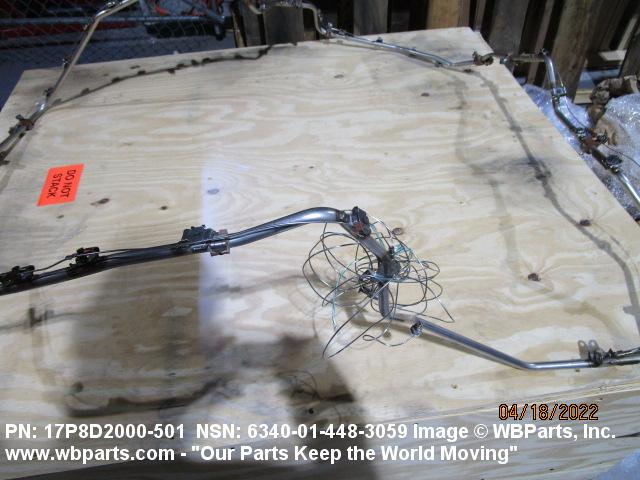

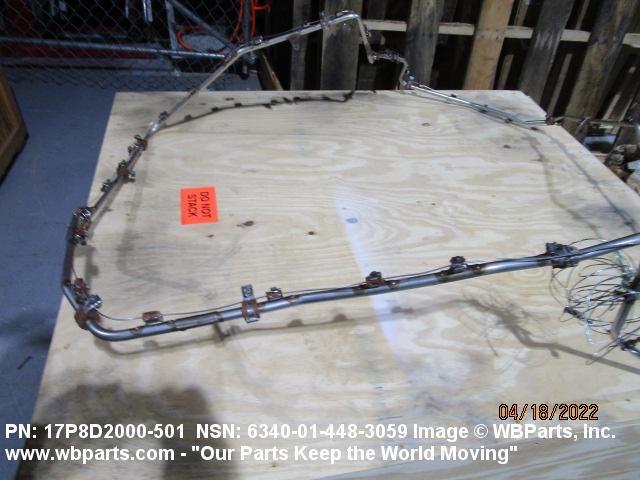

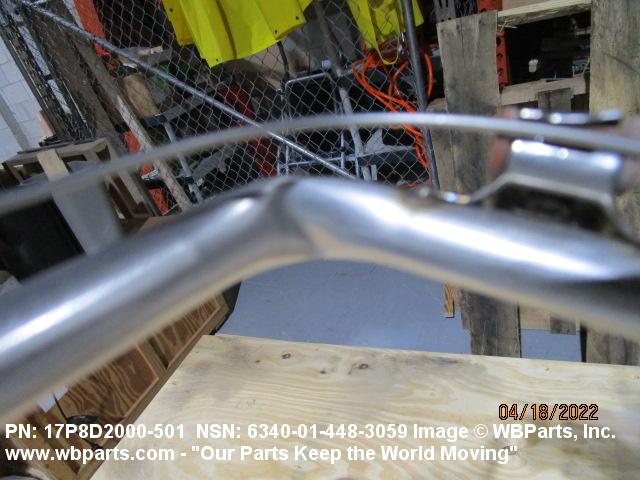

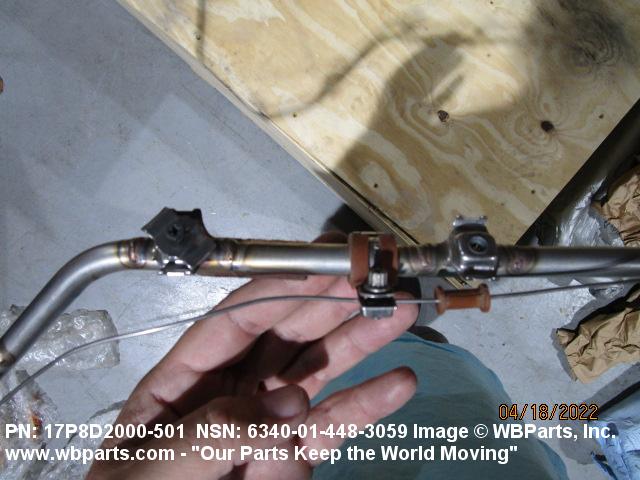

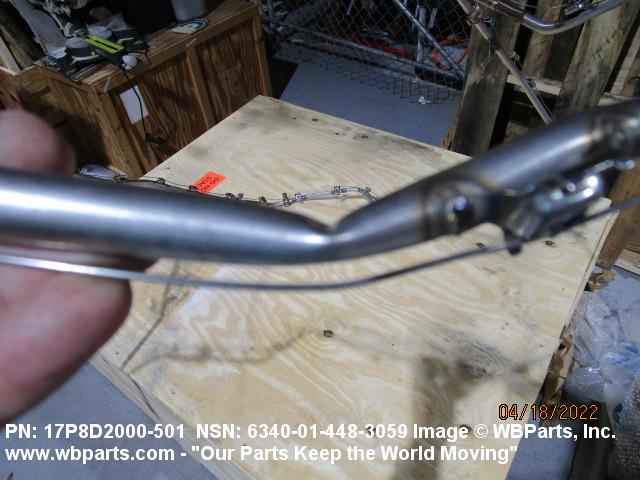

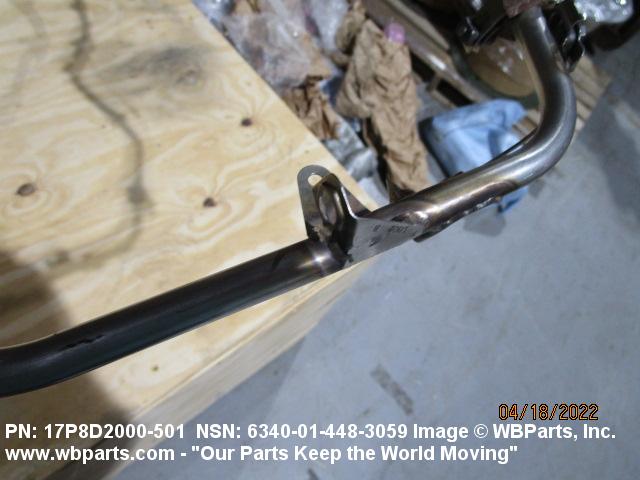

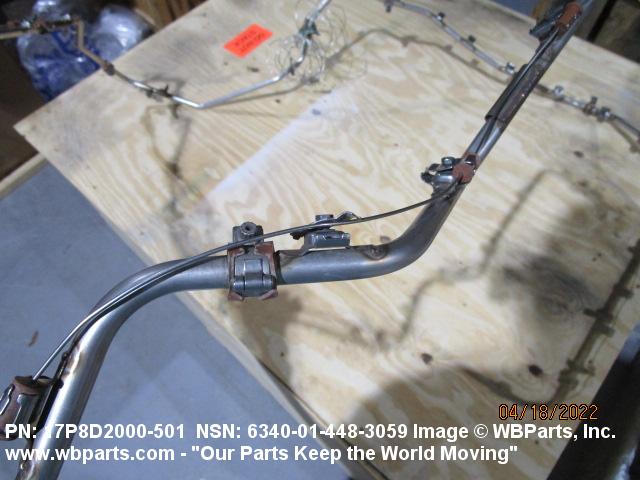

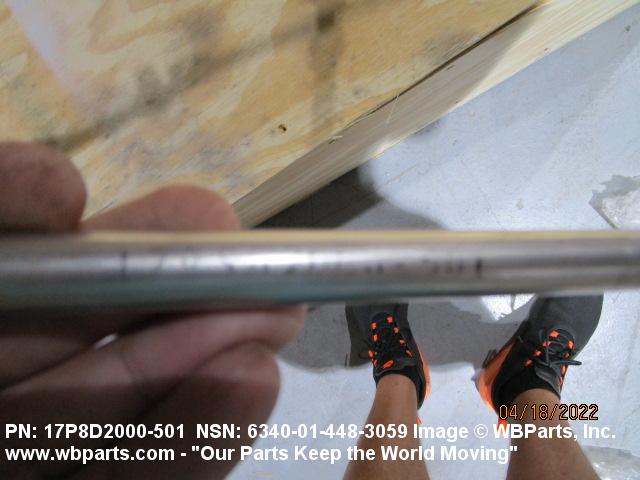

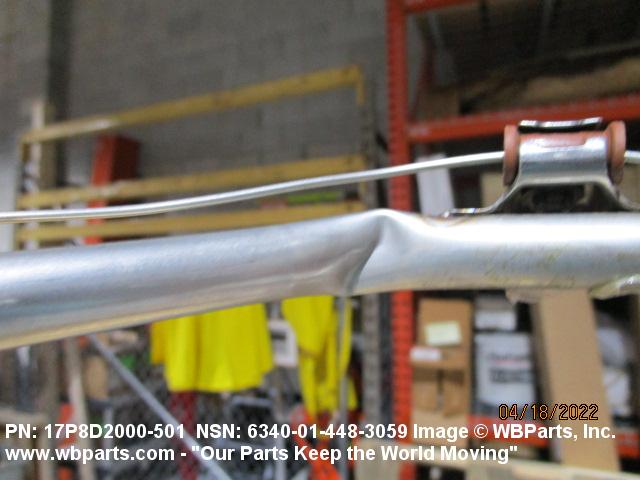

Drawings & Photos | NSN 6340-01-448-3059
Demand History | NSN 6340-01-448-3059
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 17P8D2000501 | 2022-04-95 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6340-01-448-3059
Related Products | NSN 6340-01-448-3059
Technical Data | NSN 6340-01-448-3059
| Characteristic | Specifications |
|---|---|
| ELEMENT LENGTH | 14.198 FEET MINIMUM AND 14.239 FEET MAXIMUM |
| FIRE ALARM MINIMUM TEMP SETTING | 2000.0 DEG FAHRENHEIT |
| TEMP SETTING TOLERANCE | 395.0 DEG FAHRENHEIT MINIMUM AND 405.0 DEG FAHRENHEIT MAXIMUM |
| TERMINATION QUANTITY | 1 AND 1 |
| TERMINATION CONTROLLING AGENCY | WALTER KIDDE BOTH TERMINATIONS |
| TERMINATION TYPE | CONNECTOR PLUG AND CONNECTOR SOCKET |
| SPECIAL FEATURES | ITEM MADE UP OF THE FOLLOWING ITEMS:MS25082C7,NUT,PLAIN,HEXAGON ; 896809SENSING ELEMENT;17P8D2001-501,SUPPORT;ELE CTROSTATIC DISCHARGE SENSITIVE |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III END ITEM IDENTIFICATION | C-17A ENGINE INSTALLATION |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | ORIGINAL NAME ON DRAWING FIRE DETECTION INSTL, ENGINE BUILD-UP |
| MANUFACTURERS CODE | 88277 |
| DESIGN CONTROL REFERENCE | 17P8D2000-501 |
Restrictions/Controls & Freight Information | NSN 6340-01-448-3059
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 012530 | ALARM/HORN/SIGNAL SOUND WARNING |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TK | HQ AFMC/GLSC 401 SCM/GUMB Wright-Patterson AFB, OH 45433-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6340-01-448-3059
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | BE | TB:C-17 ENGINE |
| Price Validation | P | The current standard price is the initial negotiated provisioned price.
|
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Source of Supply | F77 | Boeing Military Transportation Aircraft Los Angeles, CA 90307-3044 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | P | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
