NSN 6250-01-131-5570 QCJ11R, QCJ-11R, 49A0020
Product Details | LAMPHOLDER
6250-01-131-5570 An electric fitting primarily designed to electrically and mechanically accommodate a lamp. It may include an integral switch, transformer, or dropping resistor, provided these items control the lamp only. It does not include a shade, lens, reflector, or other item for modifying illumination. For items designed to mount on a CONDUIT OUTLET, or JUNCTION BOX; see FIXTURE, LIGHTING.
Part Alternates: QCJ11R, QCJ-11R, 49A0020, 6250-01-131-5570, 01-131-5570, 6250011315570, 011315570
Lighting Fixtures and Lamps | Ballasts, Lampholders, and Starters
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 12 MAY 1982 | 01-131-5570 | 16208 ( LAMPHOLDER ) |

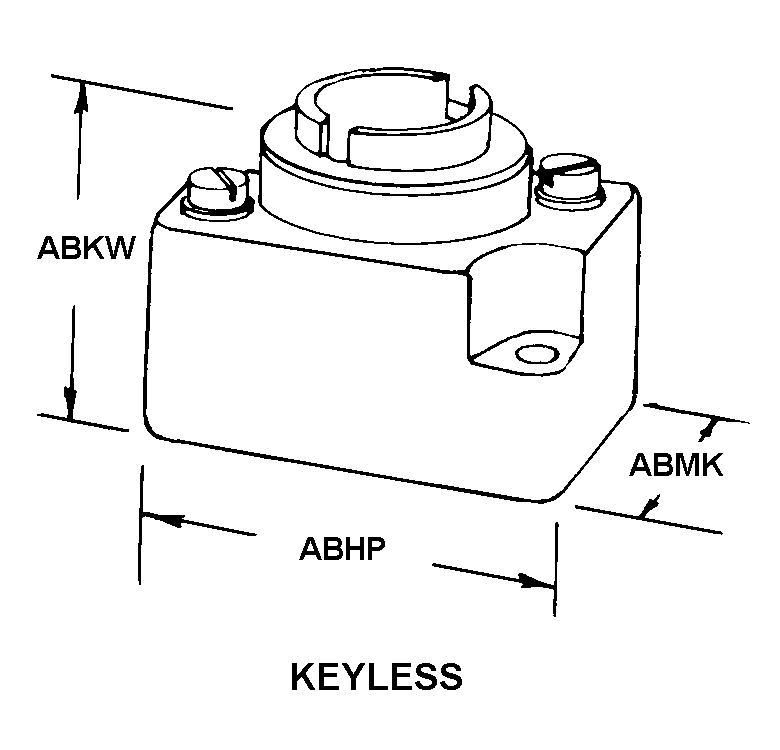

Drawings & Photos | NSN 6250-01-131-5570
Demand History | NSN 6250-01-131-5570
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| QCJ11R | 2019-04-101 | 77 | DIBBS |
| QCJ11R | 2019-02-35 | 12 | DIBBS |
| 6250-01-131-5570 | 2018-03-64 | 39 | DIBBS |
| 6250-01-131-5570 | 2017-09-254 | 12 | DIBBS |
| 6250-01-131-5570 | 2017-08-241 | 12 | DIBBS |
| 6250-01-131-5570 | 2017-08-240 | 10 | DIBBS |
| 6250-01-131-5570 | 2017-08-227 | 10 | DIBBS |
| 6250-01-131-5570 | 2016-09-250 | 314 | DIBBS |
| 6250-01-131-5570 | 2016-08-238 | 314 | DIBBS |
| 6250-01-131-5570 | 2015-03-63 | 90 | DIBBS |
| 6250-01-131-5570 | 2015-01-26 | 20 | DIBBS |
| 6250-01-131-5570 | 2015-01-15 | 20 | DIBBS |
| 6250-01-131-5570 | 2014-12-340 | 20 | DIBBS |
| 6250-01-131-5570 | 2014-11-328 | 20 | DIBBS |
| 6250-01-131-5570 | 2014-09-247 | 20 | DIBBS |
| 6250-01-131-5570 | 2014-07-212 | 30 | DIBBS |
| 6250-01-131-5570 | 2012-07-210 | 20 | DIBBS |
| 6250-01-131-5570 | 2012-03-61 | 20 | DIBBS |
| 6250-01-131-5570 | 2010-07-191 | 6 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6250-01-131-5570
Technical Data | NSN 6250-01-131-5570
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A13 KEYLESS |
| OVERALL LENGTH | 1.250 INCHES NOMINAL |
| OVERALL HEIGHT | 1.062 INCHES NOMINAL |
| OVERALL WIDTH | 1.250 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES | 0.875 INCHES NOMINAL |
| BODY MATERIAL | CERAMIC AND STEEL |
| LAMP BASE TYPE ACCOMMODATED | TWO PIN PREFOCUS |
| CURRENT RATING IN AMPS | NOT RATED |
| WATTAGE RATING IN WATTS | NOT RATED |
| TERMINAL TYPE | SOLDER LUG |
| TERMINAL QUANTITY | 2 |
| MOUNTING FEATURE TYPE | SURFACE |
| MOUNTING METHOD | HOLES FOR SCREWS |
| MOUNTING MATERIAL | STEEL |
| MOUNTING DEVICE QUANTITY | 2 |
| SPECIAL FEATURES | INCLUDES MTD LAMP EXTRACTOR |
Restrictions/Controls & Freight Information | NSN 6250-01-131-5570
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109700 | LAMP OR LIGHTING FIXTURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 761 | unknown |
| Originating Activity Code | 48 | Federal Aviation Administration Oklahoma City, OK 73125 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6250-01-131-5570
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
