NSN 6250-01-080-6536 FMEE78013TYIV, FMEE-78-013TYIV, 01-080-6536
Product Details | LAMPHOLDER ADAPTER
6250-01-080-6536 An electrical fitting designed to establish the necessary accommodations to connect a single-unit lampholder to two or more lampbases; to a lampbase of a different size; or to a lampbase of the same size in order to provide switching facilities or an adjustable angle. Does not include ADAPTER, CONNECTOR. For items which also have facilities for accommodating connectors, use ADAPTER, CONNECTOR TO LAMPBASE.
Part Alternates: FMEE78013TYIV, FMEE-78-013TYIV, 6250-01-080-6536, 01-080-6536, 6250010806536, 010806536
Lighting Fixtures and Lamps | Ballasts, Lampholders, and Starters
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 30 JUL 1979 | 01-080-6536 | 05764 ( ADAPTER, LAMPHOLDER ) |
Drawings & Photos | NSN 6250-01-080-6536
Cross Reference | NSN 6250-01-080-6536
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| FMEE-78-013TYIV | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6250-01-080-6536
Technical Data | NSN 6250-01-080-6536
| Characteristic | Specifications |
|---|---|
| LAMP ACCOMMODATION QUANTITY | 1 |

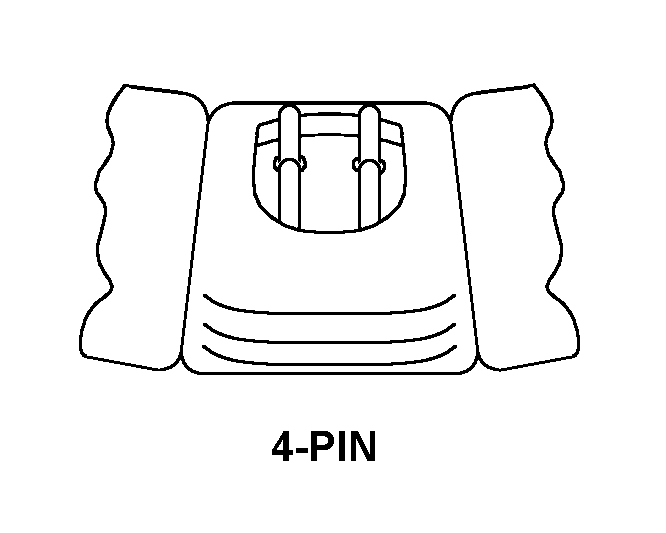

| LAMP BASE STYLE ACCOMMODATED | 18 4-PIN |
| LAMP BASE STYLE | 22D MEDIUM SCREW |
| COMPONENT SWITCH | NOT INCLUDED |
| MAXIMUM VOLTAGE RATING IN VOLTS | 118.0 |
| MAXIMUM CURRENT RATING | 0.340 AMPERES |
| MAXIMUM WATTAGE RATING IN WATTS | 24.0 |
| BODY MATERIAL | PLASTIC OR STEEL |
| SHELL | NOT INCLUDED |
Restrictions/Controls & Freight Information | NSN 6250-01-080-6536
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109700 | LAMP OR LIGHTING FIXTURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | 75 | GSA, FSS/FCSC Washington, DC 20406 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6250-01-080-6536
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
