NSN 6250-01-074-7918 GTES4, GTE-S4, TYPE S-4
Product Details | LAMPHOLDER
6250-01-074-7918 An electric fitting primarily designed to electrically and mechanically accommodate a lamp. It may include an integral switch, transformer, or dropping resistor, provided these items control the lamp only. It does not include a shade, lens, reflector, or other item for modifying illumination. For items designed to mount on a CONDUIT OUTLET, or JUNCTION BOX; see FIXTURE, LIGHTING.
Part Alternates: GTES4, GTE-S4, TYPE S-4, TYPES4, S4, 4008917, 40089-1-7, 40089PC10, 6250-01-074-7918, 01-074-7918, 6250010747918, 010747918
Lighting Fixtures and Lamps | Ballasts, Lampholders, and Starters
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 07 APR 1979 | 01-074-7918 | 16208 ( LAMPHOLDER ) |
Drawings & Photos | NSN 6250-01-074-7918
Demand History | NSN 6250-01-074-7918
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 40089-1-7 | 2024-07-203 | 19 | DIBBS |
| 40089-1-7 | 2024-05-140 | 8 | DIBBS |
| 40089-1-7 | 2024-04-119 | 11 | DIBBS |
| 40089-1-7 | 2023-12-351 | 11 | DIBBS |
| 6250-01-074-7918 | 2023-12-341 | 9 | US |
| 40089-1-7 | 2023-12-339 | 9 | DIBBS |
| 40089-1-7 | 2023-06-177 | 11 | DIBBS |
| 6250-01-074-7918 | 2018-07-193 | 27 | DIBBS |
| 6250-01-074-7918 | 2018-07-185 | 27 | DIBBS |
| 6250-01-074-7918 | 2015-10-279 | 15 | DIBBS |
| 6250-01-074-7918 | 2015-02-35 | 22 | DIBBS |
| 6250-01-074-7918 | 2012-07-187 | 39 | DIBBS |
| 6250-01-074-7918 | 2012-06-173 | 35 | DIBBS |
| S4 | 2012-04-100 | 5 | BH |
| 6250-01-074-7918 | 2010-12-338 | 29 | DIBBS |
Cross Reference | NSN 6250-01-074-7918
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6250-01-074-7918
Technical Data | NSN 6250-01-074-7918
| Characteristic | Specifications |
|---|---|

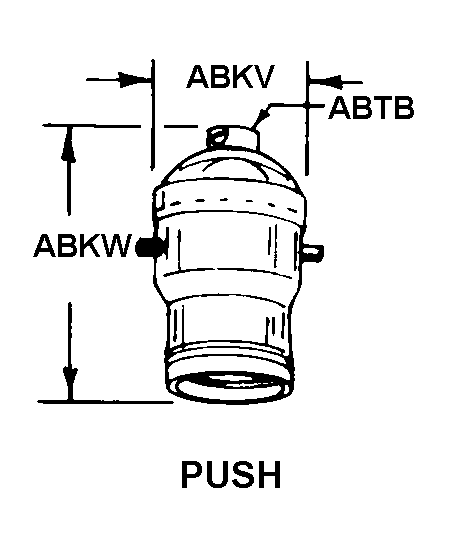

| STYLE DESIGNATOR | A2 PUSH |
| OVERALL HEIGHT | 1.062 INCHES NOMINAL |
| SHELL MATERIAL | STEEL, CORROSION RESISTING |
| VOLTAGE IN VOLTS | 250.0 |
| CURRENT RATING IN AMPS | 8.5 |
| WATTAGE RATING IN WATTS | 1000.0 |
| MOUNTING METHOD | UNTHREADED HOLES |
| MOUNTING DEVICE QUANTITY | 2 |
Restrictions/Controls & Freight Information | NSN 6250-01-074-7918
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109700 | LAMP OR LIGHTING FIXTURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 761 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6250-01-074-7918
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
