NSN 6250-01-035-6266 1120300670, 1120-300670, 01-035-6266
Product Details | LAMPHOLDER
6250-01-035-6266 An electric fitting primarily designed to electrically and mechanically accommodate a lamp. It may include an integral switch, transformer, or dropping resistor, provided these items control the lamp only. It does not include a shade, lens, reflector, or other item for modifying illumination. For items designed to mount on a CONDUIT OUTLET, or JUNCTION BOX; see FIXTURE, LIGHTING.
Part Alternates: 1120300670, 1120-300670, 6250-01-035-6266, 01-035-6266, 6250010356266, 010356266
Lighting Fixtures and Lamps | Ballasts, Lampholders, and Starters
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 12 FEB 1977 | 01-035-6266 | 16208 ( LAMPHOLDER ) |
Drawings & Photos | NSN 6250-01-035-6266
Cross Reference | NSN 6250-01-035-6266
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1120-300670 | S4276 | TOKYO AIRCRAFT INSTRUMENTS CO. LTD |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6250-01-035-6266
Technical Data | NSN 6250-01-035-6266
| Characteristic | Specifications |
|---|---|

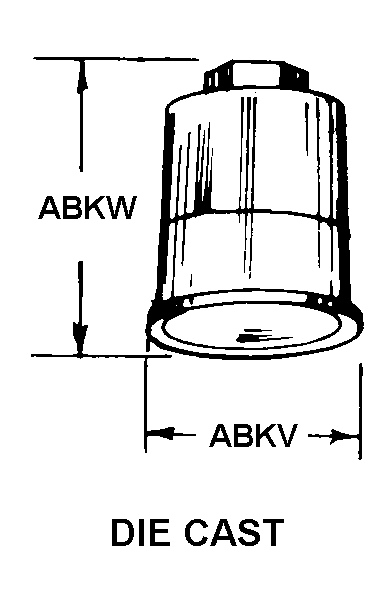

| STYLE DESIGNATOR | A28 DIE CAST |
| OUTSIDE DIAMETER | 0.354 INCHES NOMINAL |
| OVERALL HEIGHT | 0.310 INCHES NOMINAL |
| BODY MATERIAL | BRONZE |
| MANUFACTURERS CODE | S4276 |
| DESIGN CONTROL REFERENCE | 1120-300670 |
Restrictions/Controls & Freight Information | NSN 6250-01-035-6266
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109700 | LAMP OR LIGHTING FIXTURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 761 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6250-01-035-6266
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
