Product Details | LAMP CHANGER

6250-01-030-3485 An item consisting of two or more LAMPHOLDER, which in the event of a lamp failure, is designed to bring another lamp into operating position. It may be manually or automatically operated.

Part Alternates: E/GICP-166, EGICP166, 600100, 600-100, 6250-01-030-3485, 01-030-3485, 6250010303485, 010303485

Lighting Fixtures and Lamps | Ballasts, Lampholders, and Starters

Supply Group (FSG) NSN Assign. NIIN
62 03 NOV 1976 01-030-3485

Drawings & Photos | NSN 6250-01-030-3485


Cross Reference | NSN 6250-01-030-3485

Part Number Cage Code Manufacturer
600-100 56957 AUTOMATED POWER SYSTEMS INC
E/GICP-166 04624 COAST GUARD YARD UPH

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6250-01-030-3485

Technical Data | NSN 6250-01-030-3485

Characteristic Specifications
LAMPHOLDER QUANTITY 6

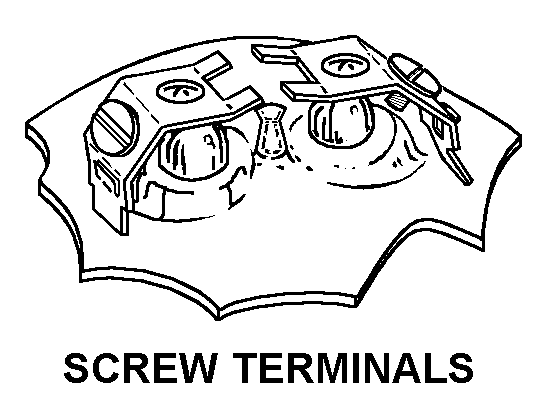

LAMP BASE STYLE 19 SCREW TERMINALS
CURRENT TYPE AC OR DC
FREQUENCY RATING 50.0 HERTZ NOMINAL
VOLTAGE RATING 12.0 VOLTS NOMINAL
OVERALL LENGTH 4.625 INCHES NOMINAL
OVERALL WIDTH 2.625 INCHES NOMINAL
OVERALL HEIGHT 3.500 INCHES NOMINAL
MOUNTING CONFIGURATION FOUR 7/32 IN DIA MOUNTING HOLES
OPERATION METHOD AUTOMATIC

Restrictions/Controls & Freight Information | NSN 6250-01-030-3485

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
No Freight Information

Management | NSN 6250-01-030-3485

Category Code Description
Inventory Account CodesS Stock Fund item managed for the Coast Guard by the respective Inventory Control Point. A funded requisition is required
Inventory Account Codes0 Item not controlled by serial number.
Special Material Content Codes9 Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of SupplyZNCCommanding Officer
USCG Surface Force Logistics Center
Code 028, Mil Stop 25
2401 Hawkins Point Road
Baltimore, MD 21226-5000
AgencyGPU.S. Coast Guard
Service OrganizationCU.S. Coast Guard
ReparabilityC
Acquisition Advice CodesCSERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
