NSN 6250-01-028-4204 10607523, 10-60752-3, 6146
Product Details | LAMP BALLAST
6250-01-028-4204 An item specifically designed for use with fluorescent or mercury vapor lamps and starters to provide a high starting voltage for striking the arc and to stabilize the operating impedance of the circuit in order to maintain the operating current at a steady value.
Part Alternates: 10607523, 10-60752-3, 6146, 61-46, 61461, 61-46-1, 6250-01-028-4204, 01-028-4204, 6250010284204, 010284204
Lighting Fixtures and Lamps | Ballasts, Lampholders, and Starters
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 30 SEP 1976 | 01-028-4204 | 05123 ( BALLAST, LAMP ) |

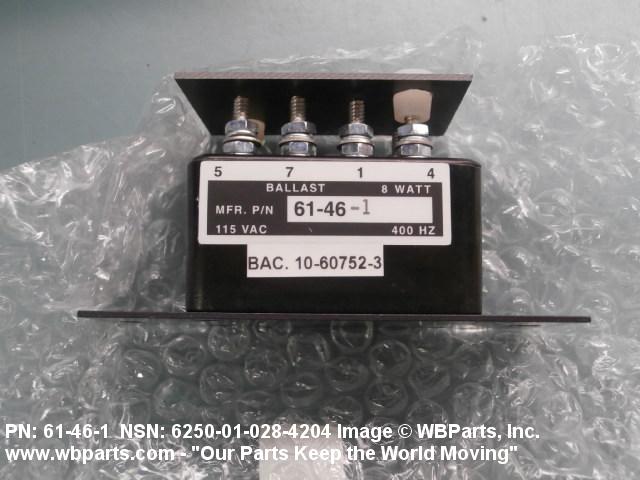

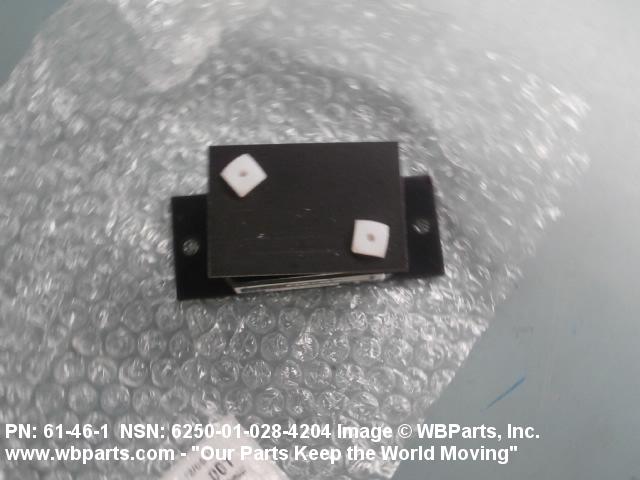

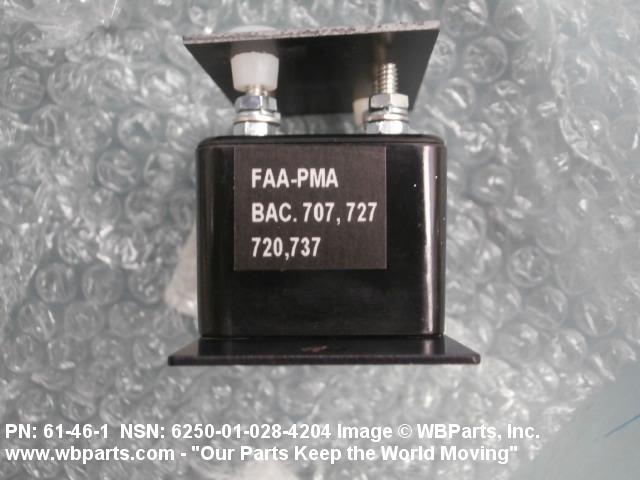

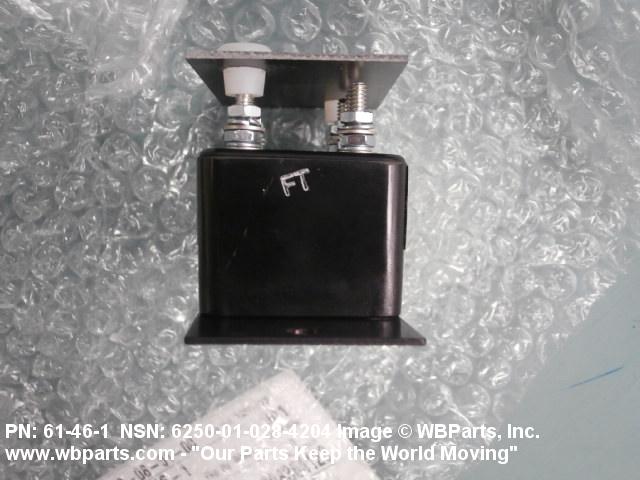

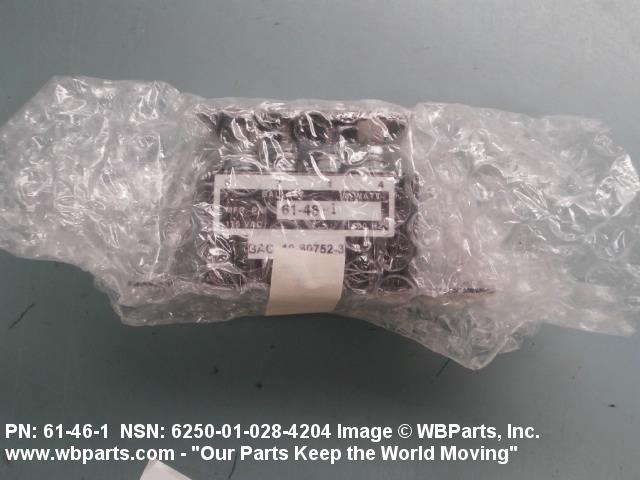

Drawings & Photos | NSN 6250-01-028-4204
Demand History | NSN 6250-01-028-4204
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6250-01-028-4204 | 2018-02-57 | 8 | DIBBS |
| 61461 | 2014-03-64 | 1 | United Kingdom |
| 6250-01-028-4204 | 2013-11-331 | 1 | United Kingdom |
| 10607523 | 2012-06-159 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6250-01-028-4204
Related Products | NSN 6250-01-028-4204
Technical Data | NSN 6250-01-028-4204
| Characteristic | Specifications |
|---|---|
| TERMINAL TYPE | SCREW |
| TERMINAL QUANTITY | 8 |
| TERMINAL LOCATION AND QUANTITY | 8 TOP |
| LAMP WATTAGE RATING IN WATTS | 8.0 |
| LAMP ACCOMMODATION QUANTITY | 2 |
| OVERALL LENGTH | 3.810 INCHES NOMINAL |
| OVERALL WIDTH | 1.530 INCHES NOMINAL |
| OVERALL HEIGHT | 2.000 INCHES NOMINAL |
| BODY LENGTH | 2.280 INCHES NOMINAL |
| CURRENT TYPE | AC |
| FREQUENCY RATING | 60.0 HERTZ NOMINAL |
| VOLTAGE RATING | 115.0 VOLTS NOMINAL |
| STARTING CHARACTERISTIC | RAPID |
| STARTER | NOT REQUIRED |
| POWER FACTOR CHARACTERISTIC | LOW |
| MOUNTING METHOD | HOLES |
| MOUNTING HOLE QUANTITY | 2 |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 3.310 INCHES |
| MANUFACTURERS CODE | 82255 |
| DESIGN CONTROL REFERENCE | 61-46-1 |
Restrictions/Controls & Freight Information | NSN 6250-01-028-4204
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 060630 | BALLASTS LAMP |
| Less than car load rating | ||
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6250-01-028-4204
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
