NSN 6250-00-916-2715 FL8758, 00-916-2715, 009162715
Product Details | LAMPHOLDER RECEPTACLE
6250-00-916-2715 An item specifically designed to electrically and mechanically accommodate lampholders such as Lumiline and series street lighting types which are not designed for direct connection to the associated wiring.
Part Alternates: FL8758, 6250-00-916-2715, 00-916-2715, 6250009162715, 009162715
Lighting Fixtures and Lamps | Ballasts, Lampholders, and Starters
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 26 JAN 1966 | 00-916-2715 | 00528 ( LAMPHOLDER RECEPTACLE ) |
Drawings & Photos | NSN 6250-00-916-2715
Cross Reference | NSN 6250-00-916-2715
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| FL8758 | 15235 | CROUSE-HINDS CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6250-00-916-2715
Technical Data | NSN 6250-00-916-2715
| Characteristic | Specifications |
|---|---|

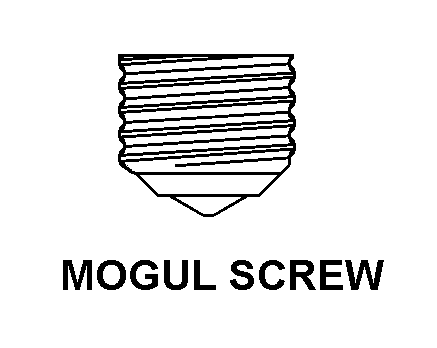

| LAMP BASE STYLE | 22F MOGUL SCREW |
| VOLTAGE RATING | 600.00 VOLTS MAXIMUM |
| ELECTRIC POWER RATING | 1500.0 WATTS MAXIMUM |
| OVERALL LENGTH | 2.000 INCHES NOMINAL |
| OVERALL DIAMETER | 2.180 INCHES NOMINAL |
| MOUNTING CONFIGURATION | TWO HOLES,NO. 10-32 THD SIZE 13/32 IN. DEEP,SPACED 1-1/2 IN. C TO C |
| BODY MATERIAL | PORCELAIN |
| TERMINAL TYPE | TAB, FAST ON |
| TERMINAL QUANTITY | 2 |
| MANUFACTURERS CODE | 15235 |
| DESIGN CONTROL REFERENCE | FL8758 |
Restrictions/Controls & Freight Information | NSN 6250-00-916-2715
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 6250-00-916-2715
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
