Product Details | LAMPHOLDER

6250-00-882-2072 An electric fitting primarily designed to electrically and mechanically accommodate a lamp. It may include an integral switch, transformer, or dropping resistor, provided these items control the lamp only. It does not include a shade, lens, reflector, or other item for modifying illumination. For items designed to mount on a CONDUIT OUTLET, or JUNCTION BOX; see FIXTURE, LIGHTING.

Part Alternates: 202, 2-02, 6250-00-882-2072, 00-882-2072, 6250008822072, 008822072

Lighting Fixtures and Lamps | Ballasts, Lampholders, and Starters

Supply Group (FSG) NSN Assign. NIIN
62 01 JAN 1962 00-882-2072

Drawings & Photos | NSN 6250-00-882-2072


Demand History | NSN 6250-00-882-2072

Part Number Request Date QTY Origin
202 2017-07-192 1 us
2-02 2016-08-237 1

Cross Reference | NSN 6250-00-882-2072

Part Number Cage Code Manufacturer
2-02 72619 DIALIGHT CORP BROOKLYN DIV
2-02 83330 DIALIGHT CORPORATION

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6250-00-882-2072

Technical Data | NSN 6250-00-882-2072

Characteristic Specifications
STYLE DESIGNATOR A42 BAYONET
OUTSIDE DIAMETER 0.531 INCHES NOMINAL
OVERALL HEIGHT 0.937 INCHES NOMINAL
BODY MATERIAL PLASTIC
SHELL MATERIAL STEEL
SHELL SURFACE TREATMENT CADMIUM PLATED
LAMP BASE TYPE ACCOMMODATED MINIATURE BAYONET
VOLTAGE IN VOLTS 125.0
CURRENT RATING IN AMPS 6.0
WATTAGE RATING IN WATTS 75.0
TERMINAL TYPE WIRE LEAD
TERMINAL QUANTITY 2
WIRING PROVISION LENGTH 6.000 INCHES NOMINAL
MOUNTING FEATURE TYPE SURFACE
MOUNTING METHOD CLIP
MOUNTING MATERIAL STEEL
MOUNTING DEVICE QUANTITY 1

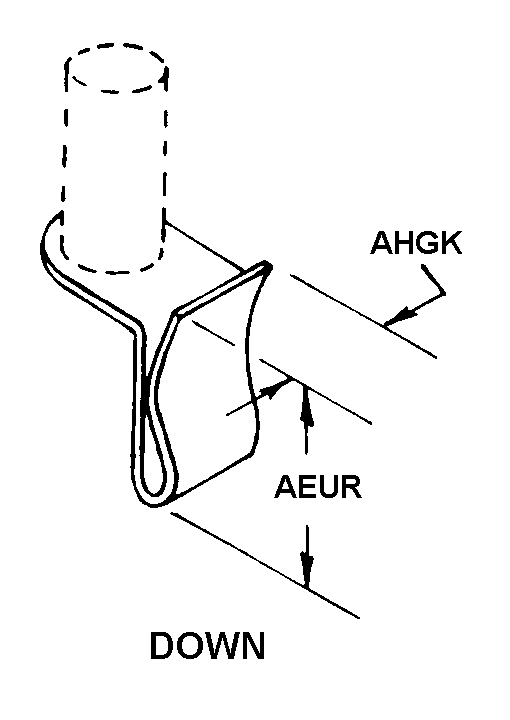

MOUNTING CLIP STYLE C11 DOWN
CLIP HEIGHT 0.531 INCHES NOMINAL
CLIP WIDTH 0.500 INCHES NOMINAL
HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION NOT RATED
MANUFACTURERS CODE 72619
DESIGN CONTROL REFERENCE 2-02

Restrictions/Controls & Freight Information | NSN 6250-00-882-2072

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
No Freight Information
