NSN 6250-00-869-3716 2577R, 25-77R, 00-869-3716
Product Details | LAMPHOLDER
6250-00-869-3716 An electric fitting primarily designed to electrically and mechanically accommodate a lamp. It may include an integral switch, transformer, or dropping resistor, provided these items control the lamp only. It does not include a shade, lens, reflector, or other item for modifying illumination. For items designed to mount on a CONDUIT OUTLET, or JUNCTION BOX; see FIXTURE, LIGHTING.
Part Alternates: 2577R, 25-77R, 6250-00-869-3716, 00-869-3716, 6250008693716, 008693716
Lighting Fixtures and Lamps | Ballasts, Lampholders, and Starters
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
62 | 00-869-3716 | 16208 ( LAMPHOLDER ) |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 6250-00-869-3716
Related Products | NSN 6250-00-869-3716
Technical Data | NSN 6250-00-869-3716
Characteristic | Specifications |
---|---|
STYLE DESIGNATOR | A38 CANDELABRA |
OUTSIDE DIAMETER | 0.250 INCHES NOMINAL |
OVERALL HEIGHT | 0.406 INCHES NOMINAL |
BODY MATERIAL | STEEL |
SHELL MATERIAL | STEEL |
SHELL SURFACE TREATMENT | ANY ACCEPTABLE |
LAMP BASE TYPE ACCOMMODATED | MIDGET GROOVED |
VOLTAGE IN VOLTS | 2.5 |
CURRENT RATING IN AMPS | NOT RATED |
WATTAGE RATING IN WATTS | NOT RATED |
TERMINAL TYPE | SOLDER LUG |
TERMINAL QUANTITY | 2 |
MOUNTING FEATURE TYPE | SURFACE |
MOUNTING METHOD | BRACKET |
MOUNTING MATERIAL | STEEL, COLD ROLLED |
MOUNTING DEVICE QUANTITY | 1 |

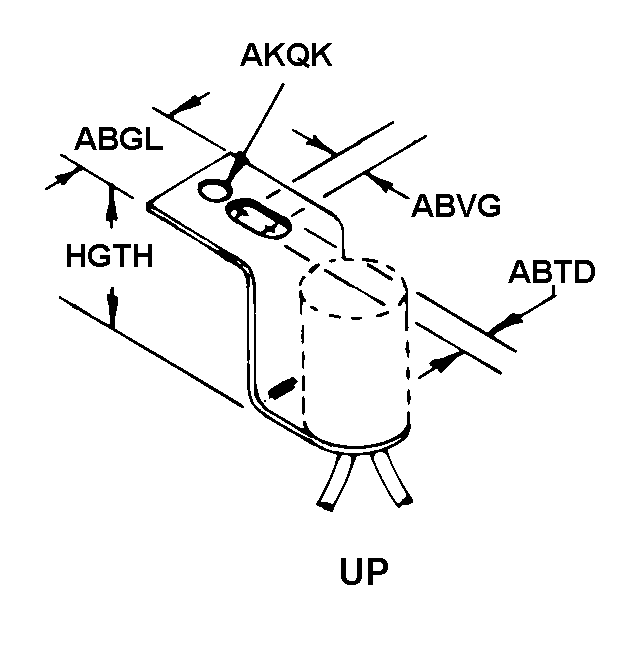

MOUNTING BRACKET STYLE | B10 UP |
WIDTH | 0.250 INCHES NOMINAL |
BRACKET MOUNTING HOLE DIAMETER | 0.125 INCHES NOMINAL |
HEIGHT | 0.312 INCHES NOMINAL |
HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | NOT RATED |
Restrictions/Controls & Freight Information | NSN 6250-00-869-3716
Category | Code | Description |
---|---|---|
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Category | Code | Description |
---|---|---|
No Freight Information |
