NSN 6250-00-295-2303 2596, 34635, 454
Product Details | LAMPHOLDER ADAPTER
6250-00-295-2303 An electrical fitting designed to establish the necessary accommodations to connect a single-unit lampholder to two or more lampbases; to a lampbase of a different size; or to a lampbase of the same size in order to provide switching facilities or an adjustable angle. Does not include ADAPTER, CONNECTOR. For items which also have facilities for accommodating connectors, use ADAPTER, CONNECTOR TO LAMPBASE.
Part Alternates: 2596, 34635, 454, 6250-00-295-2303, 00-295-2303, 6250002952303, 002952303
Lighting Fixtures and Lamps | Ballasts, Lampholders, and Starters
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
62 | 01 JAN 1963 | 00-295-2303 | 05764 ( ADAPTER, LAMPHOLDER ) |
Demand History | NSN 6250-00-295-2303
Part Number | Request Date | QTY | Origin |
---|---|---|---|
34635 | 2011-10-299 | 4 | United States |
34635 | 2011-10-297 | 4 | United States |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 6250-00-295-2303
Related Products | NSN 6250-00-295-2303
Technical Data | NSN 6250-00-295-2303
Characteristic | Specifications |
---|---|
LAMP ACCOMMODATION QUANTITY | 1 |

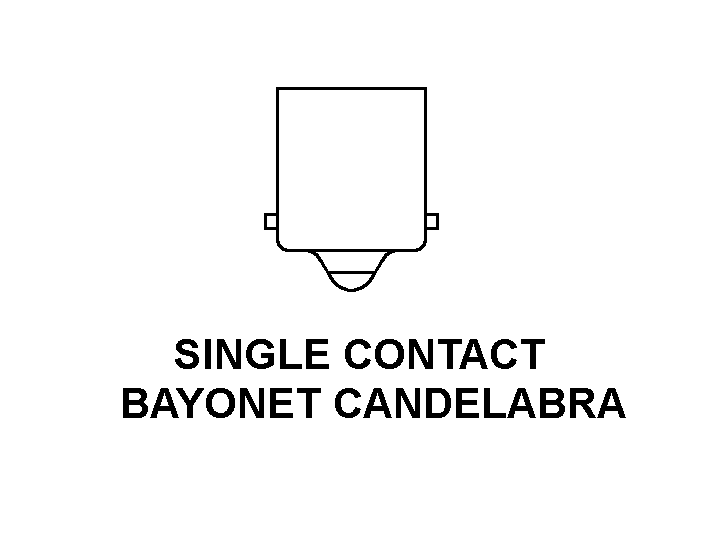

LAMP BASE STYLE ACCOMMODATED | 7A SINGLE CONTACT BAYONET CANDELABRA |

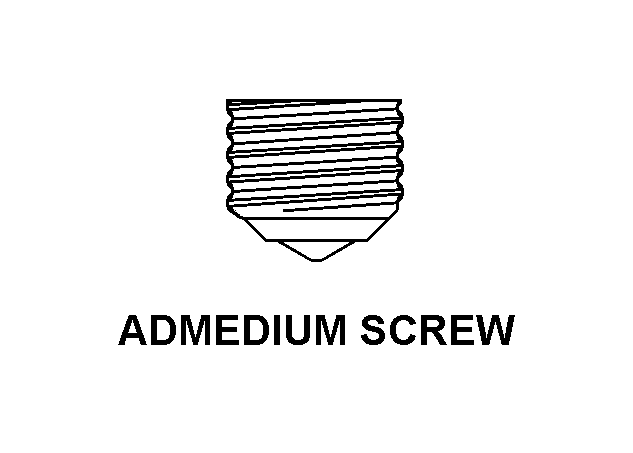

LAMP BASE STYLE | 22E ADMEDIUM SCREW |
COMPONENT SWITCH | NOT INCLUDED |
MAXIMUM VOLTAGE RATING IN VOLTS | 30.0 |
MAXIMUM CURRENT RATING | 10.000 AMPERES |
MAXIMUM WATTAGE RATING IN WATTS | 100.0 |
BODY MATERIAL | CERAMIC |
SHELL | INCLUDED |
SHELL MATERIAL | BRASS |
SHELL SURFACE TREATMENT | NICKEL PLATED |
Restrictions/Controls & Freight Information | NSN 6250-00-295-2303
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | U | Precious metal type is unknown |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
NMF Description | 061680 | ELEC WIRING PLUGS ETC |
Less than car load rating | ||
Less than truck load rating | W | Rating Variable |
Water commodity Code | 658 | unknown |
Originating Activity Code | XX | |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
