Product Details | LAMPHOLDER

6250-00-284-0431 An electric fitting primarily designed to electrically and mechanically accommodate a lamp. It may include an integral switch, transformer, or dropping resistor, provided these items control the lamp only. It does not include a shade, lens, reflector, or other item for modifying illumination. For items designed to mount on a CONDUIT OUTLET, or JUNCTION BOX; see FIXTURE, LIGHTING.

Part Alternates: 5464, 7454, 6250-00-284-0431, 00-284-0431, 6250002840431, 002840431

Lighting Fixtures and Lamps | Ballasts, Lampholders, and Starters

Supply Group (FSG) NSN Assign. NIIN
62 01 JAN 1963 00-284-0431

Drawings & Photos | NSN 6250-00-284-0431


Cross Reference | NSN 6250-00-284-0431

Part Number Cage Code Manufacturer
5464 71183 BRYANT ELECTRIC
7454 74545 HUBBELL INC WIRING DEVICE DIV

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6250-00-284-0431

Technical Data | NSN 6250-00-284-0431

Characteristic Specifications

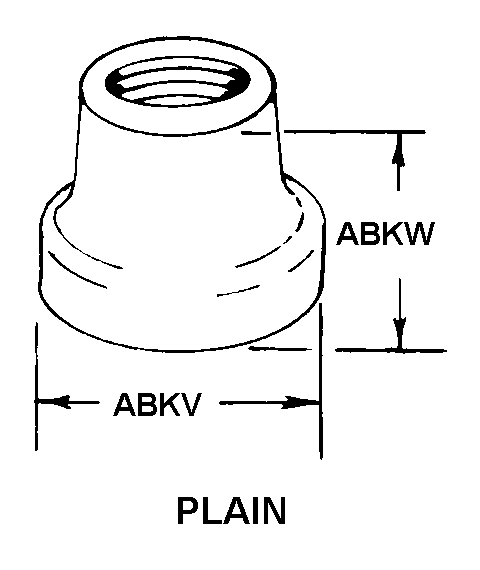

STYLE DESIGNATOR A25 PLAIN
OUTSIDE DIAMETER 0.562 INCHES NOMINAL
OVERALL HEIGHT 2.250 INCHES NOMINAL
BODY MATERIAL PLASTIC
SHELL MATERIAL BRASS
SHELL SURFACE TREATMENT NICKEL PLATED
LAMP BASE TYPE ACCOMMODATED MEDIUM SCREW
VOLTAGE IN VOLTS 250.0
CURRENT RATING IN AMPS NOT RATED
WATTAGE RATING IN WATTS 660.0
TERMINAL TYPE INSULATION PIERCING
TERMINAL QUANTITY 2
MOUNTING FEATURE TYPE SURFACE
MOUNTING METHOD HOOK OR THREADED CATCH
MOUNTING MATERIAL PLASTIC
MOUNTING DEVICE QUANTITY 1
HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION WEATHERPROOF
SPECIAL FEATURES PROVIDED W/MTG CAP STRAIGHT TYPE

Restrictions/Controls & Freight Information | NSN 6250-00-284-0431

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 109700 LAMP OR LIGHTING FIXTURES
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 761 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity H Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 6250-00-284-0431

Category Code Description
Cognizance Codes9GNavy-owned stocks of defense general material
Naval Inventory Control Point, Mechanicsburg
Source of SupplyS9GDefense Supply Center Richmond
Richmond, VA 23297
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesYTERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
A
EA : Each
