Product Details | LAMPHOLDER

6250-00-283-9778 An electric fitting primarily designed to electrically and mechanically accommodate a lamp. It may include an integral switch, transformer, or dropping resistor, provided these items control the lamp only. It does not include a shade, lens, reflector, or other item for modifying illumination. For items designed to mount on a CONDUIT OUTLET, or JUNCTION BOX; see FIXTURE, LIGHTING.

Part Alternates: PA, 6250-00-283-9778, 00-283-9778, 6250002839778, 002839778

Lighting Fixtures and Lamps | Ballasts, Lampholders, and Starters

Supply Group (FSG) NSN Assign. NIIN
62 01 JAN 1963 00-283-9778

Drawings & Photos | NSN 6250-00-283-9778


Cross Reference | NSN 6250-00-283-9778

Part Number Cage Code Manufacturer
PA 04009 COOPER INDUSTRIES INC COOPER DISTRIBUTION EQUIPMENT DIV

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6250-00-283-9778

Technical Data | NSN 6250-00-283-9778

Characteristic Specifications

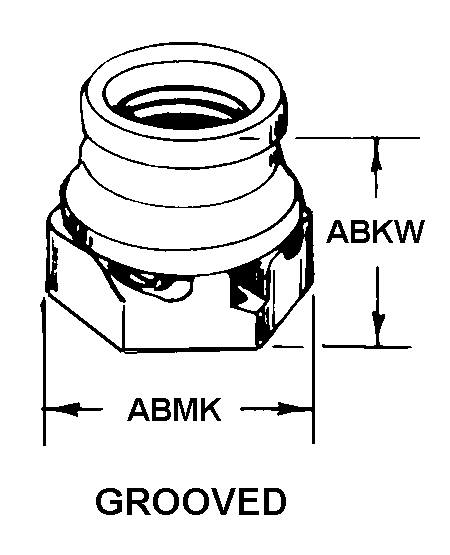

STYLE DESIGNATOR A23 GROOVED
OVERALL HEIGHT 2.375 INCHES NOMINAL
OVERALL WIDTH 1.625 INCHES NOMINAL
BODY MATERIAL BRASS
SHELL MATERIAL PORCELAIN
SHELL SURFACE TREATMENT ANY ACCEPTABLE
LAMP BASE TYPE ACCOMMODATED MEDIUM SCREW
VOLTAGE IN VOLTS 250.0
CURRENT RATING IN AMPS NOT RATED
WATTAGE RATING IN WATTS 600.0
TERMINAL TYPE SCREW
TERMINAL QUANTITY 2
MOUNTING FEATURE TYPE SURFACE
MOUNTING METHOD THREADED HOLES
MOUNTING DEVICE QUANTITY 1
HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION NOT RATED
ACCESSORY MOUNTING PROVISION GROOVE
SPECIAL FEATURES CAP ATTACHES

Restrictions/Controls & Freight Information | NSN 6250-00-283-9778

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
No Freight Information
