NSN 6250-00-270-4229 AH114, HF1443, P042328
Product Details | LAMPHOLDER
6250-00-270-4229 An electric fitting primarily designed to electrically and mechanically accommodate a lamp. It may include an integral switch, transformer, or dropping resistor, provided these items control the lamp only. It does not include a shade, lens, reflector, or other item for modifying illumination. For items designed to mount on a CONDUIT OUTLET, or JUNCTION BOX; see FIXTURE, LIGHTING.
Part Alternates: AH114, HF1443, P042328, 604, 6250-00-270-4229, 00-270-4229, 6250002704229, 002704229
Lighting Fixtures and Lamps | Ballasts, Lampholders, and Starters
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 01 JAN 1963 | 00-270-4229 | 16208 ( LAMPHOLDER ) |
Drawings & Photos | NSN 6250-00-270-4229
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6250-00-270-4229
Technical Data | NSN 6250-00-270-4229
| Characteristic | Specifications |
|---|---|

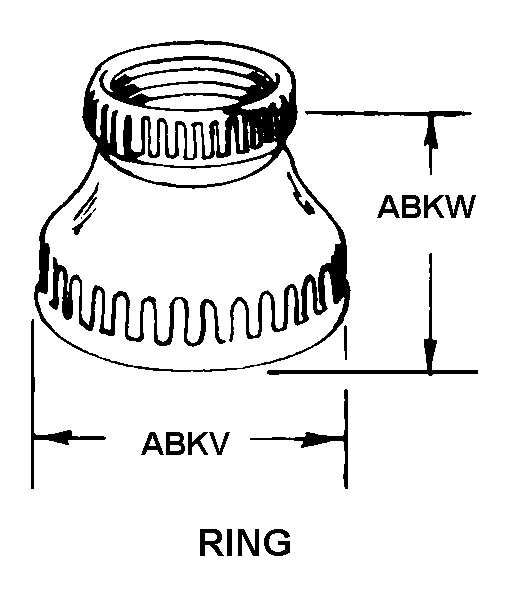

| STYLE DESIGNATOR | A27 RING |
| OUTSIDE DIAMETER | 2.500 INCHES NOMINAL |
| OVERALL HEIGHT | 2.187 INCHES NOMINAL |
| BODY MATERIAL | RUBBER |
| LAMP BASE TYPE ACCOMMODATED | MEDIUM SCREW |
| VOLTAGE IN VOLTS | 600.0 |
| CURRENT RATING IN AMPS | NOT RATED |
| WATTAGE RATING IN WATTS | 660.0 |
| TERMINAL TYPE | WIRE LEAD |
| TERMINAL QUANTITY | 2 |
| WIRING PROVISION LENGTH | 4.500 INCHES NOMINAL |
| MOUNTING FEATURE TYPE | SURFACE |
| MOUNTING METHOD | UNTHREADED HOLES |
| MOUNTING DEVICE QUANTITY | 2 |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | WEATHERPROOF |
Restrictions/Controls & Freight Information | NSN 6250-00-270-4229
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109700 | LAMP OR LIGHTING FIXTURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 761 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6250-00-270-4229
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
