NSN 6250-00-266-7518 SCD2573GGR0UP2, 00-266-7518, 002667518
Product Details | LAMPHOLDER
6250-00-266-7518 An electric fitting primarily designed to electrically and mechanically accommodate a lamp. It may include an integral switch, transformer, or dropping resistor, provided these items control the lamp only. It does not include a shade, lens, reflector, or other item for modifying illumination. For items designed to mount on a CONDUIT OUTLET, or JUNCTION BOX; see FIXTURE, LIGHTING.
Part Alternates: SCD2573GGR0UP2, 6250-00-266-7518, 00-266-7518, 6250002667518, 002667518
Lighting Fixtures and Lamps | Ballasts, Lampholders, and Starters
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 01 JAN 1963 | 00-266-7518 | 16208 ( LAMPHOLDER ) |
Drawings & Photos | NSN 6250-00-266-7518
Cross Reference | NSN 6250-00-266-7518
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SCD2573GGR0UP2 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6250-00-266-7518
Technical Data | NSN 6250-00-266-7518
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A38 CANDELABRA |
| OUTSIDE DIAMETER | 0.437 INCHES NOMINAL |
| OVERALL HEIGHT | 0.750 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| SHELL MATERIAL | STEEL |
| LAMP BASE TYPE ACCOMMODATED | MINIATURE BAYONET |
| VOLTAGE IN VOLTS | 125.0 |
| CURRENT RATING IN AMPS | NOT RATED |
| WATTAGE RATING IN WATTS | 75.0 |
| TERMINAL TYPE | TAB, SOLDER LUG |
| TERMINAL QUANTITY | 2 |
| MOUNTING FEATURE TYPE | SURFACE |
| MOUNTING METHOD | BRACKET |
| MOUNTING DEVICE QUANTITY | 1 |

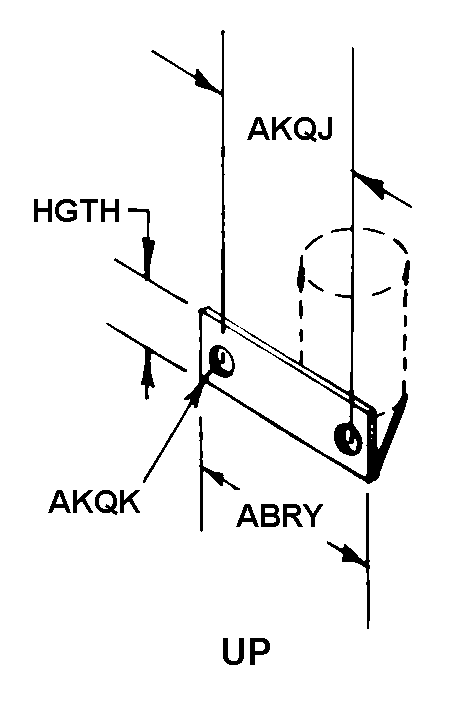

| MOUNTING BRACKET STYLE | B12 UP |
| LENGTH | 0.500 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN BRACKET MOUNTING HOLES | 0.250 INCHES NOMINAL |
| BRACKET MOUNTING HOLE DIAMETER | 0.120 INCHES NOMINAL |
| HEIGHT | 0.344 INCHES NOMINAL |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | NOT RATED |
| SPECIAL FEATURES | LAMP BRACKETSSHALL BE CUTOFF TO SUIT |
Restrictions/Controls & Freight Information | NSN 6250-00-266-7518
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109700 | LAMP OR LIGHTING FIXTURES |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 761 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
