Product Details | LAMPHOLDER

6250-00-257-5212 An electric fitting primarily designed to electrically and mechanically accommodate a lamp. It may include an integral switch, transformer, or dropping resistor, provided these items control the lamp only. It does not include a shade, lens, reflector, or other item for modifying illumination. For items designed to mount on a CONDUIT OUTLET, or JUNCTION BOX; see FIXTURE, LIGHTING.

Part Alternates: 7121001501, 71210015-01, 6250-00-257-5212, 00-257-5212, 6250002575212, 002575212

Lighting Fixtures and Lamps | Ballasts, Lampholders, and Starters

Supply Group (FSG) NSN Assign. NIIN
62 29 JUN 1973 00-257-5212

Drawings & Photos | NSN 6250-00-257-5212


Cross Reference | NSN 6250-00-257-5212

Part Number Cage Code Manufacturer
71210015-01 1K426 MOOG INC. DBA MOOG COMPONENTS GROUP
71210015-01 99932 MOOG INC. DBA MOOG COMPONENTS GROUP

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6250-00-257-5212

Technical Data | NSN 6250-00-257-5212

Characteristic Specifications
STYLE DESIGNATOR A38 CANDELABRA
OUTSIDE DIAMETER 0.437 INCHES NOMINAL
OVERALL HEIGHT 0.812 INCHES NOMINAL
BODY MATERIAL STEEL, CORROSION RESISTING
SHELL MATERIAL STEEL, CORROSION RESISTING
SHELL SURFACE TREATMENT ANY ACCEPTABLE
LAMP BASE TYPE ACCOMMODATED MINIATURE BAYONET
CURRENT RATING IN AMPS NOT RATED
WATTAGE RATING IN WATTS NOT RATED
TERMINAL TYPE SOLDER LUG
TERMINAL QUANTITY 2
MOUNTING METHOD BRACKET
MOUNTING MATERIAL STEEL, CORROSION RESISTING
MOUNTING DEVICE QUANTITY 1

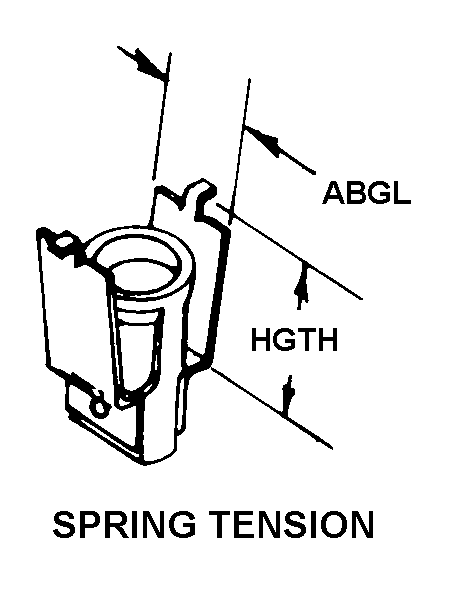

MOUNTING BRACKET STYLE B21 SPRING TENSION
WIDTH 0.437 INCHES NOMINAL
HEIGHT 1.125 INCHES NOMINAL
HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION ANY ACCEPTABLE
MANUFACTURERS CODE 1K426
DESIGN CONTROL REFERENCE 71210015-01

Restrictions/Controls & Freight Information | NSN 6250-00-257-5212

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 109700 LAMP OR LIGHTING FIXTURES
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 761 unknown
Originating Activity Code HH Navy ICP
Mechanicsburg, PA 17055-0788
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity H Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 6250-00-257-5212

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
Y
EA : Each
