NSN 6250-00-174-2218 H3660A, 612, 6-12
Product Details | LAMPHOLDER
6250-00-174-2218 An electric fitting primarily designed to electrically and mechanically accommodate a lamp. It may include an integral switch, transformer, or dropping resistor, provided these items control the lamp only. It does not include a shade, lens, reflector, or other item for modifying illumination. For items designed to mount on a CONDUIT OUTLET, or JUNCTION BOX; see FIXTURE, LIGHTING.
Part Alternates: H3660A, 612, 6-12, 6250-00-174-2218, 00-174-2218, 6250001742218, 001742218
Lighting Fixtures and Lamps | Ballasts, Lampholders, and Starters
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 01 JAN 1963 | 00-174-2218 | 16208 ( LAMPHOLDER ) |
Drawings & Photos | NSN 6250-00-174-2218
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6250-00-174-2218
Technical Data | NSN 6250-00-174-2218
| Characteristic | Specifications |
|---|---|

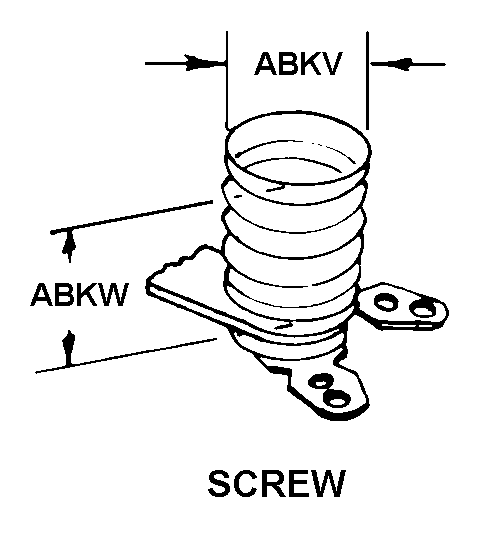

| STYLE DESIGNATOR | A36 SCREW |
| OUTSIDE DIAMETER | 0.500 INCHES NOMINAL |
| OVERALL HEIGHT | 0.625 INCHES NOMINAL |
| BODY MATERIAL | FIBER |
| SHELL MATERIAL | BRASS |
| SHELL SURFACE TREATMENT | NICKEL PLATED |
| LAMP BASE TYPE ACCOMMODATED | CANDELABRA SCREW |
| VOLTAGE IN VOLTS | 125.0 |
| CURRENT RATING IN AMPS | NOT RATED |
| WATTAGE RATING IN WATTS | 75.0 |
| TERMINAL TYPE | TAB, SOLDER LUG |
| TERMINAL QUANTITY | 2 |
| MOUNTING FEATURE TYPE | SURFACE |
| MOUNTING METHOD | BRACKET |
| MOUNTING MATERIAL | STEEL |
| MOUNTING DEVICE QUANTITY | 1 |

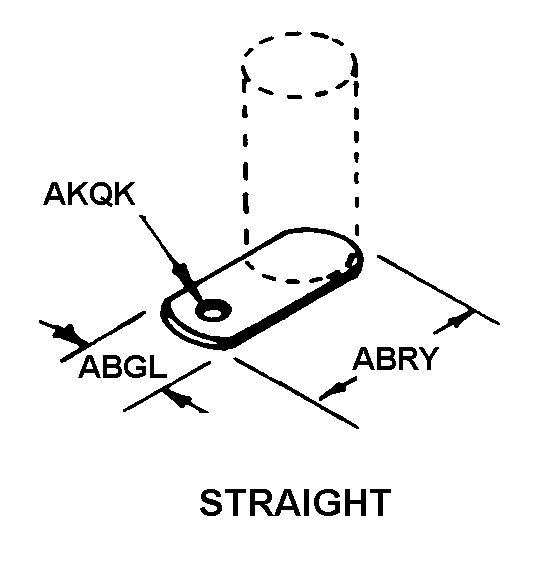

| MOUNTING BRACKET STYLE | B17 STRAIGHT |
| WIDTH | 0.437 INCHES NOMINAL |
| LENGTH | 0.875 INCHES NOMINAL |
| BRACKET MOUNTING HOLE DIAMETER | 0.156 INCHES NOMINAL |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | NOT RATED |
Restrictions/Controls & Freight Information | NSN 6250-00-174-2218
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 6250-00-174-2218
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9G | Defense Supply Center Richmond Richmond, VA 23297 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
