Product Details | LAMPHOLDER

6250-00-158-9043 An electric fitting primarily designed to electrically and mechanically accommodate a lamp. It may include an integral switch, transformer, or dropping resistor, provided these items control the lamp only. It does not include a shade, lens, reflector, or other item for modifying illumination. For items designed to mount on a CONDUIT OUTLET, or JUNCTION BOX; see FIXTURE, LIGHTING.

Part Alternates: 2354, 481112PC1, 6250-00-158-9043, 00-158-9043, 6250001589043, 001589043

Lighting Fixtures and Lamps | Ballasts, Lampholders, and Starters

Supply Group (FSG) NSN Assign. NIIN
62 01 JAN 1963 00-158-9043

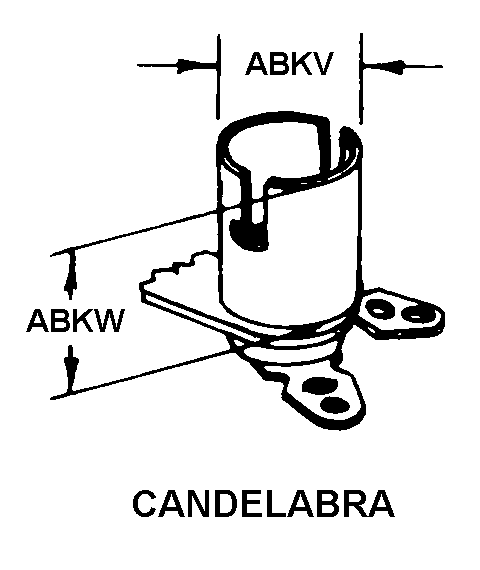

Drawings & Photos | NSN 6250-00-158-9043


Cross Reference | NSN 6250-00-158-9043

Part Number Cage Code Manufacturer
2354 13445 COLE HERSEE COMPANY
481112PC1 10001 NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6250-00-158-9043

Technical Data | NSN 6250-00-158-9043

Characteristic Specifications
STYLE DESIGNATOR A38 CANDELABRA
OUTSIDE DIAMETER 0.687 INCHES NOMINAL
OVERALL HEIGHT 1.062 INCHES NOMINAL
BODY MATERIAL PLASTIC
SHELL MATERIAL STEEL
LAMP BASE TYPE ACCOMMODATED DOUBLE CONTACT BAYONET CANDELABRA
VOLTAGE IN VOLTS 125.0
CURRENT RATING IN AMPS NOT RATED
WATTAGE RATING IN WATTS 75.0
TERMINAL TYPE SCREW
TERMINAL QUANTITY 2
HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION NOT RATED

Restrictions/Controls & Freight Information | NSN 6250-00-158-9043

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 109700 LAMP OR LIGHTING FIXTURES
Less than car load rating W Rating Variable
Less than truck load rating W Rating Variable
Water commodity Code 761 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity H Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 6250-00-158-9043

Category Code Description
Cognizance Codes9GNavy-owned stocks of defense general material
Naval Inventory Control Point, Mechanicsburg
Source of SupplyS9GDefense Supply Center Richmond
Richmond, VA 23297
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
