Product Details | INCANDESCENT LAMP

6240-01-499-4900 An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern.

Part Alternates: MS245131163, MS24513-1163, 6240-01-499-4900, 01-499-4900, 6240014994900, 014994900

Lighting Fixtures and Lamps | Electric Lamps

Supply Group (FSG) NSN Assign. NIIN
62 24 JUL 2002 01-499-4900

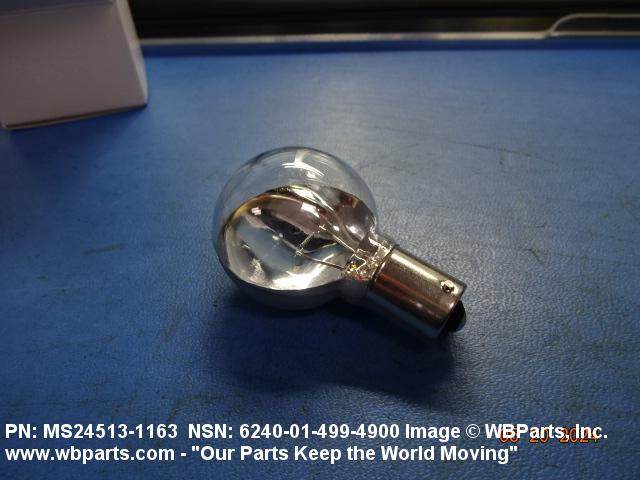

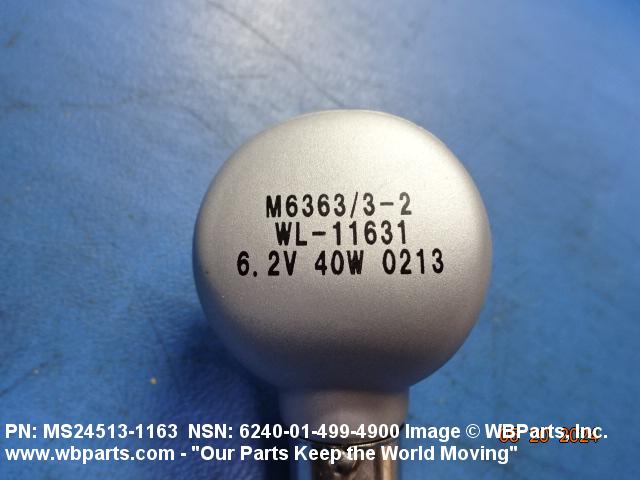

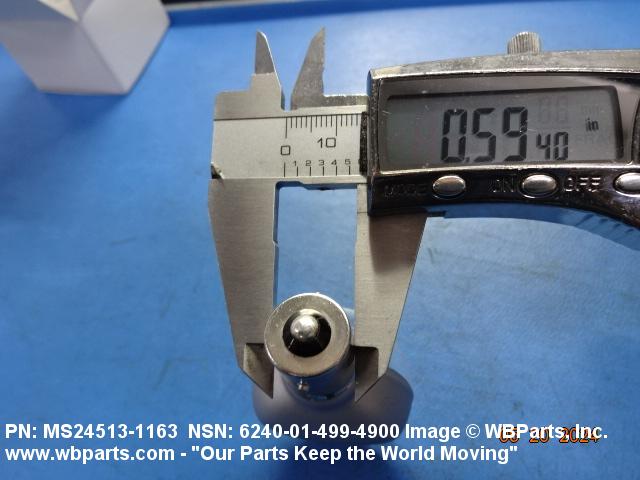

Drawings & Photos | NSN 6240-01-499-4900


Demand History | NSN 6240-01-499-4900

Part Number Request Date QTY Origin
6240-01-499-4900 2024-06-156 50 United States
6240-01-499-4900 2024-05-124 20 United States
MS245131163 2023-12-340 600 US
6240-01-499-4900 2009-09-253 25 US

Cross Reference | NSN 6240-01-499-4900

Part Number Cage Code Manufacturer
MS24513-1163 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6240-01-499-4900

Technical Data | NSN 6240-01-499-4900

Characteristic Specifications
BASE STYLE A20A SINGLE CONTACT BAYONET CANDELABRA INDEXING
BULB STYLE B12 GG
BULB DESIGNATOR GG-12B1

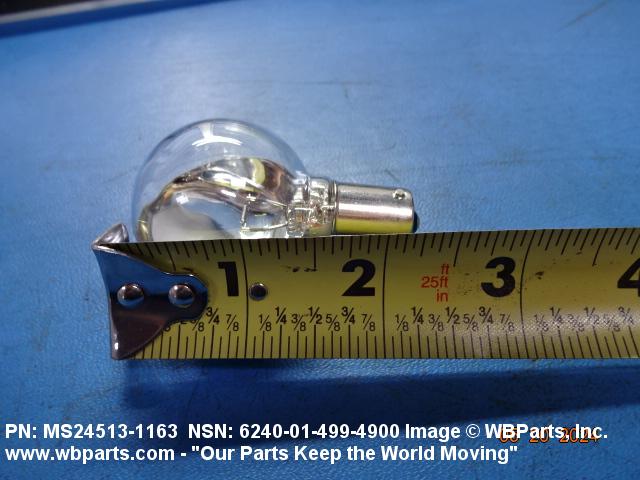

OVERALL LENGTH 2.311 INCHES MINIMUM AND 2.504 INCHES MAXIMUM
BULB LIGHT TRANSMISSION CHARACTERISTIC TRANSPARENT
LIGHT INTENSITY DISTRIBUTION FEATURE REFLECTIVE SIDE
EMITTED LIGHT CHARACTERISTIC COLORLESS
FILAMENT DESIGNATION C-6
WATTAGE RATING 43.000 WATTS
VOLTAGE RATING 6.200 VOLTS NOMINAL
CURRENT RATING FOR WHICH DESIGNED 6.930 AMPERES MAXIMUM
LIGHT OUTPUT RATING 300.000 BEAM CANDLEPOWER NOMINAL SINGLE RATING
RATED AVERAGE LIFE HOURS
AVERAGE LIFE RATING IN HOURS 300.0
BURNING POSITION ANY ACCEPTABLE
FILAMENT HEAVY DUTY SERVICE RATING ROUGH SERVICE
LIGHT CENTER LENGTH 1.250 INCHES NOMINAL
MANUFACTURERS CODE 96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MS24513-1163

Restrictions/Controls & Freight Information | NSN 6240-01-499-4900

Category Code Description
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
No Freight Information
