NSN 6240-01-498-4719 72 DP8 CLR, 72DP8CLR, 01-498-4719
Product Details | INCANDESCENT LAMP
6240-01-498-4719 An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern.
Part Alternates: 72 DP8 CLR, 72DP8CLR, 6240-01-498-4719, 01-498-4719, 6240014984719, 014984719
Lighting Fixtures and Lamps | Electric Lamps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 27 JUN 2002 | 01-498-4719 | 00727 ( LAMP, INCANDESCENT ) |
Drawings & Photos | NSN 6240-01-498-4719
Demand History | NSN 6240-01-498-4719
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6240-01-498-4719 | 2014-10-300 | 1 | DIBBS |
| 6240-01-498-4719 | 2014-10-287 | 1 | DIBBS |
| 6240-01-498-4719 | 2014-05-150 | 2 | DIBBS |
| 6240-01-498-4719 | 2014-05-139 | 2 | DIBBS |
| 6240-01-498-4719 | 2012-05-135 | 1 | DIBBS |
| 6240-01-498-4719 | 2012-02-36 | 10 | DIBBS |
Cross Reference | NSN 6240-01-498-4719
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 72 DP8 CLR | 46576 | PERKO INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6240-01-498-4719
Related Products | NSN 6240-01-498-4719
Technical Data | NSN 6240-01-498-4719
| Characteristic | Specifications |
|---|---|
| BASE STYLE | A47A MINIATURE CAP CONICAL END |

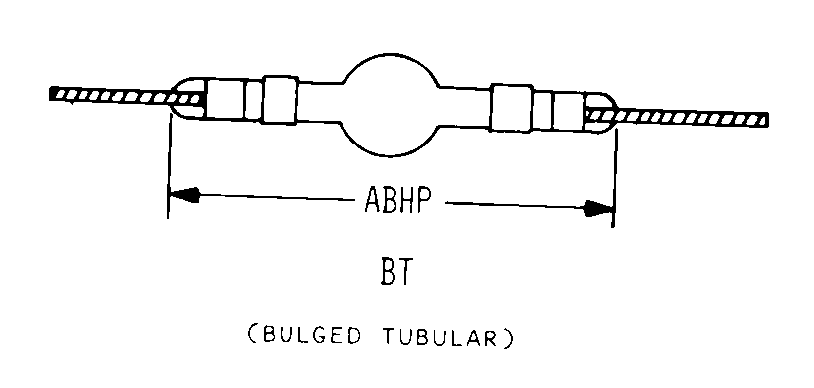

| BULB STYLE | B33 BT |
| BULB DESIGNATOR | FESTOON BULB |
| OVERALL LENGTH | 1.125 INCHES NOMINAL |
| BULB DIAMETER | 0.375 INCHES NOMINAL |
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT |
| EMITTED LIGHT CHARACTERISTIC | COLORLESS |
| WATTAGE RATING | 8.000 WATTS |
| VOLTAGE RATING | 24.000 VOLTS NOMINAL |
| CURRENT RATING FOR WHICH DESIGNED | 0.350 AMPERES NOMINAL |
| LIGHT OUTPUT RATING | NOT RATED SINGLE RATING |
| RATED AVERAGE LIFE | NOT RATED |
| BURNING POSITION | ANY ACCEPTABLE |
| FILAMENT HEAVY DUTY SERVICE RATING | NOT RATED |
| SPECIAL FEATURES | BASE AND BULB STYLE IS A DOUBLE ENDED FESTOON BULB WITH NICKEL PLATED BRASS CAPS WHICH SITS BETWEEN TWO PRESSURE POINTS; PACKAGE CONSISTS OF 5 CARDS WITH 2 BULBS PER CARD |
Restrictions/Controls & Freight Information | NSN 6240-01-498-4719
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109550 | LAMPS(BULBS) ELEC INCANDESCENT NOI |
| Less than car load rating | ||
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 761 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6240-01-498-4719
Navy
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Operational Test Code | 0 | Items of supply which when properly packaged and placed in storage, do not require the performance of special procedures while in storage, nor prior to issue, and for which it has been determined that existing Care in Stores quality control procedures are adequate. |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
