Product Details | MERCURY VAPOR LAMP

6240-01-495-4211 An item which produces light by an electric arc between two electrodes in an ionized mercury vapor atmosphere.

Part Alternates: GPH357T5L4UVC2, 6240-01-495-4211, 01-495-4211, 6240014954211, 014954211

Lighting Fixtures and Lamps | Electric Lamps

Supply Group (FSG) NSN Assign. NIIN
62 15 MAR 2002 01-495-4211

Drawings & Photos | NSN 6240-01-495-4211


Cross Reference | NSN 6240-01-495-4211

Part Number Cage Code Manufacturer
GPH357T5L4UVC2 2G070 ATLANTIC ULTRAVIOLET CORPORATION

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6240-01-495-4211

Technical Data | NSN 6240-01-495-4211

Characteristic Specifications

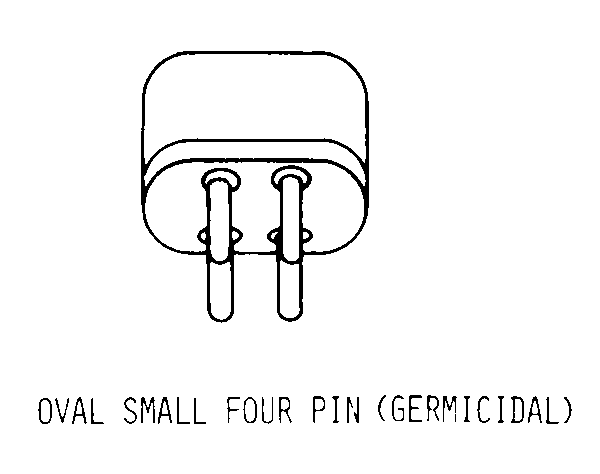

BASE STYLE A73 OVAL SMALL FOUR PIN
TERMINAL TYPE AND QUANTITY 4 PIN
BULB STYLE B27 T
BULB DESIGNATOR T-5L
OVERALL LENGTH 14.062 INCHES NOMINAL
BULB LIGHT TRANSMISSION CHARACTERISTIC TRANSLUCENT
EMITTED LIGHT CHARACTERISTIC WHITE
WATTAGE RATING 17.000 WATTS
VOLTAGE RATING NOT RATED
LIGHT OUTPUT RATING NOT RATED
RATED AVERAGE LIFE HOURS
AVERAGE LIFE RATING IN HOURS 10000.0
BURNING POSITION ANY ACCEPTABLE
III END ITEM IDENTIFICATION WATER PURIFICATION SYSTEM, MODEL NIR-95

Restrictions/Controls & Freight Information | NSN 6240-01-495-4211

Category Code Description
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
No Freight Information
