NSN 6240-01-420-5905 H4666, 395616, 01-420-5905
Product Details | INCANDESCENT LAMP
6240-01-420-5905 An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern.
Part Alternates: H4666, 395616, 6240-01-420-5905, 01-420-5905, 6240014205905, 014205905
Lighting Fixtures and Lamps | Electric Lamps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 19 OCT 1995 | 01-420-5905 | 00727 ( LAMP, INCANDESCENT ) |
Drawings & Photos | NSN 6240-01-420-5905
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6240-01-420-5905
Related Products | NSN 6240-01-420-5905
Technical Data | NSN 6240-01-420-5905
| Characteristic | Specifications |
|---|---|
| BASE STYLE | A43 THREE CONTACT LUGS |

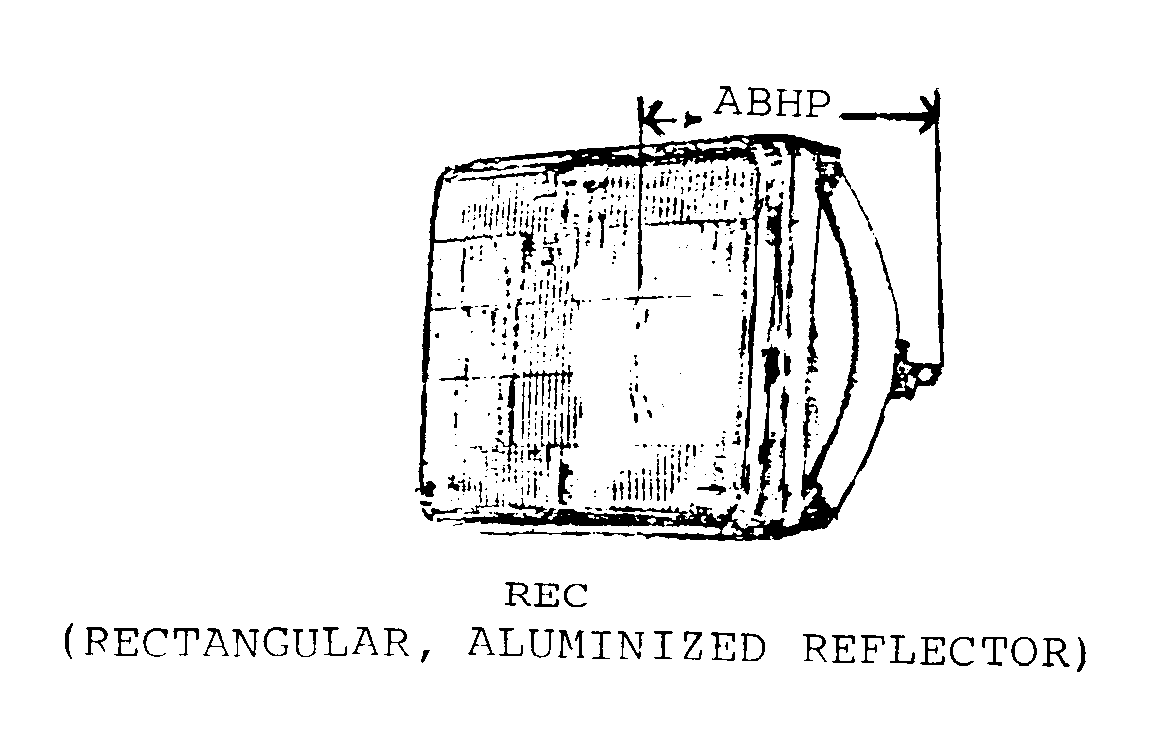

| BULB STYLE | B38 REC |
| BULB DESIGNATOR | REC100X165 |
| OVERALL LENGTH | 4.500 INCHES MAXIMUM |
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT |
| EMITTED LIGHT CHARACTERISTIC | COLORLESS |
| FILAMENT DESIGNATION | C-6 AND C-8 |
| FILLING GAS TYPE | HALOGEN |
| WATTAGE RATING | 45.000 WATTS AND 65.000 WATTS |
| VOLTAGE RATING | 12.800 VOLTS NOMINAL AND 12.800 VOLTS NOMINAL |
| CURRENT RATING FOR WHICH DESIGNED | 3.516 AMPERES MINIMUM AND 5.078 AMPERES MAXIMUM |
| LIGHT OUTPUT RATING | NOT RATED |
| RATED AVERAGE LIFE | HOURS |
| AVERAGE LIFE RATING IN HOURS | 150.0 AND 320.0 |
| BURNING POSITION | ANY ACCEPTABLE |
| FILAMENT HEAVY DUTY SERVICE RATING | NOT RATED |
Restrictions/Controls & Freight Information | NSN 6240-01-420-5905
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109550 | LAMPS(BULBS) ELEC INCANDESCENT NOI |
| Less than car load rating | ||
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 761 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6240-01-420-5905
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
