NSN 6240-01-420-0290 102617, 3203230P1, 5106WW
Product Details | FLUORESCENT LAMP
6240-01-420-0290 An item which produces light due to an ionized gas activating a fluorescent coating.
Part Alternates: 102617, 3203230P1, 5106WW, 6240-01-420-0290, 01-420-0290, 6240014200290, 014200290, 521026179
Lighting Fixtures and Lamps | Electric Lamps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 05 OCT 1995 | 01-420-0290 | 03891 ( LAMP, FLUORESCENT ) |
Drawings & Photos | NSN 6240-01-420-0290
Demand History | NSN 6240-01-420-0290
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6240-01-420-0290 | 2022-02-55 | 1 | AE |
| 6240-01-420-0290 | 2022-02-55 | 6 | AE |
| 6240-01-420-0290 | 2016-08-215 | 335 | DIBBS |
| 6240-01-420-0290 | 2012-09-249 | 424 | DIBBS |
| 6240-01-420-0290 | 2010-09-264 | 250 | US |
| 6240-01-420-0290 | 2010-01-06 | 900 | United States |
Cross Reference | NSN 6240-01-420-0290
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6240-01-420-0290
Related Products | NSN 6240-01-420-0290
Technical Data | NSN 6240-01-420-0290
| Characteristic | Specifications |
|---|---|

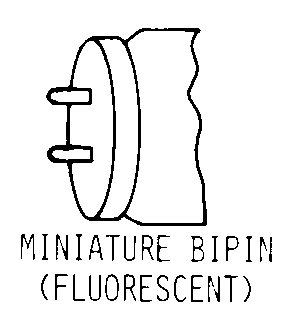

| BASE STYLE | A84B MINIATURE BIPIN |
| BULB STYLE | B27 T |
| BULB DESIGNATOR | T-5 |
| OVERALL LENGTH | 8.855 INCHES MINIMUM AND 8.900 INCHES MAXIMUM |
| EMITTED LIGHT CHARACTERISTIC | WHITE, WARM |
| WATTAGE RATING | 6.000 WATTS |
| LIGHT OUTPUT RATING | 250.000 LUMENS NOMINAL |
| RATED AVERAGE LIFE | HOURS |
| AVERAGE LIFE RATING IN HOURS | 7500.0 |
| STARTING CHARACTERISTIC | RAPID |
| III END ITEM IDENTIFICATION | SEAWOLF CLASS SSN; SUBMARINE MISCELLANEOUS SONAR AND ADP SYSTEMS; SUBMARINE COMBAT SYSTEM, AN/BSY-2(V) |
Restrictions/Controls & Freight Information | NSN 6240-01-420-0290
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | Y | Information is in the Hazardous Materials Information System (HMIS) |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Hazardous Control Code: | Z2 | Article Containing Mercury ARTICLE, MERCURY |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109600 | LAMPS(BULBS) ELEC FLUORESCENT |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 761 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Q | Extremely fragile items including delicate instruments. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6240-01-420-0290
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | U | Mercury (authorized for general use) |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
