NSN 6240-01-369-9039 MS253097512, MS25309-7512, 01-369-9039
Product Details | INCANDESCENT LAMP
6240-01-369-9039 An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern.
Part Alternates: MS253097512, MS25309-7512, 6240-01-369-9039, 01-369-9039, 6240013699039, 013699039
Lighting Fixtures and Lamps | Electric Lamps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 08 JAN 1993 | 01-369-9039 | 00727 ( LAMP, INCANDESCENT ) |

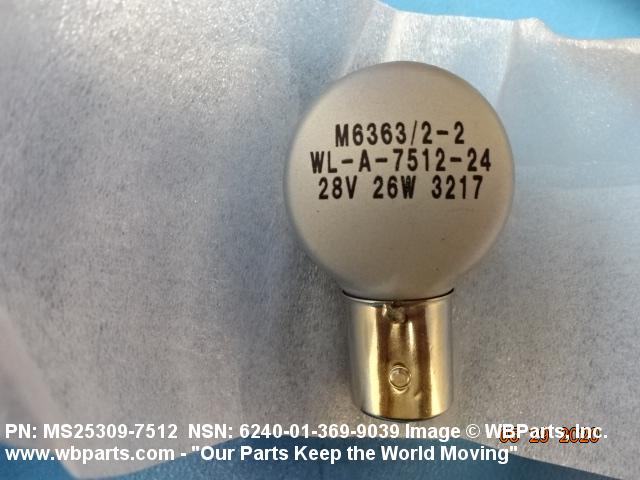

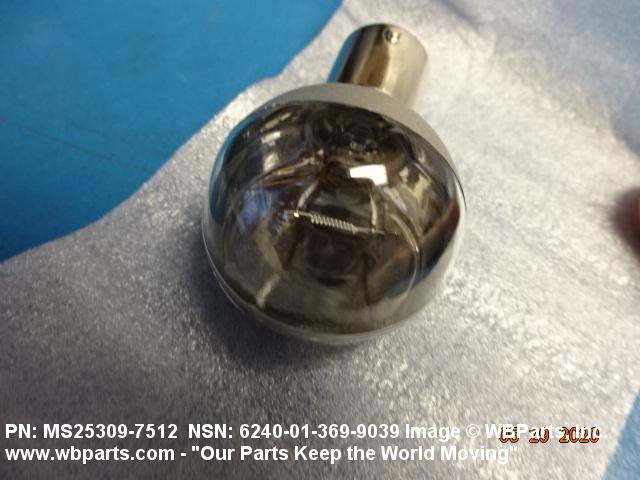

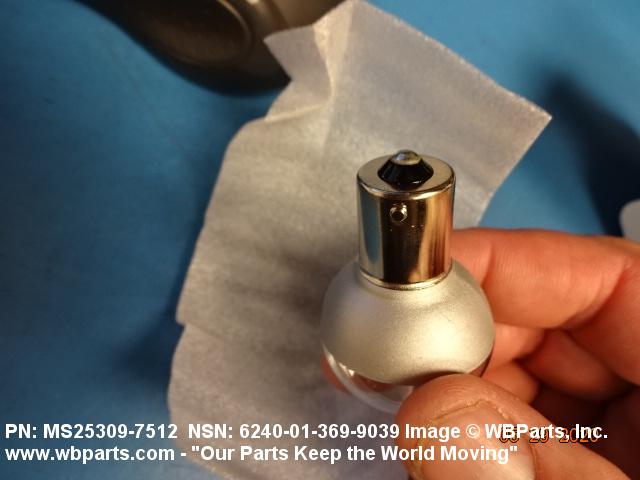

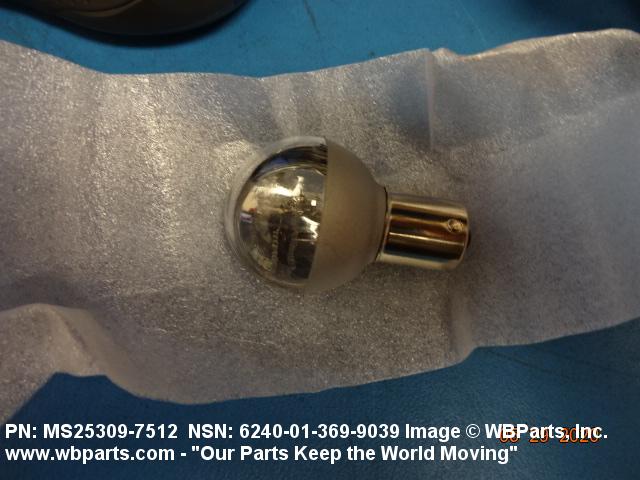

Drawings & Photos | NSN 6240-01-369-9039
Demand History | NSN 6240-01-369-9039
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS253097512 | 2024-09-255 | 4 | Thailand |
| MS253097512 | 2024-06-180 | 100 | AE |
| MS253097512 | 2024-06-163 | 1 | US |
| MS253097512 | 2024-06-155 | 50 | US |
| MS253097512 | 2024-03-71 | 60 | US |
| MS253097512 | 2023-12-354 | 12 | CN |
| MS253097512 | 2023-08-235 | 5 | us |
| MS253097512 | 2023-08-228 | 20 | JO |
| MS253097512 | 2023-08-222 | 30 | UK |
| MS253097512 | 2021-09-263 | 50 | US |
| 6240-01-369-9039 | 2016-03-90 | 6 | MANUAL |
| MS25309-7512 | 2016-03-90 | 6 | KR |
| MS253097512 | 2015-07-205 | 20 | Singapore |
| 6240-01-369-9039 | 2015-04-98 | 2 | US |
| MS25309-7512 | 2015-03-76 | 10 | TH |
| MS253097512 | 2015-02-40 | 4 | Indonesia |
| MS253097512 | 2014-09-253 | 100 | Malaysia |
| MS253097512 | 2014-09-245 | 10 | Turkey |
| MS25309-7512 | 2014-04-113 | 4 | PK |
| MS25309-7512 | 2014-02-52 | 25 | US |
| 6240-01-369-9039 | 2014-02-37 | 10 | CL |
| MS25309-7512 | 2013-12-337 | 25 | India |
| MS253097512 | 2013-11-319 | 10 | LK |
| MS25309-7512 | 2012-11-310 | 32 | |
| MS253097512 | 2012-03-81 | 5 | Brazil |
| MS253097512 | 2012-03-80 | 5 | BR |
| MS253097512 | 2011-12-338 | 1 | US |
| MS253097512 | 2011-10-283 | 2 | PH |
| MS253097512 | 2011-08-229 | 10 | CO |
| MS253097512 | 2011-02-38 | 1 | US |
| MS253097512 | 2011-01-26 | 1 | Italy |
| MS253097512 | 2010-04-105 | 3 | US |
| MS253097512 | 2010-04-103 | 3 | Singapore |
| MS253097512 | 2009-11-321 | 1 | US |
| MS253097512 | 2009-11-310 | 6 | US |
| MS253097512 | 2009-11-306 | 20 | Italy |
| MS253097512 | 2009-03-69 | 1 | GA |
Cross Reference | NSN 6240-01-369-9039
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS25309-7512 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6240-01-369-9039
Technical Data | NSN 6240-01-369-9039
| Characteristic | Specifications |
|---|---|
| BASE STYLE | A20A SINGLE CONTACT BAYONET CANDELABRA INDEXING |
| BULB STYLE | B12 GG |
| BULB DESIGNATOR | GG-10 |
| OVERALL LENGTH | 1.968 INCHES MINIMUM |
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSLUCENT |
| LIGHT INTENSITY DISTRIBUTION FEATURE | REFLECTIVE BOWL |
| EMITTED LIGHT CHARACTERISTIC | NATURAL |
| WATTAGE RATING | 26.000 WATTS |
| VOLTAGE RATING | 28.000 VOLTS NOMINAL |
| CURRENT RATING FOR WHICH DESIGNED | NOT RATED |
| LIGHT OUTPUT RATING | NOT RATED |
| RATED AVERAGE LIFE | NOT RATED |
| BURNING POSITION | ANY ACCEPTABLE |
| FILAMENT HEAVY DUTY SERVICE RATING | NOT RATED |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS25309-7512 |
Restrictions/Controls & Freight Information | NSN 6240-01-369-9039
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
