NSN 6240-01-356-9798 BFT15EX/T-C, BFT15EXTC, 01-356-9798
Product Details | FLUORESCENT LAMP
6240-01-356-9798 An item which produces light due to an ionized gas activating a fluorescent coating.
Part Alternates: BFT15EX/T-C, BFT15EXTC, 6240-01-356-9798, 01-356-9798, 6240013569798, 013569798
Lighting Fixtures and Lamps | Electric Lamps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 15 APR 1992 | 01-356-9798 | 03891 ( LAMP, FLUORESCENT ) |

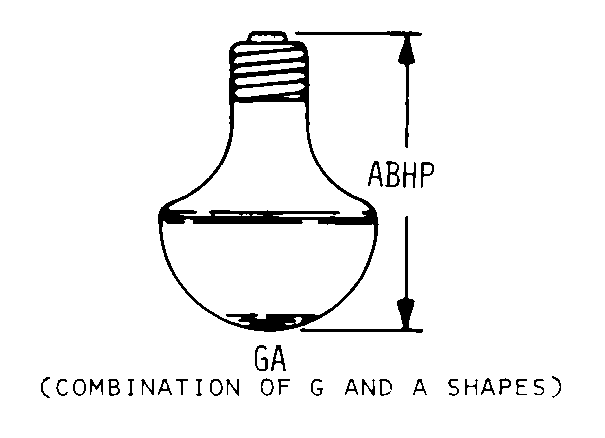

Drawings & Photos | NSN 6240-01-356-9798
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6240-01-356-9798
Related Products | NSN 6240-01-356-9798
Technical Data | NSN 6240-01-356-9798
| Characteristic | Specifications |
|---|---|
| BASE STYLE | A2E MEDIUM SCREW |
| BULB STYLE | B11 GA |
| OVERALL LENGTH | 6.500 INCHES MAXIMUM |
| EMITTED LIGHT CHARACTERISTIC | WHITE |
| WATTAGE RATING | 15.000 WATTS |
| VOLTAGE RATING | 120.000 VOLTS NOMINAL |
| LIGHT OUTPUT RATING | 720.000 LUMENS NOMINAL SINGLE RATING |
| RATED AVERAGE LIFE | HOURS |
| AVERAGE LIFE RATING IN HOURS | 9000.0 |
| STARTING CHARACTERISTIC | RAPID |
| SPECIAL FEATURES | COMPACT; 5000K COLOR TEMP; COLOR RENDERING INDEX 84 |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III UNPACKAGED UNIT WEIGHT | 0.900 POUNDS |
Restrictions/Controls & Freight Information | NSN 6240-01-356-9798
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109600 | LAMPS(BULBS) ELEC FLUORESCENT |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 761 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Q | Extremely fragile items including delicate instruments. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
