NSN 6240-01-262-5787 MS245134174, MS24513-4174, M6363/3-1

Product Details | INCANDESCENT LAMP

6240-01-262-5787 An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern.

Part Alternates: MS245134174, MS24513-4174, M6363/3-1, M636331, A417424, A-4174-24, A4174-24, MIL-L-6363/3, MILL63633, 6044191, 60-4419-1, 6240-01-262-5787, 01-262-5787, 6240012625787, 012625787

Lighting Fixtures and Lamps | Electric Lamps

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
62	31 AUG 1987	01-262-5787	00727 ( LAMP, INCANDESCENT )

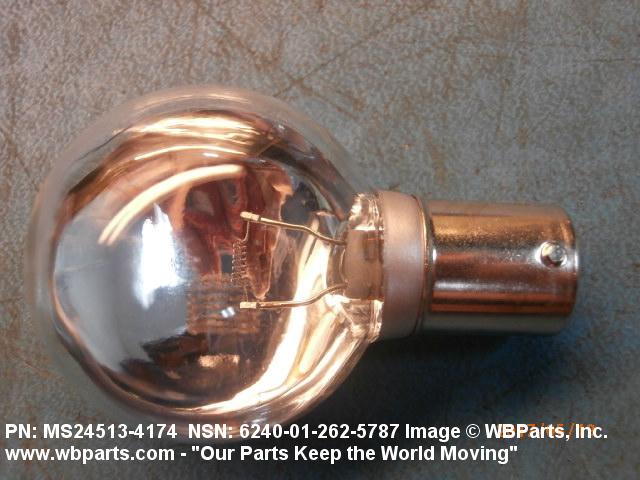

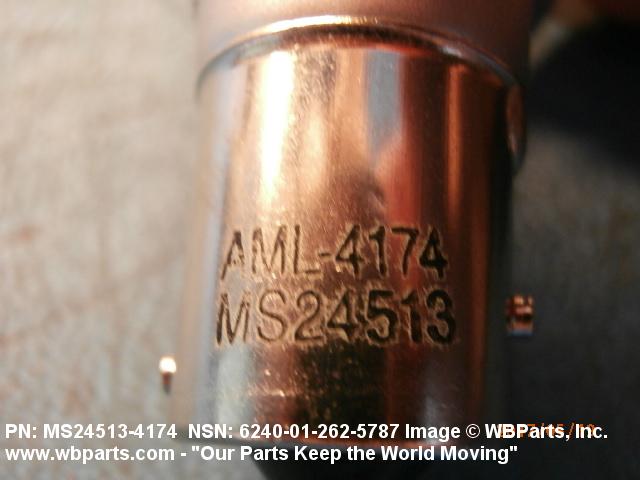

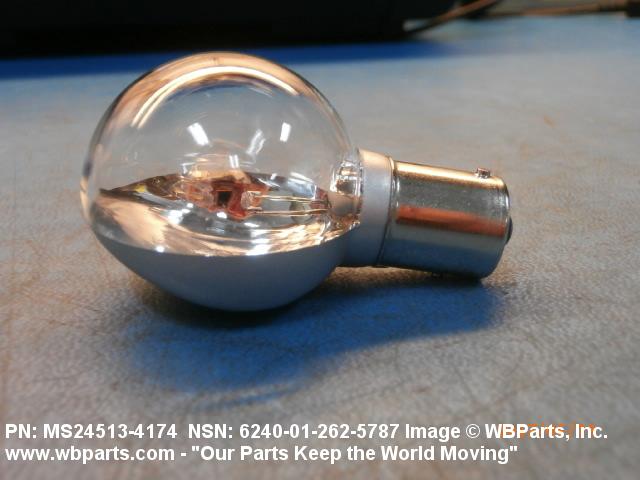

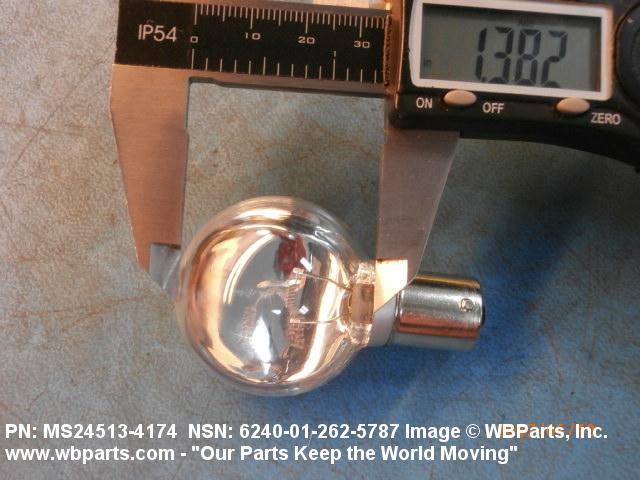

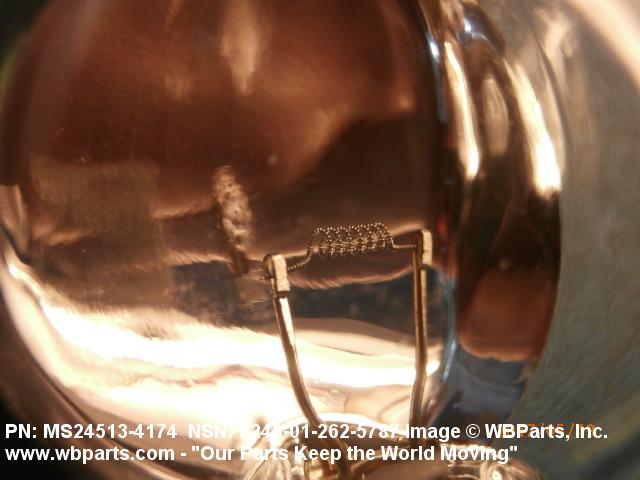

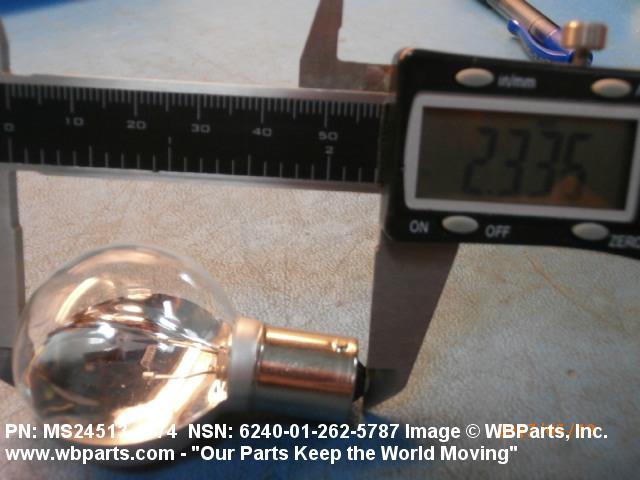

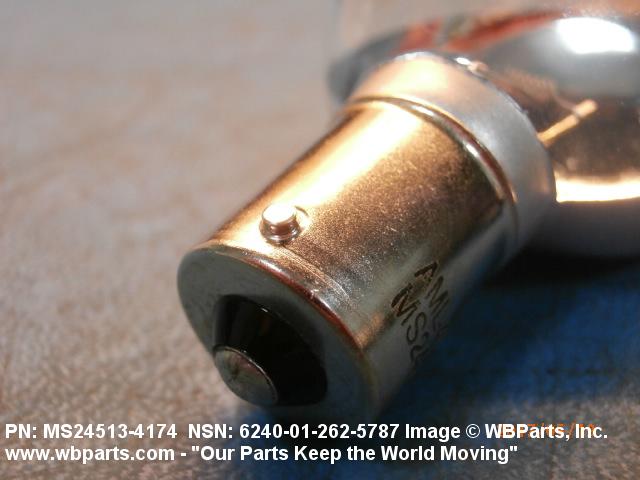

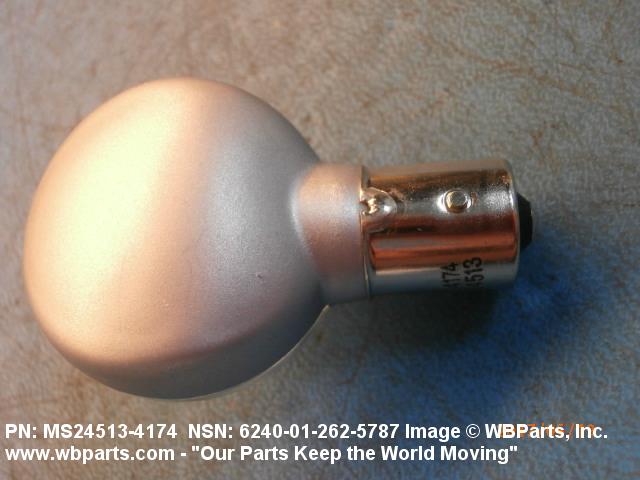

Drawings & Photos | NSN 6240-01-262-5787

Part Number	Request Date	QTY	Origin
6240-01-262-5787	2025-05-138	1031	DIBBS
6240-01-262-5787	2025-02-44	485	DIBBS
6240-01-262-5787	2025-01-22	527	JP
6240-01-262-5787	2024-11-319	375	DIBBS
6240-01-262-5787	2024-10-276	24	IN
6240-01-262-5787	2024-09-263	527	United States
6240-01-262-5787	2024-08-234	10	United States
6240-01-262-5787	2024-07-208	322	DIBBS
6240-01-262-5787	2024-07-200	322	DIBBS
6240-01-262-5787	2024-01-11	1000	us
6240-01-262-5787	2023-08-240	2257	DIBBS
6240-01-262-5787	2023-08-232	2257	DIBBS
6240-01-262-5787	2023-05-150	1558	DIBBS
6240-01-262-5787	2023-05-142	1558	DIBBS
6240-01-262-5787	2023-05-141	866	DIBBS
6240-01-262-5787	2023-02-51	692	DIBBS
6240-01-262-5787	2022-10-297	75	DIBBS
6240-01-262-5787	2022-10-289	75	DIBBS
6240-01-262-5787	2022-05-132	2	Australia
6240-01-262-5787	2022-02-54	2000	DIBBS
6240-01-262-5787	2022-02-53	2000	DIBBS
6240-01-262-5787	2022-02-41	2000	DIBBS
6240-01-262-5787	2021-11-320	5000	DIBBS
6240-01-262-5787	2021-10-298	1867	DIBBS
6240-01-262-5787	2021-10-290	1867	DIBBS
6240-01-262-5787	2021-07-204	2775	DIBBS
6240-01-262-5787	2021-07-196	2775	DIBBS
6240-01-262-5787	2021-05-132	2219	DIBBS
6240-01-262-5787	2021-05-123	2219	DIBBS
6240-01-262-5787	2020-10-300	408	DIBBS
6240-01-262-5787	2020-10-292	408	DIBBS
6240-01-262-5787	2020-09-248	1	DIBBS-RFPs
6240-01-262-5787	2020-03-64	100	TW
6240-01-262-5787	2020-02-35	1	United States
6240-01-262-5787	2020-01-09	2	Philippines
A417424	2018-11-324	10	Philippines
MS245134174	2017-08-220	2	United States
6240-01-262-5787	2017-05-129	10	United States
6240-01-262-5787	2017-05-129	10	United States
A4174-24	2017-03-83	10	SG
A4174-24	2017-03-83	10	SG
6240-01-262-5787	2016-05-144	10	Seychelles
6240-01-262-5787	2015-08-228	2033	DIBBS
6240-01-262-5787	2015-03-82	2192	DIBBS
6240-01-262-5787	2015-02-44	4	United States
6240-01-262-5787	2014-12-352	1991	DIBBS
6240-01-262-5787	2014-09-251	3186	DIBBS
6240-01-262-5787	2014-04-98	2646	DIBBS
6240-01-262-5787	2013-04-102	6781	DIBBS
6240-01-262-5787	2012-10-285	1710	DIBBS
MS245134174	2012-09-250	24	TZ
MS245134174	2012-02-53	5	NG
6240-01-262-5787	2011-11-314	2086	DIBBS
A4174-24	2011-10-297	50
6240-01-262-5787	2011-07-211	2124	DIBBS
6240-01-262-5787	2011-06-179	3228	DIBBS
6240-01-262-5787	2011-06-175	3228	DIBBS
6240-01-262-5787	2011-02-34	3228	DIBBS
6240-01-262-5787	2010-08-216	1770	DIBBS
6240-01-262-5787	2010-07-197	1850	DIBBS
6240-01-262-5787	2010-02-55	1844	DIBBS
6240-01-262-5787	2010-01-15	3590	DIBBS
6240-01-262-5787	2009-11-307	3592	DIBBS
6044191	2009-09-264	1	Thailand
6240-01-262-5787	2008-04-120	4	United States

Cross Reference | NSN 6240-01-262-5787

Part Number	Cage Code	Manufacturer
60-4419-1	72914	GRIMES AEROSPACE COMPANY DBA HONEYWELL
A-4174-24	71914	VOLT MANAGEMENT CORP DBA VOLT TEMPORARY SERVICES
A4174-24	72914	GRIMES AEROSPACE COMPANY DBA HONEYWELL
M6363/3-1	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-L-6363/3	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS24513-4174	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 6240-01-262-5787

Compare

Related Products | NSN 6240-01-262-5787

6240-01-262-7311, 6240-01-262-9590, 6240-01-263-0123, 6240-01-263-1889, 6240-01-263-5342

Technical Data | NSN 6240-01-262-5787

Characteristic	Specifications
BASE STYLE	A20A SINGLE CONTACT BAYONET CANDELABRA INDEXING
BULB STYLE	B12 GG
BULB DESIGNATOR	GG-12B1
OVERALL LENGTH	2.311 INCHES MINIMUM AND 2.504 INCHES MAXIMUM
BULB LIGHT TRANSMISSION CHARACTERISTIC	TRANSPARENT
LIGHT INTENSITY DISTRIBUTION FEATURE	REFLECTIVE SIDE
EMITTED LIGHT CHARACTERISTIC	COLORLESS
FILAMENT DESIGNATION	CC-6
WATTAGE RATING	43.000 WATTS
VOLTAGE RATING	28.000 VOLTS NOMINAL
CURRENT RATING FOR WHICH DESIGNED	1.550 AMPERES MAXIMUM
LIGHT OUTPUT RATING	300.000 BEAM CANDLEPOWER NOMINAL SINGLE RATING
RATED AVERAGE LIFE	HOURS
AVERAGE LIFE RATING IN HOURS	300.0
BURNING POSITION	ANY ACCEPTABLE
FILAMENT HEAVY DUTY SERVICE RATING	ROUGH SERVICE
LIGHT CENTER LENGTH	1.250 INCHES NOMINAL
SPECIAL FEATURES	UNIQUE MILITARY APPLICATION; 113 DEG C,235 DEG F CONTINUOUS OPERATING TEMP RATING; SHOCK RATING FOR GRAVITY RATED AT 90; RANDOM VIBRATION,HUMIDITY,AND SALT SPRAY RESISTANT
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-L-6363/3
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M6363/3-1

Restrictions/Controls & Freight Information | NSN 6240-01-262-5787

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	109550	LAMPS(BULBS) ELEC INCANDESCENT NOI
Less than car load rating
Less than truck load rating	F	150.0
Water commodity Code	761	unknown
Originating Activity Code	CX	Defense Supply Center Richmond Richmond, VA 23297-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 6240-01-262-5787

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	A EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	A EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	A EA : Each
