NSN 6240-01-162-4086 HSAX10006, HSA-X10006, XM10009HS
Product Details | XENON LAMP
6240-01-162-4086 An item which produces light by an electric arc between two electrodes in an ionized xenon gas atmosphere. See also LAMP, GLOW. Excludes LAMP, FLASHTUBE.
Part Alternates: HSAX10006, HSA-X10006, XM10009HS, XM1000-9HS, XM1009HS, XM100-9HS, 1000 TRC, 1000TRC, 883C0010, 9800, 993C0010, 6240-01-162-4086, 01-162-4086, 6240011624086, 011624086
Lighting Fixtures and Lamps | Electric Lamps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 17 SEP 1983 | 01-162-4086 | 33519 ( LAMP, XENON ) |

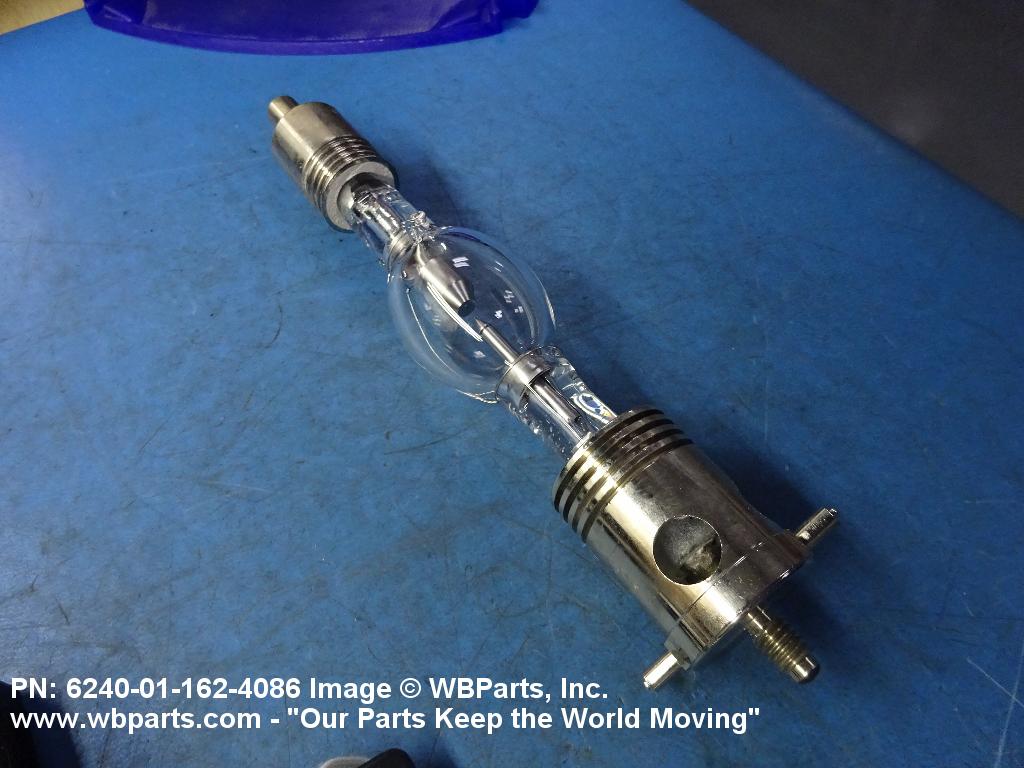

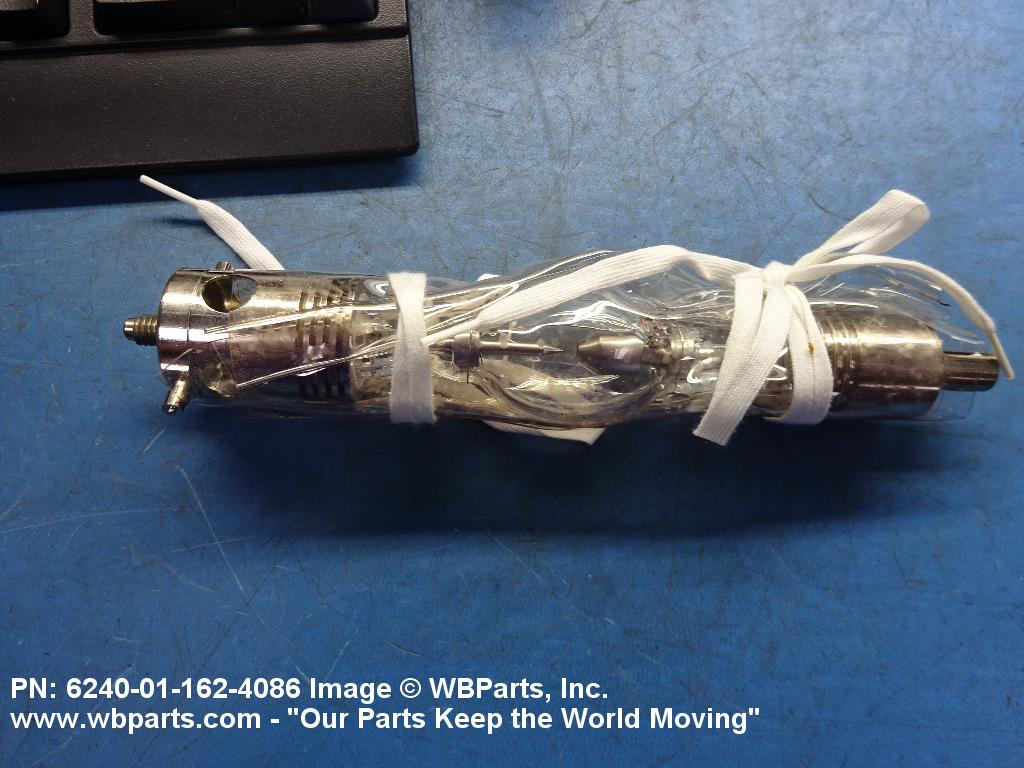

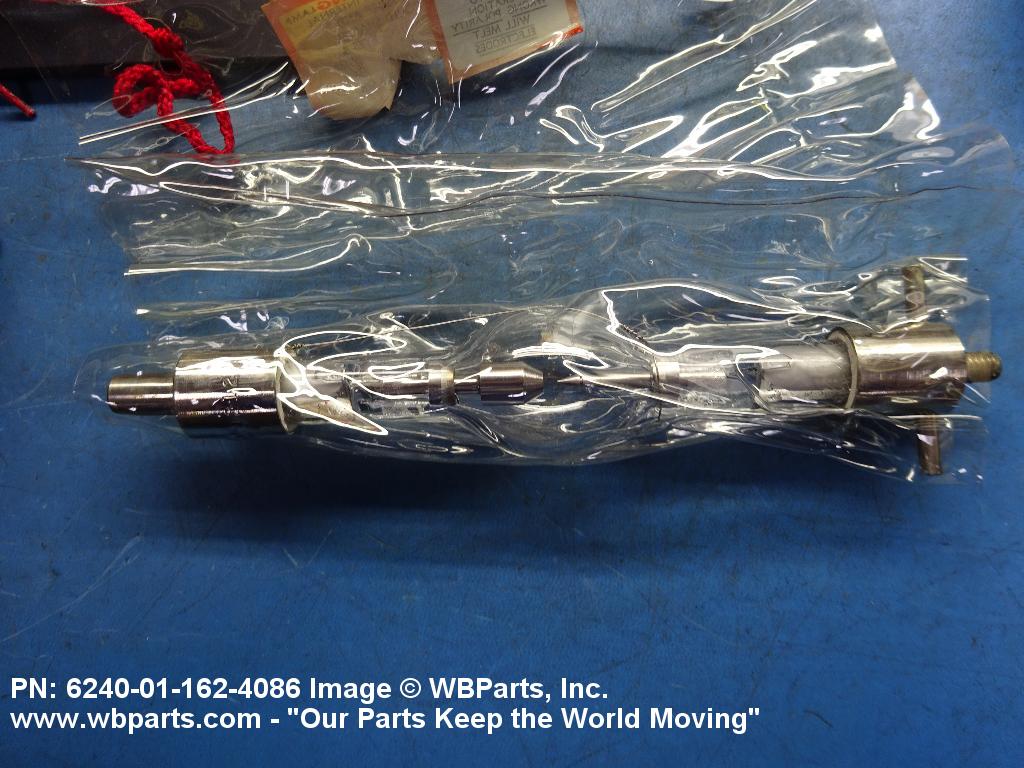

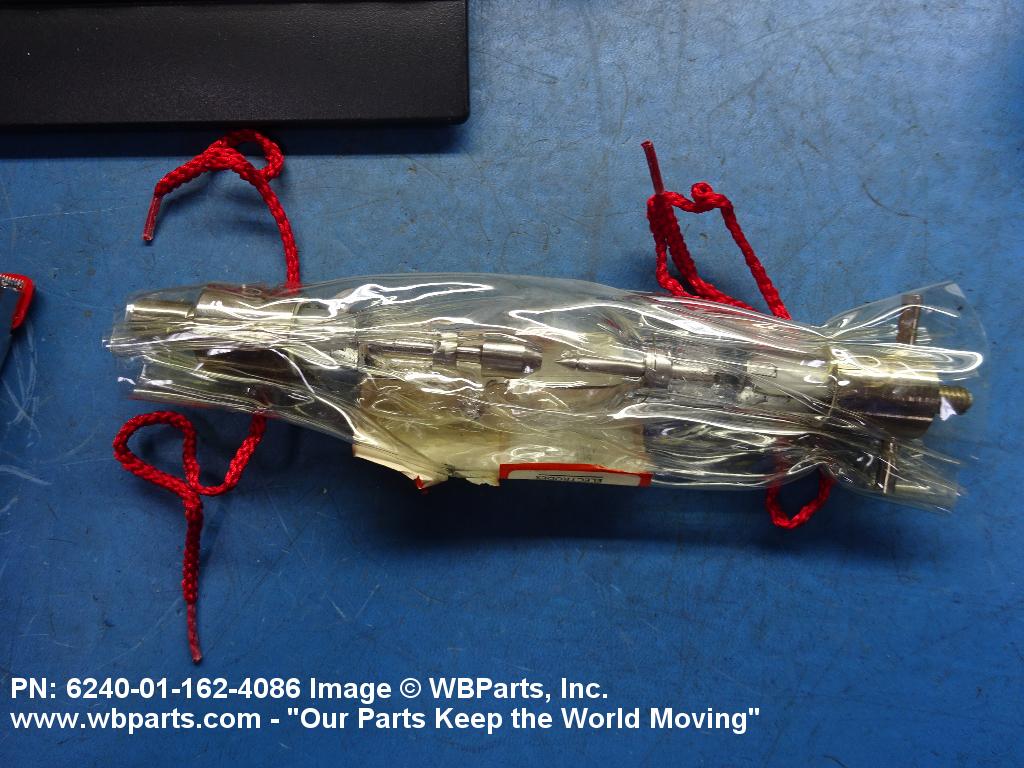

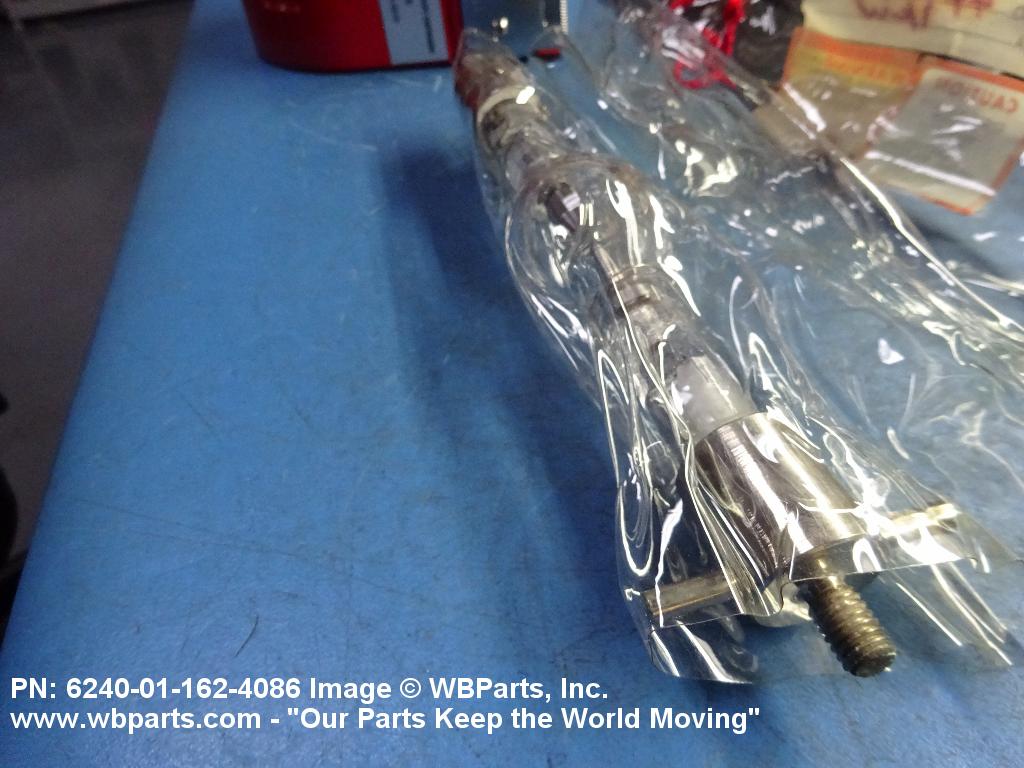

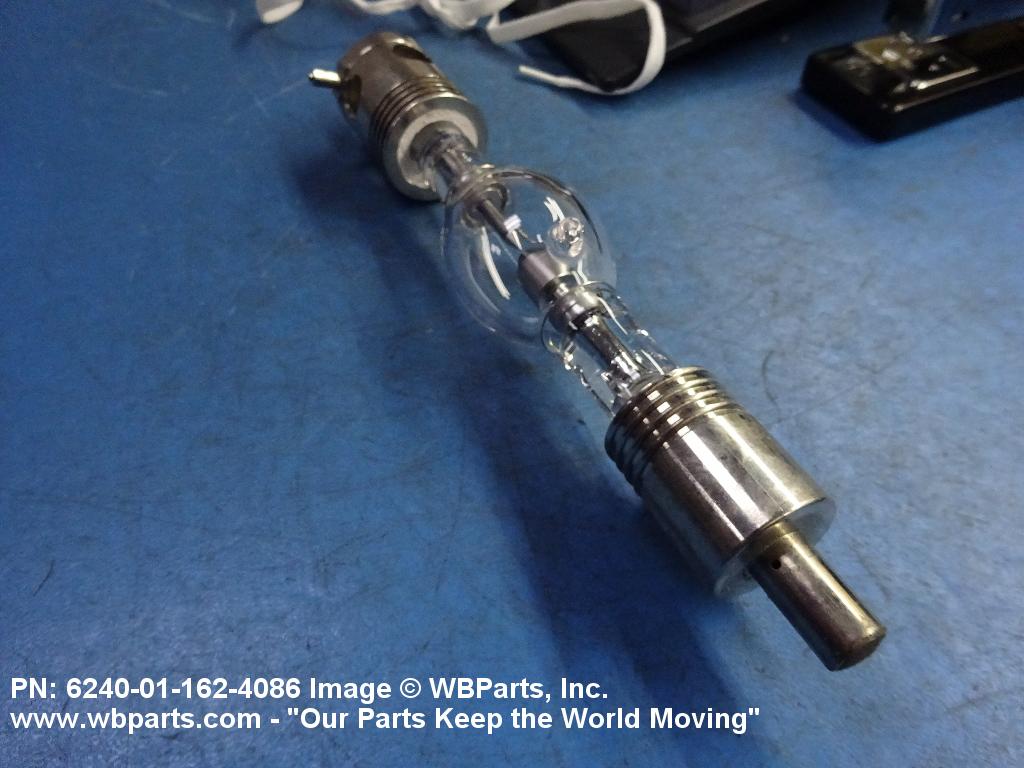

Drawings & Photos | NSN 6240-01-162-4086
Demand History | NSN 6240-01-162-4086
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1000 TRC | 2024-10-305 | 16 | DIBBS |
| 1000 TRC | 2024-10-297 | 16 | DIBBS |
| 1000 TRC | 2024-06-164 | 9 | DIBBS |
| 1000 TRC | 2024-06-156 | 9 | DIBBS |
| 1000 TRC | 2024-01-08 | 17 | DIBBS |
| 1000 TRC | 2023-12-360 | 17 | DIBBS |
| 1000 TRC | 2023-12-352 | 17 | DIBBS |
| 1000 TRC | 2023-12-339 | 2 | DIBBS |
| 1000 TRC | 2023-06-158 | 5 | DIBBS |
| 6240-01-162-4086 | 2022-08-224 | 6 | US |
| 1000TRC | 2022-08-221 | 1 | CV |
| 6240-01-162-4086 | 2022-06-171 | 2 | Paraguay |
| 6240-01-162-4086 | 2022-05-130 | 1 | CV |
| 6240-01-162-4086 | 2022-04-101 | 2 | PA |
| 6240-01-162-4086 | 2021-10-292 | 1 | UM |
| 9800 | 2021-04-112 | 1 | United States |
| 6240-01-162-4086 | 2021-04-102 | 2 | MO |
| 6240-01-162-4086 | 2021-02-48 | 1 | US |
| 6240-01-162-4086 | 2018-11-325 | 2 | US |
| 6240-01-162-4086 | 2018-09-269 | 47 | DIBBS |
| 6240-01-162-4086 | 2018-07-206 | 4 | LK |
| 6240-01-162-4086 | 2018-02-40 | 74 | US |
| 6240-01-162-4086 | 2018-02-37 | 74 | DIBBS |
| 6240-01-162-4086 | 2017-08-235 | 1 | TW |
| 6240-01-162-4086 | 2017-07-187 | 38 | DIBBS |
| 6240-01-162-4086 | 2017-04-99 | 27 | DIBBS |
| 6240-01-162-4086 | 2017-03-89 | 1 | United States |
| 6240-01-162-4086 | 2017-03-88 | 2 | US |
| 1000TRC | 2017-03-74 | 2 | US |
| 6240-01-162-4086 | 2017-02-53 | 45 | DIBBS |
| 6240-01-162-4086 | 2017-02-46 | 1 | US |
| 6240-01-162-4086 | 2016-12-355 | 1 | US |
| 6240-01-162-4086 | 2016-11-313 | 22 | DIBBS |
| 6240-01-162-4086 | 2015-08-242 | 51 | DIBBS |
| 6240-01-162-4086 | 2014-08-224 | 1 | United States |
| 6240-01-162-4086 | 2014-05-149 | 33 | DIBBS |
| 6240-01-162-4086 | 2014-05-141 | 4 | PA |
| 6240-01-162-4086 | 2013-08-216 | 22 | DIBBS |
| 6240-01-162-4086 | 2013-05-150 | 16 | DIBBS |
| 6240-01-162-4086 | 2012-03-74 | 27 | DIBBS |
| 6240-01-162-4086 | 2011-07-211 | 29 | DIBBS |
| 6240-01-162-4086 | 2011-02-45 | 4 | DIBBS |
| 6240-01-162-4086 | 2011-01-06 | 5 | DIBBS |
| 6240-01-162-4086 | 2010-04-116 | 1 | DIBBS |
| 6240-01-162-4086 | 2009-10-278 | 19 | DIBBS |
Cross Reference | NSN 6240-01-162-4086
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1000 TRC | 10741 | CARLISLE AND FINCH COMPANY, THE |
| 883C0010 | 29218 | HANOVIA SPECIALTY LIGHTING LLC |
| 9800 | 10741 | CARLISLE AND FINCH COMPANY, THE |
| 9800 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 993C0010 | 29218 | HANOVIA SPECIALTY LIGHTING LLC |
| 993C0010 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| HSA-X10006 | 1BCU2 | HALOGENETIC IRRADIATION TECHNOLOGY INC |
| XM100-9HS | 33030 | OPTICAL RADIATION CORPORATION DBA ORC LIGHTING PRODUCTS |
| XM1000-9HS | 33030 | OPTICAL RADIATION CORPORATION DBA ORC LIGHTING PRODUCTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6240-01-162-4086
Related Products | NSN 6240-01-162-4086
Technical Data | NSN 6240-01-162-4086
| Characteristic | Specifications |
|---|---|
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT |
| EMITTED LIGHT CHARACTERISTIC | COLORLESS |
| WATTAGE RATING | 1000.000 WATTS |
| VOLTAGE RATING | 21.000 VOLTS NOMINAL |
| LIGHT OUTPUT RATING | NOT RATED |
| RATED AVERAGE LIFE | NOT RATED |
| BURNING POSITION | HORIZONTAL |
| SPECIAL FEATURES | 8.750 IN LENGTH |
| III UNPACKAGED UNIT WEIGHT | 1.000 POUNDS |
Restrictions/Controls & Freight Information | NSN 6240-01-162-4086
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109550 | LAMPS(BULBS) ELEC INCANDESCENT NOI |
| Less than car load rating | ||
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 761 | unknown |
| Originating Activity Code | XF | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6240-01-162-4086
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
