Product Details | INCANDESCENT LAMP

6240-01-082-8796 An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern.

Part Alternates: BWA-Q2000/4CL/BP, BWA-Q2000/CL/BP, BWAQ20004CLBP, BWAQ2000CLBP, BWA, 6240-01-082-8796, 01-082-8796, 6240010828796, 010828796

Lighting Fixtures and Lamps | Electric Lamps

Supply Group (FSG) NSN Assign. NIIN
62 12 SEP 1979 01-082-8796

Drawings & Photos | NSN 6240-01-082-8796


Cross Reference | NSN 6240-01-082-8796

Part Number Cage Code Manufacturer
BWA 80204 AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED
BWA-Q2000/4CL/BP 08805 GENERAL ELECTRIC COMPANY DBA GE
BWA-Q2000/CL/BP 08805 GENERAL ELECTRIC COMPANY DBA GE

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6240-01-082-8796

Technical Data | NSN 6240-01-082-8796

Characteristic Specifications

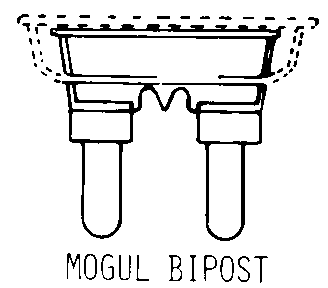

BASE STYLE A68A MOGUL BIPOST
BULB STYLE B25 T
BULB DESIGNATOR T-8
OVERALL LENGTH 8.000 INCHES MAXIMUM
BULB LIGHT TRANSMISSION CHARACTERISTIC TRANSPARENT
EMITTED LIGHT CHARACTERISTIC WHITE
FILAMENT DESIGNATION CC-8
WATTAGE RATING 2000.000 WATTS
VOLTAGE RATING 120.000 VOLTS NOMINAL
CURRENT RATING FOR WHICH DESIGNED NOT RATED
LIGHT OUTPUT RATING 59000.000 LUMENS NOMINAL SINGLE RATING
RATED AVERAGE LIFE HOURS
AVERAGE LIFE RATING IN HOURS 500.0
BURNING POSITION ANY ACCEPTABLE
FILAMENT HEAVY DUTY SERVICE RATING NOT RATED
COLOR TEMP IN DEG KELVIN 3200.0
LIGHT CENTER LENGTH 5.000 INCHES NOMINAL
FEATURES PROVIDED HEAT RESISTANT GLASS
SPECIFICATION/STANDARD DATA 80204-BWA PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD

Restrictions/Controls & Freight Information | NSN 6240-01-082-8796

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 109550 LAMPS(BULBS) ELEC INCANDESCENT NOI
Less than car load rating
Less than truck load rating F 150.0
Water commodity Code 761 unknown
Originating Activity Code CX Defense Supply Center Richmond
Richmond, VA 23297-5000
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity H Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 6240-01-082-8796

Category Code Description
Materiel Category and Inventory ManagerJ Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity2 Stock Fund Secondary Items
Management Inventory Segment2 NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code0 Medical Materiel
Weapons Systems/End Item or Homogeneous Group00DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements CodeX Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDADepartment of the Army
Service OrganizationAU.S. Army
ReparabilityZThis is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
6
EA : Each
Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
6
EA : Each
