NSN 6240-00-988-3839 F96T12/CG, F96T12CG, 00-988-3839
Product Details | FLUORESCENT LAMP
6240-00-988-3839 An item which produces light due to an ionized gas activating a fluorescent coating.
Part Alternates: F96T12/CG, F96T12CG, 6240-00-988-3839, 00-988-3839, 6240009883839, 009883839
Lighting Fixtures and Lamps | Electric Lamps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 01 JAN 1962 | 00-988-3839 | 03891 ( LAMP, FLUORESCENT ) |
Drawings & Photos | NSN 6240-00-988-3839
Cross Reference | NSN 6240-00-988-3839
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| F96T12/CG | 06172 | MARVEL LAMP CO INC |
| F96T12/CG | 58325 | U S LIGHTING CORP |
| F96T12/CG | 62607 | PHILIPS ELECTRONICS NORTH AMERICA CORPORATION |
| F96T12CG | 06RZ4 | DURO-TEST LIGHTING |
| F96T12CG | 08108 | LAMP INDUSTRY FOR USE WITH INDUSTRY |
| F96T12CG | 08599 | ARC RAY ELECTRIC CORP |
| F96T12CG | 24446 | GENERAL ELECTRIC CO |
| F96T12CG | 85271 | DURO-TEST CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6240-00-988-3839
Related Products | NSN 6240-00-988-3839
Technical Data | NSN 6240-00-988-3839
| Characteristic | Specifications |
|---|---|

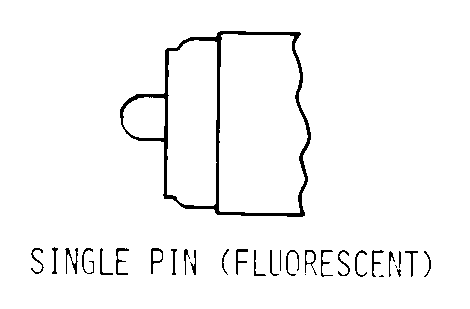

| BASE STYLE | A83 SINGLE PIN |
| BULB STYLE | B27 T |
| BULB DESIGNATOR | T-12 |
| OVERALL LENGTH | 96.000 INCHES NOMINAL |
| EMITTED LIGHT CHARACTERISTIC | GREEN |
| WATTAGE RATING | 75.000 WATTS |
| VOLTAGE RATING | NOT RATED |
| LIGHT OUTPUT RATING | 5400.000 LUMENS NOMINAL SINGLE RATING |
| RATED AVERAGE LIFE | HOURS |
| AVERAGE LIFE RATING IN HOURS | 12000.0 |
| STARTING CHARACTERISTIC | INSTANT |
| SPECIFICATION/STANDARD DATA | 08108-F96T12/CG MANUFACTURERS STANDARD |
Restrictions/Controls & Freight Information | NSN 6240-00-988-3839
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109600 | LAMPS(BULBS) ELEC FLUORESCENT |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 761 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Q | Extremely fragile items including delicate instruments. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6240-00-988-3839
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
C EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
C EA : Each |
