NSN 6240-00-773-2872 A040031071, A04003-107-1, HB0107
Product Details | MERCURY VAPOR LAMP
6240-00-773-2872 An item which produces light by an electric arc between two electrodes in an ionized mercury vapor atmosphere.
Part Alternates: A040031071, A04003-107-1, HB0107, HB01071, HB0107-1, PEK107, 2705259, 27-05259, 41A86, 6240-00-773-2872, 00-773-2872, 6240007732872, 007732872
Lighting Fixtures and Lamps | Electric Lamps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 01 JAN 1962 | 00-773-2872 | 03879 ( LAMP, MERCURY VAPOR ) |
Drawings & Photos | NSN 6240-00-773-2872
Cross Reference | NSN 6240-00-773-2872
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 27-05259 | 15090 | RAYTHEON COMPANY DBA RAYTHEON |
| 41A86 | 92400 | TELEX COMPUTER PRODUCTS INC |
| A04003-107-1 | 92400 | TELEX COMPUTER PRODUCTS INC |
| HB0107 | D8146 | OSRAM GMBH |
| HB0107 | D8220 | OSRAM GESELLSCHAFT MITBESCHRAENKTER HAFTUNG |
| HB0107-1 | D8146 | OSRAM GMBH |
| HB0107-1 | D8220 | OSRAM GESELLSCHAFT MITBESCHRAENKTER HAFTUNG |
| PEK107 | 29062 | ILLUMINATION INDUSTRIES INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6240-00-773-2872
Related Products | NSN 6240-00-773-2872
Technical Data | NSN 6240-00-773-2872
| Characteristic | Specifications |
|---|---|
| BASE STYLE | A48 MINIATURE CAP CYLINDRICAL END |

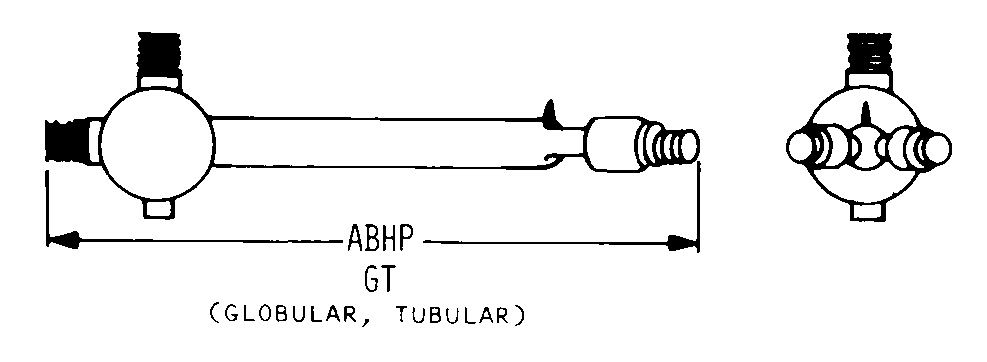

| BULB STYLE | B32 GT |
| BULB DESIGNATOR | ANY ACCEPTABLE |
| OVERALL LENGTH | 3.500 INCHES NOMINAL |
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT |
| EMITTED LIGHT CHARACTERISTIC | WHITE |
| WATTAGE RATING | 100.000 WATTS |
| VOLTAGE RATING | 20.000 VOLTS NOMINAL |
| LIGHT OUTPUT RATING | 2200.000 LUMENS NOMINAL SINGLE RATING |
| RATED AVERAGE LIFE | HOURS |
| AVERAGE LIFE RATING IN HOURS | 100.0 |
| BURNING POSITION | HORIZONTAL OR VERTICAL |
| MANUFACTURERS CODE | 92400 |
| DESIGN CONTROL REFERENCE | A04003-107-1 |
Restrictions/Controls & Freight Information | NSN 6240-00-773-2872
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109530 | LAMPS(LIGHTBULBS),ELECTRIC,HIGH-INT |
| Less than car load rating | ||
| Less than truck load rating | E | 175.0 |
| Water commodity Code | 761 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6240-00-773-2872
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | U | Mercury (authorized for general use) |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
