NSN 6240-00-669-6587 SMB2113211, SMB211321-1, WL116
Product Details | FLUORESCENT LAMP
6240-00-669-6587 An item which produces light due to an ionized gas activating a fluorescent coating.
Part Alternates: SMB2113211, SMB211321-1, WL116, F42T6/CW, F42T6CW, 10607882-1, 10720, 7166998, 716699-8, 6240-00-669-6587, 00-669-6587, 6240006696587, 106078821, 006696587
Lighting Fixtures and Lamps | Electric Lamps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 01 JAN 1963 | 00-669-6587 | 03891 ( LAMP, FLUORESCENT ) |
Drawings & Photos | NSN 6240-00-669-6587
Demand History | NSN 6240-00-669-6587
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6240-00-669-6587 | 2021-07-202 | 112 | DIBBS |
| 6240-00-669-6587 | 2021-03-74 | 63 | DIBBS |
| 6240-00-669-6587 | 2021-03-66 | 63 | DIBBS |
| 6240-00-669-6587 | 2021-02-35 | 24 | DIBBS |
| 6240-00-669-6587 | 2021-01-27 | 24 | DIBBS |
| 6240-00-669-6587 | 2020-06-176 | 2 | DIBBS |
| 6240-00-669-6587 | 2020-06-176 | 18 | DIBBS |
| 6240-00-669-6587 | 2020-06-176 | 62 | DIBBS |
| 6240-00-669-6587 | 2020-06-170 | 62 | DIBBS |
| 6240-00-669-6587 | 2020-04-121 | 2 | DIBBS |
| 6240-00-669-6587 | 2020-04-121 | 18 | DIBBS |
| 6240-00-669-6587 | 2012-06-171 | 20 | DIBBS |
| 6240-00-669-6587 | 2012-05-122 | 30 | DIBBS |
| 6240-00-669-6587 | 2011-02-38 | 28 | DIBBS |
Cross Reference | NSN 6240-00-669-6587
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10607882-1 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 10720 | 08805 | GENERAL ELECTRIC COMPANY DBA GE |
| 716699-8 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| F42T6/CW | 62607 | PHILIPS ELECTRONICS NORTH AMERICA CORPORATION |
| F42T6CW | 08108 | LAMP INDUSTRY FOR USE WITH INDUSTRY |
| F42T6CW | 08805 | GENERAL ELECTRIC COMPANY DBA GE |
| F42T6CW | 58854 | GTE PRODUCTS CORP LIGHTING PRODUCTS GROUP |
| F42T6CW | 80204 | AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED |
| SMB211321-1 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
| WL116 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6240-00-669-6587
Related Products | NSN 6240-00-669-6587
Technical Data | NSN 6240-00-669-6587
| Characteristic | Specifications |
|---|---|

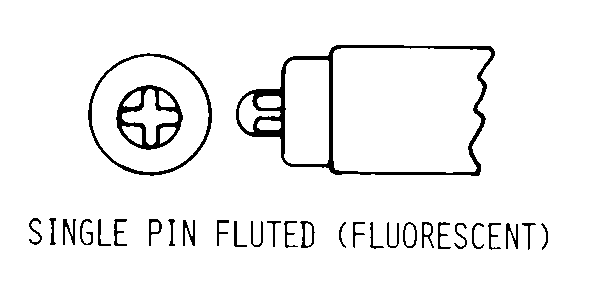

| BASE STYLE | A87 SINGLE PIN FLUTED |
| BULB STYLE | B27 T |
| BULB DESIGNATOR | T-6 |
| OVERALL LENGTH | 42.000 INCHES MAXIMUM |
| EMITTED LIGHT CHARACTERISTIC | WHITE, COOL |
| WATTAGE RATING | 25.000 WATTS |
| VOLTAGE RATING | NOT RATED |
| LIGHT OUTPUT RATING | 1490.000 LUMENS NOMINAL SINGLE RATING |
| RATED AVERAGE LIFE | HOURS |
| AVERAGE LIFE RATING IN HOURS | 7500.0 |
| STARTING CHARACTERISTIC | INSTANT |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | WL116 |
Restrictions/Controls & Freight Information | NSN 6240-00-669-6587
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109600 | LAMPS(BULBS) ELEC FLUORESCENT |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 761 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Q | Extremely fragile items including delicate instruments. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6240-00-669-6587
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
G EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
G EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
G EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | U | Mercury (authorized for general use) |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
G EA : Each |
