NSN 6240-00-617-0994 MS1560823, MS156083, MS15608-3

Product Details | INCANDESCENT LAMP

6240-00-617-0994 An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern.

Part Alternates: MS1560823, MS156083, MS15608-3, MS25242 , MS252424552, MS25242-4552, M4552, AN31304562, AN3130-4562, PA552, PA-552, 4552, 4562, 6240-00-617-0994, 00-617-0994, 6240006170994, 006170994

Lighting Fixtures and Lamps | Electric Lamps

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
62	01 JAN 1963	00-617-0994	00727 ( LAMP, INCANDESCENT )

Drawings & Photos | NSN 6240-00-617-0994

Part Number	Request Date	QTY	Origin
6240-00-617-0994	2024-11-319	32	DIBBS
6240-00-617-0994	2023-09-270	57	DIBBS
6240-00-617-0994	2023-07-198	39	DIBBS
6240-00-617-0994	2023-01-30	19	DIBBS
6240-00-617-0994	2023-01-16	21	DIBBS
6240-00-617-0994	2022-10-289	18	DIBBS
6240-00-617-0994	2022-08-227	52	DIBBS
6240-00-617-0994	2022-07-212	52	DIBBS
6240-00-617-0994	2022-06-173	19	DIBBS
6240-00-617-0994	2022-02-48	30	DIBBS
6240-00-617-0994	2021-11-325	35	DIBBS
6240-00-617-0994	2021-06-180	18	DIBBS
6240-00-617-0994	2021-06-171	18	DIBBS
6240-00-617-0994	2021-04-98	18	DIBBS
6240-00-617-0994	2021-03-87	18	DIBBS
4552	2020-03-71	4	AR
6240-00-617-0994	2020-02-49	143	DIBBS
6240-00-617-0994	2019-11-317	121	DIBBS
6240-00-617-0994	2018-09-261	90	DIBBS
4552	2014-12-338	2	Malaysia
6240-00-617-0994	2013-10-283	290	DIBBS
6240-00-617-0994	2013-10-275	290	DIBBS
6240-00-617-0994	2013-08-235	178	DIBBS
6240-00-617-0994	2012-09-257	102	DIBBS
6240-00-617-0994	2012-07-207	102	DIBBS
6240-00-617-0994	2010-05-132	227	DIBBS
4552	2010-03-78	2	Malaysia
MS252424552	2006-07-200	35	Canada

Cross Reference | NSN 6240-00-617-0994

Part Number	Cage Code	Manufacturer
4552	08108	LAMP INDUSTRY FOR USE WITH INDUSTRY
4552	08806	GENERAL ELECTRIC CO MINIATURE LAMP PRODUCTS DEPT
4552	80204	AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED
4562	08108	LAMP INDUSTRY FOR USE WITH INDUSTRY
AN3130-4562	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
M4552	72914	GRIMES AEROSPACE COMPANY DBA HONEYWELL
MS15608-3	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS1560823	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS25242	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS25242-4552	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
PA-552	FAGN5	JC LAMPES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 6240-00-617-0994

Compare

Related Products | NSN 6240-00-617-0994

6240-00-617-0998, 6240-00-617-1007, 6240-00-617-1008, 6240-00-617-1011, 6240-00-617-1013

Technical Data | NSN 6240-00-617-0994

Characteristic	Specifications

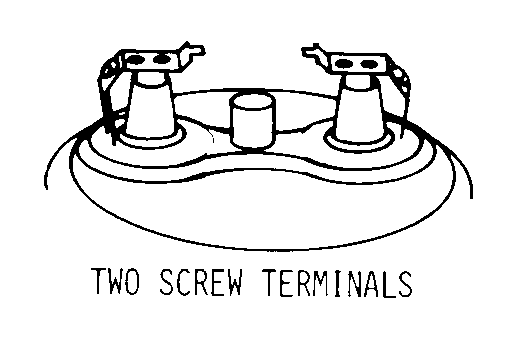

BASE STYLE	A40 TWO SCREW TERMINALS

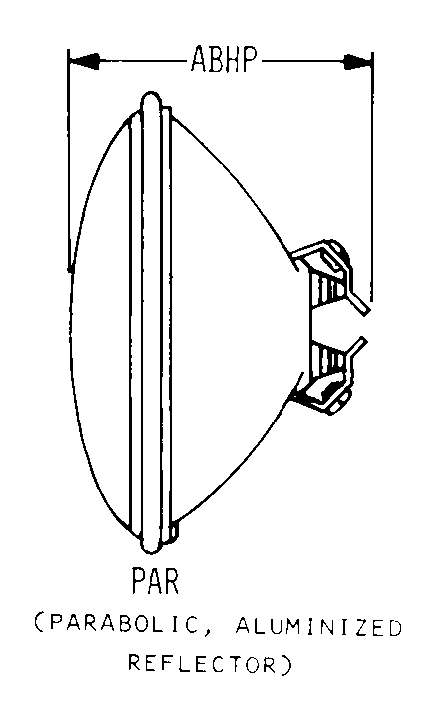

BULB STYLE	B17 PAR
BULB DESIGNATOR	PAR-64
OVERALL LENGTH	4.000 INCHES MAXIMUM
BULB LIGHT TRANSMISSION CHARACTERISTIC	TRANSPARENT
LIGHT INTENSITY DISTRIBUTION FEATURE	PARABOLIC REFLECTOR
EMITTED LIGHT CHARACTERISTIC	COLORLESS
FILAMENT DESIGNATION	CC-8
WATTAGE RATING	250.000 WATTS
VOLTAGE RATING	28.000 VOLTS NOMINAL
CURRENT RATING FOR WHICH DESIGNED	8.929 AMPERES NOMINAL
LIGHT OUTPUT RATING	500000.000 BEAM CANDLEPOWER NOMINAL SINGLE RATING
RATED AVERAGE LIFE	HOURS
AVERAGE LIFE RATING IN HOURS	25.0
BURNING POSITION	ANY ACCEPTABLE
FILAMENT HEAVY DUTY SERVICE RATING	NOT RATED
SPECIAL FEATURES	MILITARY SHILED
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS25242-4552

Restrictions/Controls & Freight Information | NSN 6240-00-617-0994

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	109550	LAMPS(BULBS) ELEC INCANDESCENT NOI
Less than car load rating
Less than truck load rating	F	150.0
Water commodity Code	761	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 6240-00-617-0994

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
