NSN 6240-00-577-8455 MS155452, MS15545-2, MS1778014
Product Details | INCANDESCENT LAMP
6240-00-577-8455 An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern.
Part Alternates: MS155452, MS15545-2, MS1778014, MS17780-14, A504411, A50441-1, AA2070, A-A-2070, AA50441, A-A-50441, 7N2038, 9-S-4639-L TYRSS-S, 9S4639LTYRSSS, 16726, 375089, 37508-9, 5050T12, 50-50T12, 5050T12115V, 50-50T12-115V, 50-50T12-115V-9 -S4639L, 5050T12115V9S4639L, 6240-00-577-8455, 00-577-8455, 6240005778455, 005778455
Lighting Fixtures and Lamps | Electric Lamps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 01 JAN 1963 | 00-577-8455 | 00727 ( LAMP, INCANDESCENT ) |

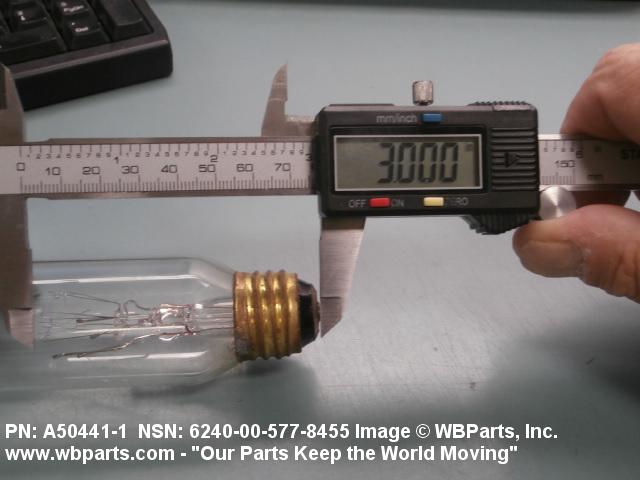

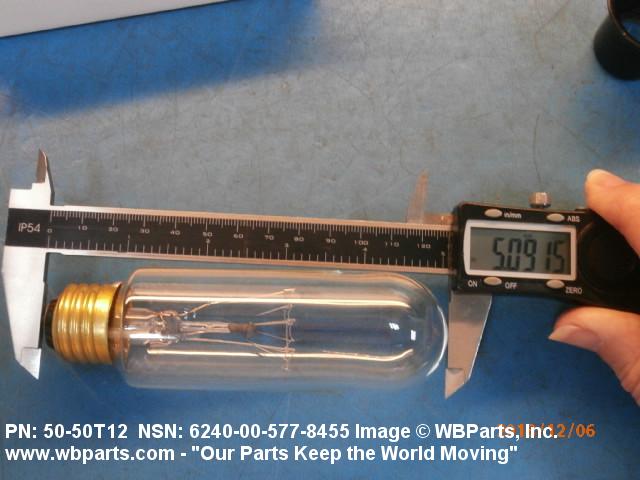

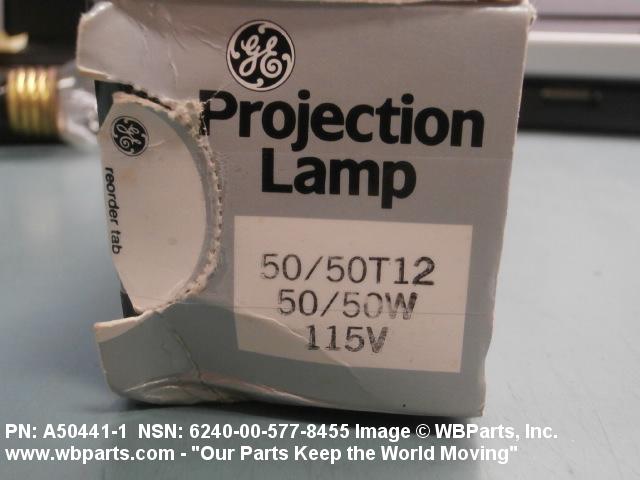

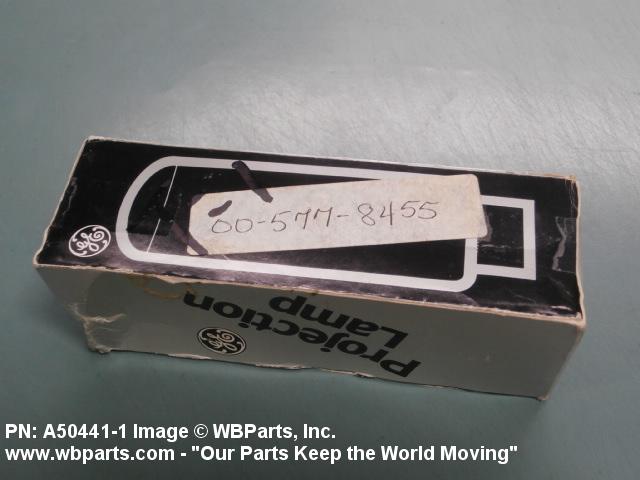

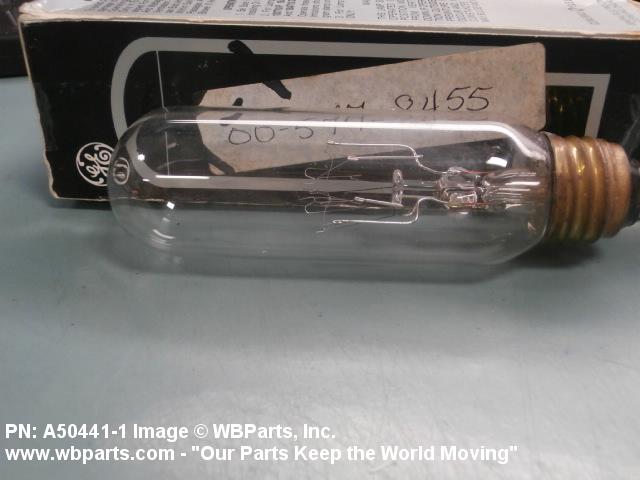

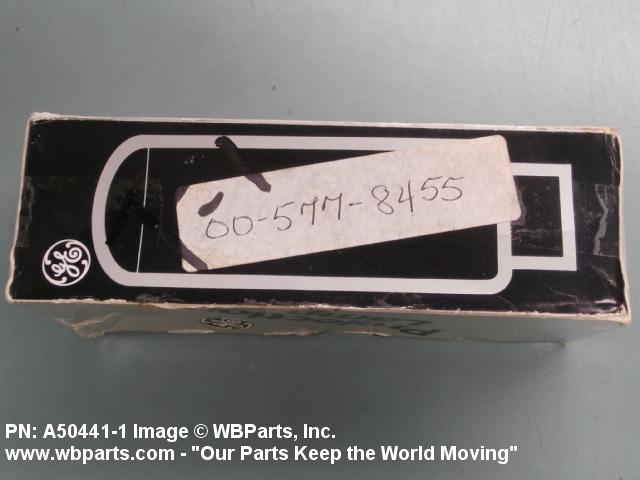

Drawings & Photos | NSN 6240-00-577-8455
Demand History | NSN 6240-00-577-8455
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6240-00-577-8455 | 2024-09-274 | 10 | TW |
| 6240-00-577-8455 | 2024-01-15 | 20 | NG |
| MS155452 | 2022-10-284 | 1 | United States |
| 6240-00-577-8455 | 2022-03-75 | 40 | US |
| 6240-00-577-8455 | 2019-07-182 | 1750 | DIBBS |
| 6240-00-577-8455 | 2019-06-155 | 7117 | DIBBS |
| 6240-00-577-8455 | 2019-06-154 | 5353 | GU |
| 6240-00-577-8455 | 2019-06-153 | 5353 | DIBBS |
| 6240-00-577-8455 | 2019-05-126 | 1825 | DIBBS |
| 6240-00-577-8455 | 2019-04-119 | 1764 | DIBBS |
| 6240-00-577-8455 | 2019-03-64 | 850 | DIBBS |
| 6240-00-577-8455 | 2018-12-337 | 2 | United States |
| 6240-00-577-8455 | 2016-02-56 | 1 | DIBBS-RFPs |
| 6240-00-577-8455 | 2015-04-103 | 10 | United States |
| 6240-00-577-8455 | 2014-05-133 | 5 | United States |
| 6240-00-577-8455 | 2011-07-211 | 4764 | DIBBS |
| 6240-00-577-8455 | 2011-05-143 | 2490 | DIBBS |
| 6240-00-577-8455 | 2011-04-97 | 2 | US |
| 6240-00-577-8455 | 2011-03-84 | 971 | DIBBS |
| 9S4639LTYRSSS | 2011-01-04 | 10 | US |
| 6240-00-577-8455 | 2010-10-298 | 1822 | DIBBS |
| 6240-00-577-8455 | 2010-08-222 | 1773 | DIBBS |
| 7N2038 | 2010-08-216 | 1226 | US |
| 6240-00-577-8455 | 2010-06-175 | 1700 | DIBBS |
| 6240-00-577-8455 | 2010-04-120 | 1226 | DIBBS |
| 6240-00-577-8455 | 2010-01-26 | 1355 | DIBBS |
| 6240-00-577-8455 | 2009-09-244 | 2 | US |
Cross Reference | NSN 6240-00-577-8455
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 16726 | 08805 | GENERAL ELECTRIC COMPANY DBA GE |
| 37508-9 | 62607 | PHILIPS ELECTRONICS NORTH AMERICA CORPORATION |
| 50-50T12 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| 50-50T12 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 50-50T12-115V | 08108 | LAMP INDUSTRY FOR USE WITH INDUSTRY |
| 50-50T12-115V | 62607 | PHILIPS ELECTRONICS NORTH AMERICA CORPORATION |
| 50-50T12-115V-9 -S4639L | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 7N2038 | 11083 | CATERPILLAR INC. DBA CATERPILLAR |
| 9-S-4639-L TYRSS-S | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
| 9-S-4639-L TYRSS-S | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| A-A-2070 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| A-A-50441 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| A50441-1 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| MS15545-2 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS17780-14 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6240-00-577-8455
Related Products | NSN 6240-00-577-8455
Technical Data | NSN 6240-00-577-8455
| Characteristic | Specifications |
|---|---|

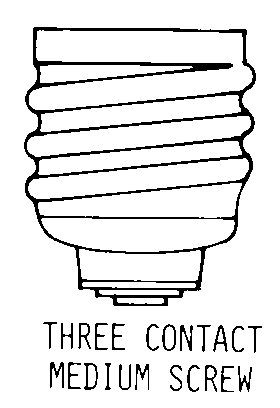

| BASE STYLE | A4A THREE CONTACT MEDIUM SCREW |
| BULB STYLE | B25 T |
| BULB DESIGNATOR | T-12 |
| OVERALL LENGTH | 5.312 INCHES MAXIMUM |
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT |
| EMITTED LIGHT CHARACTERISTIC | WHITE |
| FILAMENT DESIGNATION | C-5/C-9 |
| WATTAGE RATING | 50.000 WATTS |
| VOLTAGE RATING | 115.000 VOLTS NOMINAL |
| CURRENT RATING FOR WHICH DESIGNED | NOT RATED |
| LIGHT OUTPUT RATING | 375.000 LUMENS NOMINAL SINGLE RATING |
| RATED AVERAGE LIFE | HOURS |
| AVERAGE LIFE RATING IN HOURS | 750.0 |
| BURNING POSITION | BASE DOWN |
| FILAMENT HEAVY DUTY SERVICE RATING | NOT RATED |
| LIGHT CENTER LENGTH | 3.000 INCHES NOMINAL |
| MANUFACTURERS CODE | 58536 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | A-A-50441 |
| MANUFACTURERS CODE | 58536 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | A50441-1 |
Restrictions/Controls & Freight Information | NSN 6240-00-577-8455
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109550 | LAMPS(BULBS) ELEC INCANDESCENT NOI |
| Less than car load rating | ||
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 761 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6240-00-577-8455
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
