NSN 6240-00-555-6347 ASC1567007, BP36.28.0401, BP36280401

Product Details | INCANDESCENT LAMP

6240-00-555-6347 An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern.

Part Alternates: ASC1567007, BP36.28.0401, BP36280401, CM7387, ELS5014121001, EL-S-5-014121-001, GI 7387, GI7387, JKL7387, LA714, LTX7387, OL387BP, OL-387BP, PL7387, 714, 7387, 7387 AS25, 7387AS25, 796BP, 800MN4, 800M-N4, 801A276, 9001060-05, 94727, 0060007097, 006-0007097, 12872321, 15500060, 1-550-0060, 1803577, 1842963806, 184-29638-06, 1885763PIECE6, 211-45940-1, 21400213, 2140-0213, 2173071, 2-173-071, 246686, 29183204, 29183-204, 30731620001, 30731620-001, 321075-010, 367-012-003, 3901246686, 3901-246686, 399820-005, 479L211, 479L2-11, 5001627387, 500162-7387, 5886246, 5C84686H01, 5C84686H-01, 6240-00-555-6347, 00-555-6347, 6240005556347, 005556347, 367012003, 399820005, 321075010, 211459401, 900106005

Lighting Fixtures and Lamps | Electric Lamps

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
62	22 OCT 1969	00-555-6347	00727 ( LAMP, INCANDESCENT )

Drawings & Photos | NSN 6240-00-555-6347

Part Number	Request Date	QTY	Origin
7387	2024-05-128	300	United States
CM7387	2018-10-284	200	RO
7387	2018-04-101	500	US
714	2017-05-132	10	United States
7387	2016-07-190	1	us
OL387BP	2014-07-211	100	US
OL387BP	2014-07-203	14	US
OL387BP	2014-05-128	150	Spain
6240-00-555-6347	2014-05-121	1	DIBBS-RFPs
6240-00-555-6347	2014-04-119	1	DIBBS-RFPs
6240-00-555-6347	2013-08-220	4280	DIBBS
PL7387	2012-07-199	3	US
OL387BP	2012-04-115	203
6240-00-555-6347	2012-02-46	2205	DIBBS
6240-00-555-6347	2011-10-282	30	BD
7387	2011-08-224	1	IN
7387	2011-08-213	19	IN
6240-00-555-6347	2011-02-39	2383	DIBBS
6240-00-555-6347	2010-06-159	556	DIBBS
6240-00-555-6347	2010-03-85	3869	DIBBS
6240-00-555-6347	2010-02-40	556	DIBBS
7387	2006-04-103	1	us

Cross Reference | NSN 6240-00-555-6347

Part Number	Cage Code	Manufacturer
006-0007097	42470	NCR CORPORATION DBA NCR
1-550-0060	12356	CINCINNATI MACHINE CO
12872321	92379	UNISYS CORP
1803577	03956	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS
1803577	56232	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
184-29638-06	04773	GTE COMMUNICATION SYSTEMS CORP
1885763PIECE6	03956	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS
2-173-071	24229	GEORGE RISK INDUSTRIES, INC. DIV GEORGE RISK INDUSTRIES
211-45940-1	26285	HADRON INC COMMUNICATIONS PRODUCTS DIV
2140-0213	1LQK8	KEYSIGHT TECHNOLOGIES, INC.
2140-0213	28480	HEWLETT-PACKARD COMPANY DBA HEWLETT-PACKARD CO. OR HP
246686	89536	FLUKE CORPORATION
29183-204	18911	EATON CORP COUNT CONTROL/SYSTEMS DIV
30731620-001	28009	SYPRIS ELECTRONICS, LLC DIV SYPRIS ELECTRONICS, LLC -
321075-010	71482	CP CLARE CORP NORTH AMERICAN SALES OPERATIONS
367-012-003	07421	INTERSTATE ELECTRONICS CORPORATION DBA L-3 INTERSTATE ELECTRONICS
3901-246686	89536	FLUKE CORPORATION
399820-005	89944	KOLLSMAN, INC.
479L2-11	82389	SWITCHCRAFT INC.
500162-7387	2N491	WESTERN UNION TELEGRAPH CO PRINCIPAL MANAGEMENT FACILITY
5886246	03640	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
5C84686H-01	00126	ACME BULLETIN AND DIRECTORY BOARD CORP
714	76854	ELECTRO SWITCH CORP. DBA OAK GRISGSBY
7387	00779	TYCO ELECTRONICS CORPORATION
7387	05464	INDUSTRIAL ELECTRONIC ENGINEERS, INC.
7387	08108	LAMP INDUSTRY FOR USE WITH INDUSTRY
7387	08806	GENERAL ELECTRIC CO MINIATURE LAMP PRODUCTS DEPT
7387	55335	JKL COMPONENTS CORPORATION
7387	71744	CHICAGO MINIATURE LIGHTING LLC DBA CHICAGO MINIATURE OPTOELECTRON
7387	92966	GTE PRODUCTS CORP LIGHTING PRODUCTS GROUP HILLSBORO
7387	95146	ALCO ELECTRONIC PRODUCTS INC
7387	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
7387	K0351	PHILIPS ELECTRICAL LTD
7387	R1120	SATAIR A/S
7387 AS25	05464	INDUSTRIAL ELECTRONIC ENGINEERS, INC.
796BP	K3197	MICRO DISPLAY DEVICES LTD
800M-N4	01121	ROCKWELL AUTOMATION, INC.
801A276	19899	ELECTRIC MACHINERY DRESSER INDUSTRIES INC
801A276	64051	NTU CIRCUITS INC
9001060-05	77948	SINGER CO THE
94727	08458	EDO CANADA LTD
ASC1567007	Z4779	ASC PTY LTD
BP36.28.0401	FAGN5	JC LAMPES
CM7387	71744	CHICAGO MINIATURE LIGHTING LLC DBA CHICAGO MINIATURE OPTOELECTRON
CM7387	R1120	SATAIR A/S
EL-S-5-014121-001	96044	INDUSTRIAL NUCLEONICS CORP
GI 7387	71744	CHICAGO MINIATURE LIGHTING LLC DBA CHICAGO MINIATURE OPTOELECTRON
JKL7387	55335	JKL COMPONENTS CORPORATION
LA714	76854	ELECTRO SWITCH CORP. DBA OAK GRISGSBY
LTX7387	61342	LAMPTRONIX CO LTD
OL-387BP	S3774	OSHINO ELECTRIC LAMP WORKS LTD
PL7387	58451	PRECISION LAMP INC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 6240-00-555-6347

Compare

Related Products | NSN 6240-00-555-6347

6240-00-556-5554, 6240-00-556-8011, 6240-00-556-8012, 6240-00-556-8115, 6240-00-556-8117

Technical Data | NSN 6240-00-555-6347

Characteristic	Specifications

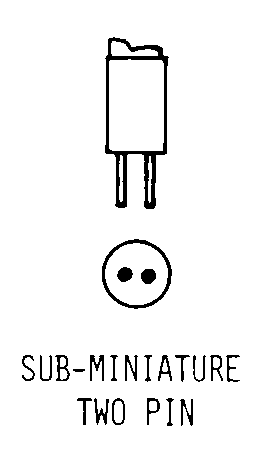

BASE STYLE	A64 SUB-MINIATURE TWO PIN

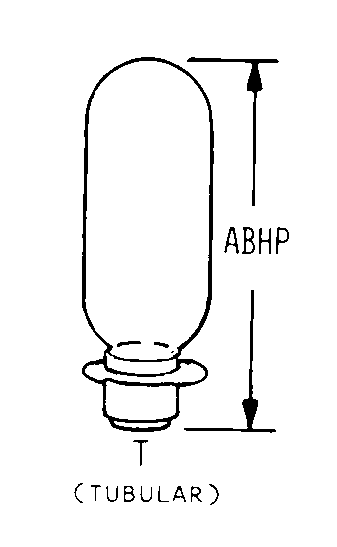

BULB STYLE	B25 T
BULB DESIGNATOR	T-1 3/4
OVERALL LENGTH	0.610 INCHES MAXIMUM
BULB LIGHT TRANSMISSION CHARACTERISTIC	TRANSPARENT
EMITTED LIGHT CHARACTERISTIC	COLORLESS
FILAMENT DESIGNATION	C-2F
WATTAGE RATING	1.120 WATTS
VOLTAGE RATING	28.000 VOLTS NOMINAL
CURRENT RATING FOR WHICH DESIGNED	0.040 AMPERES NOMINAL
LIGHT OUTPUT RATING	0.300 SPHERICAL CANDLEPOWER NOMINAL SINGLE RATING
RATED AVERAGE LIFE	HOURS
AVERAGE LIFE RATING IN HOURS	7000.0
BURNING POSITION	ANY ACCEPTABLE
FILAMENT HEAVY DUTY SERVICE RATING	NOT RATED
LIGHT CENTER LENGTH	0.500 INCHES NOMINAL
III END ITEM IDENTIFICATION	TORPEDO SYSTEMS, MK 46; DEFENSE METEOROLOGICAL SATELLITE PROGRAM (DMSP); AIRCRAFT, B-2 BOMBER (ATB); TICONDEROGA CLASS CG (47); SPRUANCE CLASS DD (963); SONAR SIGNAL PROCESSING SYS, AN/SQQ-28(V); TRAINER, B1-B AIRCRAFT; RADAR IFF SYSTEM AN/TPX-42A(V); AIRCRAFT, E-4B AIRBORNE COMMAND POST

Restrictions/Controls & Freight Information | NSN 6240-00-555-6347

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	109550	LAMPS(BULBS) ELEC INCANDESCENT NOI
Less than car load rating
Less than truck load rating	F	150.0
Water commodity Code	761	unknown
Originating Activity Code	CX	Defense Supply Center Richmond Richmond, VA 23297-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 6240-00-555-6347

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
