NSN 6240-00-446-3700 K210DS4101, 86LAN, 00-446-3700
Product Details | CARTRIDGE LAMP
6240-00-446-3700 An item consisting of an unbased lamp, either incandescent or glow, mounted in a sleeve. It has a projecting terminals and may also include a lens. For light emitting diodes which may or may not be mounted in a sleeve or a lamp base, see LIGHT EMITTING DIODE.
Part Alternates: K210DS4101, 86LAN, 6240-00-446-3700, 00-446-3700, 6240004463700, 004463700
Lighting Fixtures and Lamps | Electric Lamps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 01 JAN 1963 | 00-446-3700 | 24416 ( LAMP, CARTRIDGE ) |
Drawings & Photos | NSN 6240-00-446-3700
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6240-00-446-3700
Related Products | NSN 6240-00-446-3700
Technical Data | NSN 6240-00-446-3700
| Characteristic | Specifications |
|---|---|

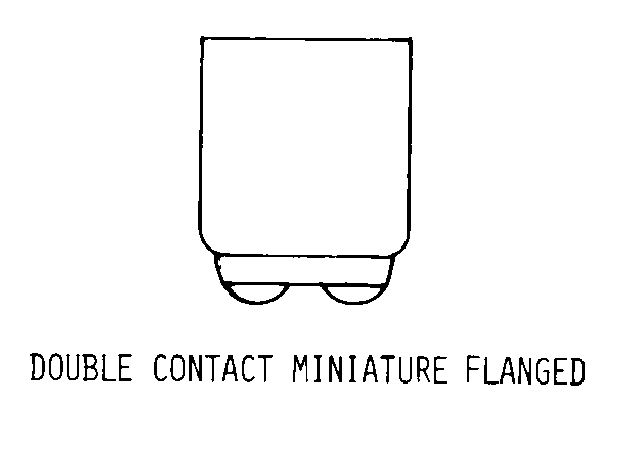

| BASE STYLE | A14 DOUBLE CONTACT MINIATURE FLANGED |
| CARTRIDGE STYLE | C4 SEALED PLASTIC |
| CARTRIDGE OVERALL LENGTH | 0.875 INCHES NOMINAL |
| CARTRIDGE OVERALL DIAMETER | 0.375 INCHES NOMINAL |
| PRIMARY LAMP TYPE | GLOW |
| FILLING GAS TYPE | NEON |
| LIGHT INTENSITY LEVEL | HIGH |
| CIRCUIT VOLTAGE RATING IN VOLTS | 110.000 MINIMUM AND 220.000 MAXIMUM |
| GAS STRIKING VOLTAGE RATING IN VOLTS AND CURRENT TYPE | 65.0 AC MAXIMUM AND 90.0 DC MAXIMUM 1ST VOLTAGE 95.0 AC MAXIMUM AND 135.0 DC MAXIMUM 2ND VOLTAGE |
| WATTAGE RATING | 0.040 WATTS AND 0.010 WATTS |
| RESISTOR RATING AND LOCATION | NOT RATED |
| RATED AVERAGE LIFE | HOURS |
| AVERAGE LIFE RATING IN HOURS | 25000.0 |
| MATERIAL | PLASTIC LENS PLASTIC SLEEVE |
| LENS LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT |
| LENS COLOR | COLORLESS |
| FEATURES PROVIDED | FLUTED LENS |
| MANUFACTURERS CODE | 01009 |
| DESIGN CONTROL REFERENCE | 86LAN |
Restrictions/Controls & Freight Information | NSN 6240-00-446-3700
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109700 | LAMP OR LIGHTING FIXTURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 761 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6240-00-446-3700
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
