NSN 6240-00-246-5060 MS156124, MS15612-4, MS15612TS159
Product Details | INCANDESCENT LAMP
6240-00-246-5060 An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern.
Part Alternates: MS156124, MS15612-4, MS15612TS159, A10471381, A1047138-1, BA1001026, BA10010-26, S1503, S-1503, TS130, TS-130, W-L-00111/54, WL0011154, OL1767, OL-1767, PK4301-1 PC 66, PK43011PC66, PL1767, 9252156-29, 870676, 87-0676, 12Z1300635, 12Z13006-35, 15A13951, 15A1395-1, 1746968, 1767, 1767TS159, 1767-TS-159, 288A896BEP4, 30801004, 308-01-004, 6240-00-246-5060, 00-246-5060, 6240002465060, 002465060, 925215629
Lighting Fixtures and Lamps | Electric Lamps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 01 JAN 1963 | 00-246-5060 | 00727 ( LAMP, INCANDESCENT ) |

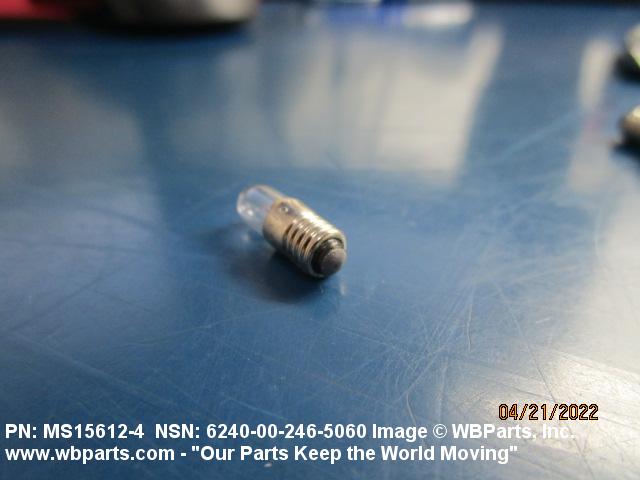

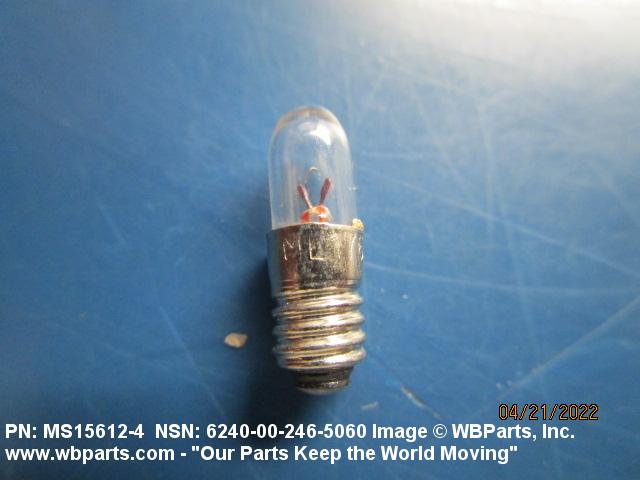

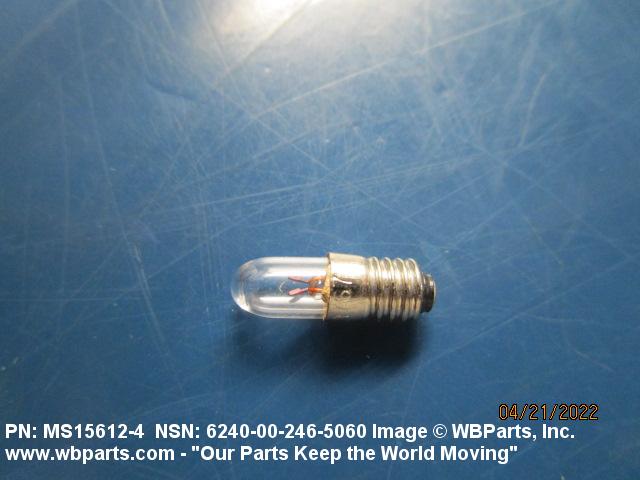

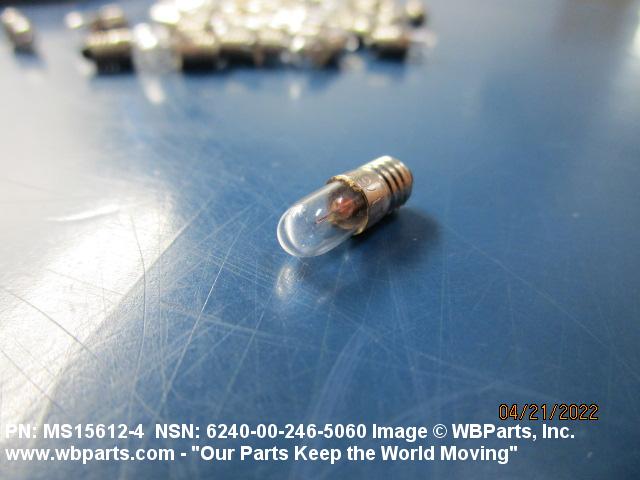

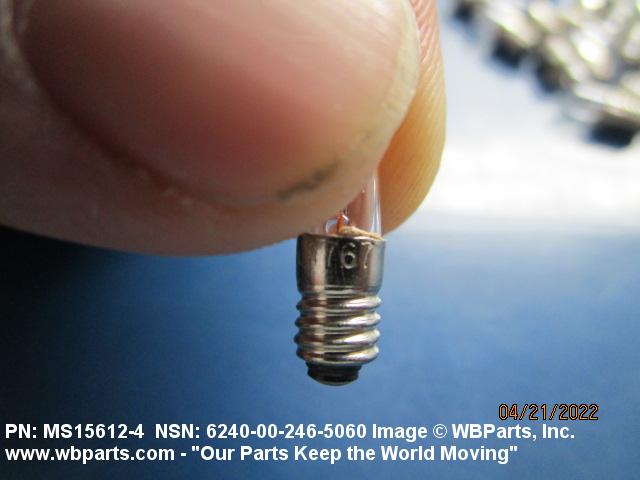

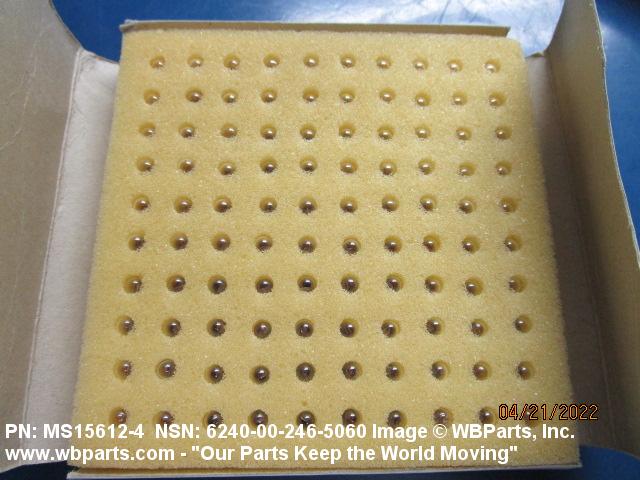

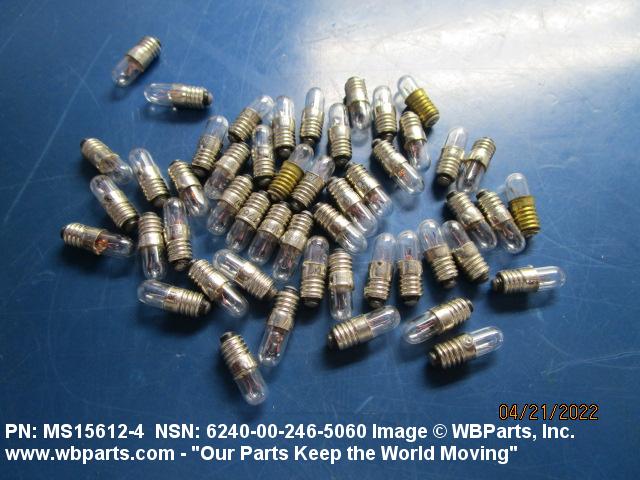

Drawings & Photos | NSN 6240-00-246-5060
Demand History | NSN 6240-00-246-5060
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 15A1395-1 | 2023-02-52 | 19401 | DIBBS |
| 1767 | 2023-02-52 | 19401 | DIBBS |
| 15A1395-1 | 2023-02-40 | 19401 | DIBBS |
| 1767 | 2023-02-40 | 19401 | DIBBS |
| 15A1395-1 | 2022-08-220 | 19401 | DIBBS |
| 1767 | 2022-08-220 | 19401 | DIBBS |
| 15A1395-1 | 2022-07-209 | 19401 | DIBBS |
| 1767 | 2022-07-209 | 19401 | DIBBS |
| MS156124 | 2022-03-84 | 250 | United States |
| 15A1395-1 | 2021-09-252 | 544 | DIBBS |
| 1767 | 2021-09-252 | 544 | DIBBS |
| 15A1395-1 | 2020-09-259 | 3618 | DIBBS |
| 1767 | 2020-09-259 | 3618 | DIBBS |
| 15A1395-1 | 2020-08-244 | 3618 | DIBBS |
| 1767 | 2020-08-244 | 3618 | DIBBS |
| 6240-00-246-5060 | 2014-09-255 | 27000 | DIBBS |
| 1767 | 2012-07-209 | 4 | United States |
| 6240-00-246-5060 | 2011-08-213 | 23000 | DIBBS |
| 6240-00-246-5060 | 2011-06-181 | 10000 | US |
| 6240-00-246-5060 | 2011-06-180 | 10440 | DIBBS |
Cross Reference | NSN 6240-00-246-5060
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12Z13006-35 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 15A1395-1 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 1746968 | 65054 | WESTINGHOUSE ELECTRIC CORP POWER GENERATION-GENERATOR DIV |
| 1767 | 08108 | LAMP INDUSTRY FOR USE WITH INDUSTRY |
| 1767 | 08806 | GENERAL ELECTRIC CO MINIATURE LAMP PRODUCTS DEPT |
| 1767 | 55335 | JKL COMPONENTS CORPORATION |
| 1767 | 79500 | WESTINGHOUSE ELECTRIC CORP |
| 1767 | 92966 | GTE PRODUCTS CORP LIGHTING PRODUCTS GROUP HILLSBORO |
| 1767 | 94988 | COOPER INDUSTRIES INC CHAMPION AVIATION PRODUCTS |
| 1767 | 95263 | LIGHTING COMPONENTS AND DESIGN INCORPORATED |
| 1767 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 1767 | F0022 | MINILAMPE |
| 1767-TS-159 | 08108 | LAMP INDUSTRY FOR USE WITH INDUSTRY |
| 288A896BEP4 | 02989 | GENERAL ELECTRIC CO GE DRIVE SYSTEMS |
| 308-01-004 | 58475 | WESTWOOD CORPORATION DBA NMP DIVISION |
| 87-0676 | 19397 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC. |
| 87-0676 | 63409 | TREMETRICS INC DIV OF FINNIGAN |
| 9252156-29 | 35917 | DIRECTOR GENERAL MILITARY ENGINEERING OPNS |
| A1047138-1 | 28527 | EXELIS INC. DBA ELECTRONIC SYSTEMS, INTEGRATED |
| BA10010-26 | 01714 | LUCENT TECHNOLOGIES INC ADVANCED TECHNOLOGY SYSTEMS |
| BA10010-26 | 08806 | GENERAL ELECTRIC CO MINIATURE LAMP PRODUCTS DEPT |
| MS15612-4 | 08108 | LAMP INDUSTRY FOR USE WITH INDUSTRY |
| MS15612-4 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS15612-4 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS15612TS159 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| OL-1767 | S3774 | OSHINO ELECTRIC LAMP WORKS LTD |
| PK4301-1 PC 66 | 20049 | THE ELECTRIC TACHOMETER CORP. |
| PL1767 | 58451 | PRECISION LAMP INC |
| S-1503 | 58815 | SHOKAI FAR EAST LTD. |
| TS-130 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| TS130 | 08806 | GENERAL ELECTRIC CO MINIATURE LAMP PRODUCTS DEPT |
| TS130 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| W-L-00111/54 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6240-00-246-5060
Related Products | NSN 6240-00-246-5060
Technical Data | NSN 6240-00-246-5060
| Characteristic | Specifications |
|---|---|
| BASE STYLE | A2G MIDGET SCREW |
| BULB STYLE | B25 T |
| BULB DESIGNATOR | T-1 3/4 |
| OVERALL LENGTH | 0.594 INCHES MAXIMUM |
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT |
| EMITTED LIGHT CHARACTERISTIC | COLORLESS |
| FILAMENT DESIGNATION | C-2R |
| WATTAGE RATING | 0.500 WATTS |
| VOLTAGE RATING | 2.500 VOLTS NOMINAL |
| CURRENT RATING FOR WHICH DESIGNED | 0.200 AMPERES NOMINAL |
| LIGHT OUTPUT RATING | 0.200 SPHERICAL CANDLEPOWER NOMINAL SINGLE RATING |
| RATED AVERAGE LIFE | HOURS |
| AVERAGE LIFE RATING IN HOURS | 500.0 |
| BURNING POSITION | ANY ACCEPTABLE |
| FILAMENT HEAVY DUTY SERVICE RATING | NOT RATED |
| LIGHT CENTER LENGTH | 0.520 INCHES NOMINAL |
| SPECIFICATION/STANDARD DATA | 08108-1767 MANUFACTURERS STANDARD |
| III END ITEM IDENTIFICATION | GUIDED MISSILE LAUNCHING SYSTEM, MK26 (GMLS); BOILERS, 1200 PSI; CHILLED WATER A/C SYSTEMS; FIRE PUMPS; L.P. COMPRESSORS; SYSTEMS, 02N2; GUN, 5-IN./54 CAL, MK-42 & 45; ELEVATORS, CARGO/WEAPONS; ELEVATORS, AIRCRAFT |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | W-L-00111/54 |
Restrictions/Controls & Freight Information | NSN 6240-00-246-5060
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109550 | LAMPS(BULBS) ELEC INCANDESCENT NOI |
| Less than car load rating | ||
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 761 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6240-00-246-5060
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
R EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
R EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
R EA : Each |
