NSN 6240-00-223-9105 M150989001, M15098-9-001, MILL15098
Product Details | GLOW LAMP
6240-00-223-9105 An item in which a gas is ionized to produce light energy of low persistence. It may include internal current limiting resistor.
Part Alternates: M150989001, M15098-9-001, MILL15098, NE42, R9A, 106859, 6515026A14, 65-15026A-14, 6240-00-223-9105, 00-223-9105, 6240002239105, 002239105
Lighting Fixtures and Lamps | Electric Lamps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 01 JAN 1963 | 00-223-9105 | 05758 ( LAMP, GLOW ) |
Drawings & Photos | NSN 6240-00-223-9105
Demand History | NSN 6240-00-223-9105
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6240-00-223-9105 | 2018-11-310 | 173 | DIBBS |
| 6240-00-223-9105 | 2018-09-273 | 33 | DIBBS |
| 6240-00-223-9105 | 2013-04-98 | 29 | DIBBS |
| 6240-00-223-9105 | 2013-03-72 | 29 | DIBBS |
| 6240-00-223-9105 | 2012-08-241 | 29 | DIBBS |
| 6240-00-223-9105 | 2011-12-349 | 18 | DIBBS |
| 6240-00-223-9105 | 2011-12-340 | 18 | DIBBS |
Cross Reference | NSN 6240-00-223-9105
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 106859 | 06KW9 | LUCENT TECHNOLOGIES INC DBA FEDERAL MARKETING GROUP |
| 106859 | 64959 | AMERICAN TELEPHONE AND TELEGRAPH CO |
| 106859 | 70408 | AT AND T CORP |
| 65-15026A-14 | 50012 | MOTOROLA COMMUNICATIONS GROUP PARTS DEPT |
| M15098-9-001 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILL15098 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| NE42 | 08108 | LAMP INDUSTRY FOR USE WITH INDUSTRY |
| R9A | 80204 | AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6240-00-223-9105
Related Products | NSN 6240-00-223-9105
Technical Data | NSN 6240-00-223-9105
| Characteristic | Specifications |
|---|---|

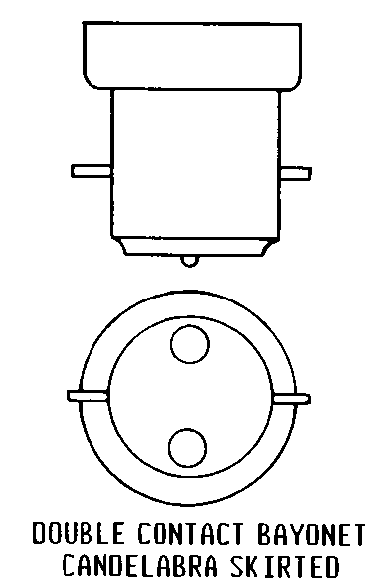

| BASE STYLE | A24A DOUBLE CONTACT BAYONET CANDELABRA SKIRTED |
| BULB STYLE | B22 S |
| BULB DESIGNATOR | S-14 |
| OVERALL LENGTH | 3.938 INCHES MAXIMUM |
| EMITTED LIGHT CHARACTERISTIC | RED |
| FILLING GAS TYPE | NEON |
| LIGHT INTENSITY LEVEL | NOT RATED |
| CIRCUIT VOLTAGE RATING IN VOLTS | 120.000 NOMINAL |
| GAS STRIKING VOLTAGE RATING IN VOLTS AND CURRENT TYPE | 60.0 AC MAXIMUM 1ST VOLTAGE 85.0 DC MAXIMUM 2ND VOLTAGE |
| WATTAGE RATING | 3.000 WATTS |
| RESISTOR RATING AND LOCATION | 2.200 KILOHMS EXTERNAL |
| RATED AVERAGE LIFE | HOURS |
| AVERAGE LIFE RATING IN HOURS | 10000.0 |
| SPECIFICATION/STANDARD DATA | 80204-R9A MANUFACTURERS STANDARD |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILL15098 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M15098-9-001 |
Restrictions/Controls & Freight Information | NSN 6240-00-223-9105
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109700 | LAMP OR LIGHTING FIXTURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 761 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6240-00-223-9105
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
