NSN 6240-00-183-0505 CFW022254801, CFW02-22548-01, 0N062635
Product Details | CARTRIDGE LAMP
6240-00-183-0505 An item consisting of an unbased lamp, either incandescent or glow, mounted in a sleeve. It has a projecting terminals and may also include a lens. For light emitting diodes which may or may not be mounted in a sleeve or a lamp base, see LIGHT EMITTING DIODE.
Part Alternates: CFW022254801, CFW02-22548-01, 0N062635, 6240-00-183-0505, 00-183-0505, 6240001830505, 001830505
Lighting Fixtures and Lamps | Electric Lamps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 08 JUN 1970 | 00-183-0505 | 24416 ( LAMP, CARTRIDGE ) |
Drawings & Photos | NSN 6240-00-183-0505
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6240-00-183-0505
Technical Data | NSN 6240-00-183-0505
| Characteristic | Specifications |
|---|---|

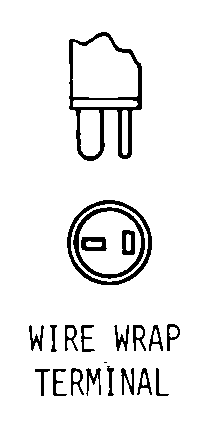

| BASE STYLE | A98 WIRE WRAP TERMINAL |
| CARTRIDGE STYLE | C1 FLUSH |
| CARTRIDGE OVERALL LENGTH | 1.019 INCHES NOMINAL |
| CARTRIDGE OVERALL DIAMETER | 0.350 INCHES NOMINAL |
| PRIMARY LAMP TYPE | INCANDESCENT |
| WATTAGE RATING | NOT RATED |
| VOLTAGE RATING | 6.300 VOLTS NOMINAL |
| CURRENT RATING FOR WHICH DESIGNED | 0.040 AMPERES NOMINAL |
| LIGHT OUTPUT RATING | 0.030 LUMENS NOMINAL SINGLE RATING |
| RATED AVERAGE LIFE | HOURS |
| AVERAGE LIFE RATING IN HOURS | 50000.0 |
| MATERIAL | PLASTIC, CELLULOSE ACETATE BUTYRATE LENS ALUMINUM ALLOY SLEEVE |
| LENS LIGHT TRANSMISSION CHARACTERISTIC | TRANSLUCENT |
| LENS COLOR | COLORLESS |
| FEATURES PROVIDED | PREAGED LAMP |
| TEST DATA DOCUMENT | 98230-0N062635 DRAWING |
Restrictions/Controls & Freight Information | NSN 6240-00-183-0505
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109610 | LAMPS(BULBS) ELEC SEALED BEAM |
| Less than car load rating | M | 85 |
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Q | Extremely fragile items including delicate instruments. |
| Special Handling Code | Q | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
