NSN 6240-00-155-7848 MS15570303, MS15570-303, MS25233303

Product Details | INCANDESCENT LAMP

6240-00-155-7848 An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern.

Part Alternates: MS15570303, MS15570-303, MS25233303, MS25233-303, ML303, ML-303, AA52463, A-A-52463, AA52463A06, AA52463-A06, AN3131303, AN3131-303, LTX303, PL303, WL00111, W-L-00111, W-L-00111/24, WL0011124, 8192084, 1540, 24006R1, 303, 33153, 56Z114D2, 6026102514, 6026-1025-14, 618017, 6240-00-155-7848, 00-155-7848, 6240001557848, 001557848

Lighting Fixtures and Lamps | Electric Lamps

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
62	01 JAN 1963	00-155-7848	00727 ( LAMP, INCANDESCENT )

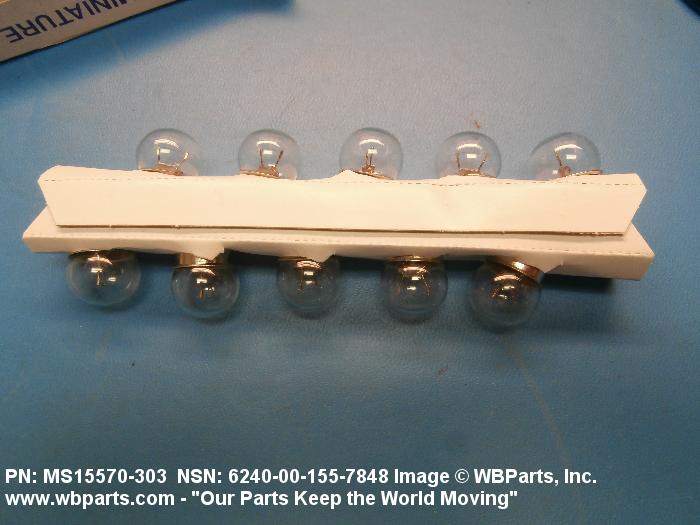

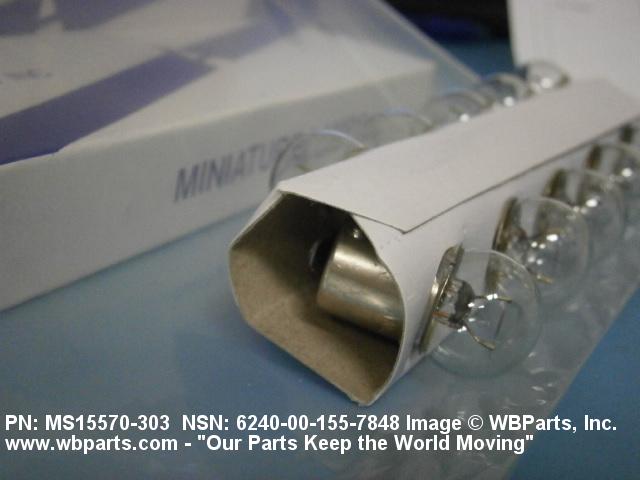

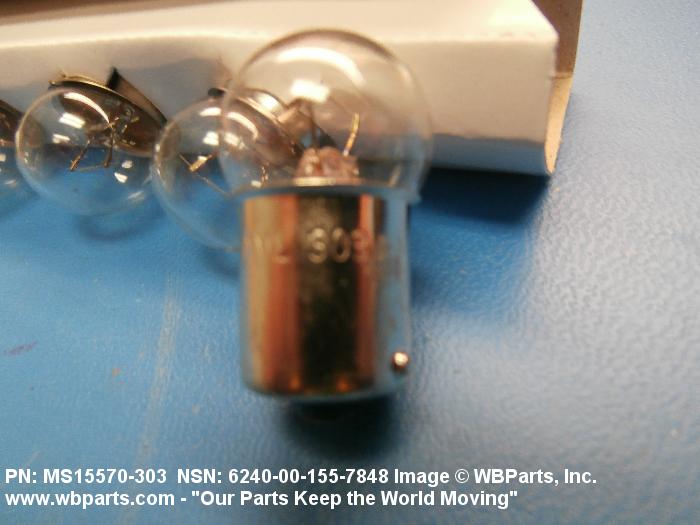

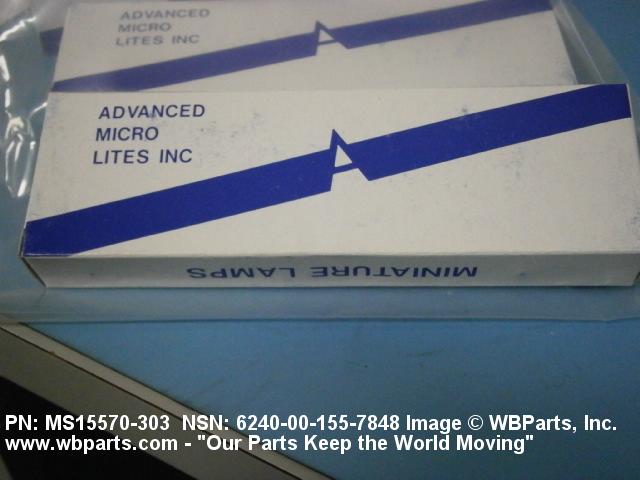

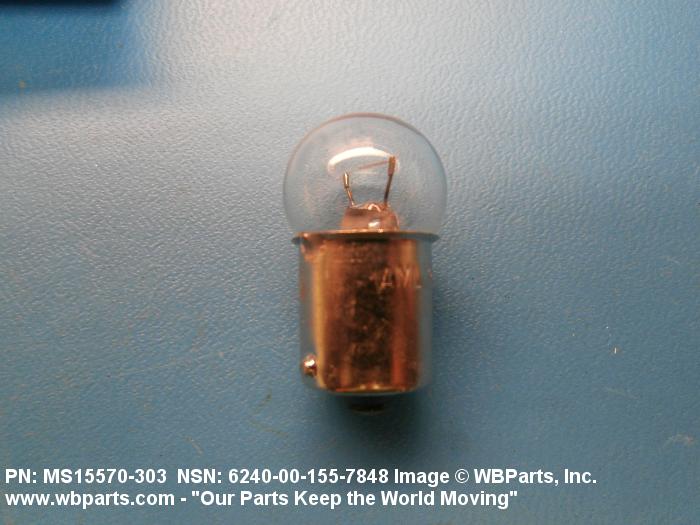

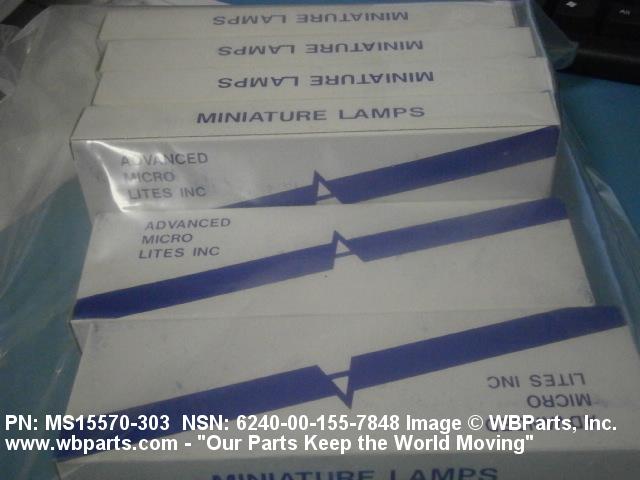

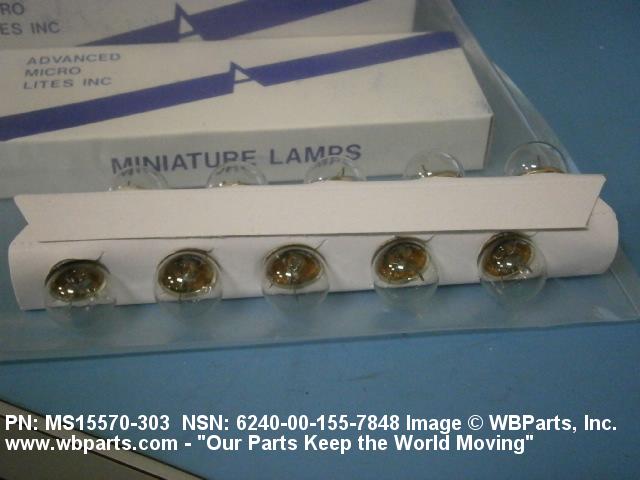

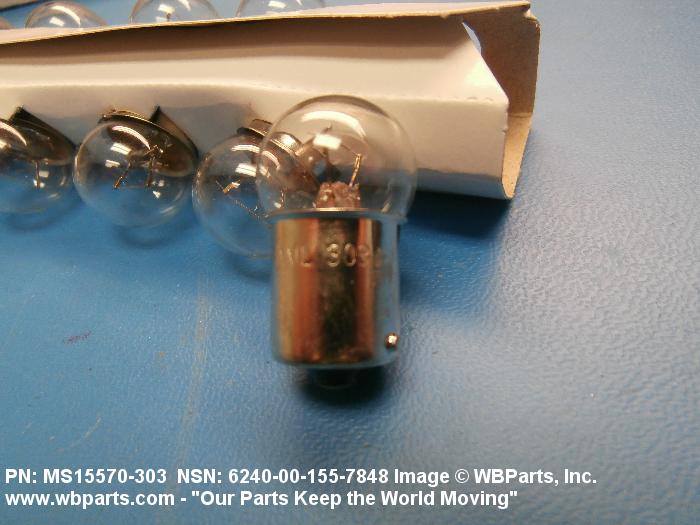

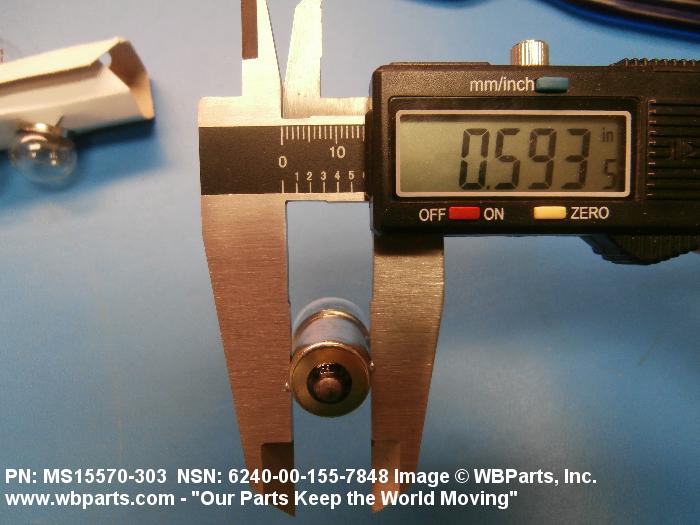

Drawings & Photos | NSN 6240-00-155-7848

Part Number	Request Date	QTY	Origin
6240-00-155-7848	2025-04-111	1149	DIBBS
6240-00-155-7848	2025-03-89	4440	DIBBS
6240-00-155-7848	2025-01-27	1308	DIBBS
6240-00-155-7848	2024-07-183	2	US
AN3131-303	2023-02-36	100	Argentina
6240-00-155-7848	2019-04-100	1	DIBBS-RFPs
MS15570303	2015-08-229	2	CL
6240-00-155-7848	2015-05-147	1527	DIBBS
6240-00-155-7848	2015-04-120	2183	DIBBS
6240-00-155-7848	2015-03-88	2082	DIBBS
MS25233303	2014-09-245	5	Turkey
6240-00-155-7848	2014-07-182	1300	DIBBS
6240-00-155-7848	2014-04-104	1	DIBBS-RFPs
303	2013-05-134	10	CZ
303	2013-05-134	10	CZ
MS15570-303	2013-02-53	50	Malaysia
MS15570-303	2012-11-310	33
MS15570303	2012-05-146	70	Italy
ML303	2012-05-122	200	ID
6240-00-155-7848	2011-10-292	20	Lithuania
6240-00-155-7848	2011-09-245	1	US
303	2011-08-224	225	IN
303	2011-08-213	225	IN
6240-00-155-7848	2011-06-160	0	DIBBS
6240-00-155-7848	2010-10-296	8	US
6240-00-155-7848	2010-09-264	100	Portugal
6240-00-155-7848	2010-03-87	10	United States
6240-00-155-7848	2009-09-264	1	Thailand
6240-00-155-7848	2006-10-295	2	Turkey
6240-00-155-7848	2006-10-294	2	Turkey
6240-00-155-7848	2006-10-294	2	Turkey
303	2006-07-192	100	China

Cross Reference | NSN 6240-00-155-7848

Part Number	Cage Code	Manufacturer
1540	75175	CONCORD INSTRUMENTS CORP
24006R1	89346	NAVISTAR INTL CORP TRUCK BR
303	00303	SHELLY ASSOCIATES INC.
303	00447	WABCO CONSTRUCTION AND MINING EQUIPMENT GROUP INDIANAPOLIS PLANT
303	08108	LAMP INDUSTRY FOR USE WITH INDUSTRY
303	08806	GENERAL ELECTRIC CO MINIATURE LAMP PRODUCTS DEPT
303	0HBG3	VEHICLE MAINTENANCE PROGRAM, INC. DBA V M P
303	13445	COLE HERSEE COMPANY
303	1GDM9	MORNING STAR INDUSTRIES INC.
303	32537	JOY TECHNOLOGIES INC. DBA MINING JOY MACHINERY
303	62607	PHILIPS ELECTRONICS NORTH AMERICA CORPORATION
303	71744	CHICAGO MINIATURE LIGHTING LLC DBA CHICAGO MINIATURE OPTOELECTRON
303	72914	GRIMES AEROSPACE COMPANY DBA HONEYWELL
303	80204	AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED
303	92966	GTE PRODUCTS CORP LIGHTING PRODUCTS GROUP HILLSBORO
303	F0022	MINILAMPE
303	R1120	SATAIR A/S
33153	96046	CRANE PUMPS & SYSTEMS, INC.
56Z114D2	27315	MORRIS MATERIAL HANDLING, INC.
6026-1025-14	36378	RAYTHEON TECHNICAL SERVICES COMPANY
618017	98897	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS
6240001557848	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
8192084	18876	U S ARMY AVIATION AND MISSILE COMMAND
A-A-52463	58536	FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES
AA52463-A06	58536	FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES
AN3131-303	80058	JOINT ELECTRONICS TYPE DESIGNATION SYSTEM
AN3131-303	81352	AIR FORCE-NAVY AERONAUTICAL SPECIFICATIONS
AN3131-303	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
LTX303	61342	LAMPTRONIX CO LTD
ML-303	61951	MICRO LAMPS INC.
MS15570-303	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS25233-303	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
PL303	58451	PRECISION LAMP INC
W-L-00111	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
W-L-00111/24	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 6240-00-155-7848

Compare

Related Products | NSN 6240-00-155-7848

6240-00-155-7849, 6240-00-155-7851, 6240-00-155-7853, 6240-00-155-7856, 6240-00-155-7857

Technical Data | NSN 6240-00-155-7848

Characteristic	Specifications
BASE STYLE	A18B SINGLE CONTACT BAYONET CANDELABRA
BULB STYLE	B9 G
BULB DESIGNATOR	G-6
OVERALL LENGTH	1.438 INCHES NOMINAL
BULB LIGHT TRANSMISSION CHARACTERISTIC	TRANSPARENT
EMITTED LIGHT CHARACTERISTIC	COLORLESS
FILAMENT DESIGNATION	C-2F
WATTAGE RATING	8.400 WATTS
VOLTAGE RATING	28.000 VOLTS NOMINAL
CURRENT RATING FOR WHICH DESIGNED	0.300 AMPERES NOMINAL
LIGHT OUTPUT RATING	6.000 SPHERICAL CANDLEPOWER NOMINAL SINGLE RATING
RATED AVERAGE LIFE	HOURS
AVERAGE LIFE RATING IN HOURS	500.0
BURNING POSITION	ANY ACCEPTABLE
FILAMENT HEAVY DUTY SERVICE RATING	NOT RATED
LIGHT CENTER LENGTH	0.750 INCHES NOMINAL
MANUFACTURERS CODE	58536
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	A-A-52463
MANUFACTURERS CODE	58536
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	AA52463-A06

Restrictions/Controls & Freight Information | NSN 6240-00-155-7848

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	109550	LAMPS(BULBS) ELEC INCANDESCENT NOI
Less than car load rating
Less than truck load rating	F	150.0
Water commodity Code	761	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 6240-00-155-7848

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	A EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	A EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	O	Ancillary Items/SL-3 Components 3
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	A EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	A EA : Each
