Product Details | INCANDESCENT LAMP

6240-00-017-4933 An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern.

Part Alternates: PL2331, WL111, 849546-114, 870851, 87-0851, 174933, 2331, 576312, 6240-00-017-4933, 00-017-4933, 6240000174933, 000174933, 849546114

Lighting Fixtures and Lamps | Electric Lamps

Supply Group (FSG) NSN Assign. NIIN
62 01 JAN 1963 00-017-4933

Drawings & Photos | NSN 6240-00-017-4933


Cross Reference | NSN 6240-00-017-4933

Part Number Cage Code Manufacturer
174933 24617 GENERAL MOTORS CORP
174933 7X677 GENERAL MOTORS LLC DBA GENERAL MOTORS
2331 08108 LAMP INDUSTRY FOR USE WITH INDUSTRY
2331 08806 GENERAL ELECTRIC CO MINIATURE LAMP PRODUCTS DEPT
2331 24445 GENERAL ELECTRIC CO AIR CONDITIONING DIVISION OF
2331 24446 GENERAL ELECTRIC CO
2331 24455 GENERAL ELECTRIC CO LAMP DIVISION OF CONSUMER
2331 94988 COOPER INDUSTRIES INC CHAMPION AVIATION PRODUCTS
576312 12204 DAIMLER CHRYSLER
849546-114 95301 RCA CORP CONSUMER ELECTRONICS
87-0851 63409 TREMETRICS INC DIV OF FINNIGAN
PL2331 58451 PRECISION LAMP INC
WL111 81348 FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6240-00-017-4933

Technical Data | NSN 6240-00-017-4933

Characteristic Specifications

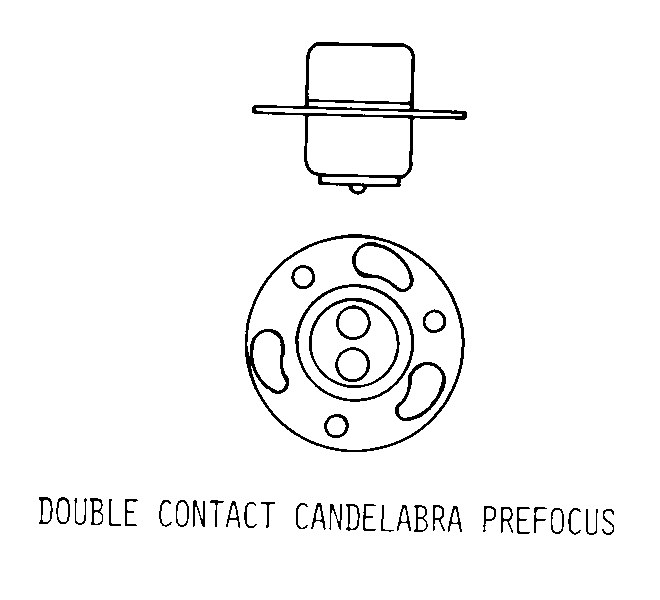

BASE STYLE A26 DOUBLE CONTACT CANDELABRA PREFOCUS
BULB STYLE B21 RP
BULB DESIGNATOR RP-11
OVERALL LENGTH 2.250 INCHES NOMINAL
BULB LIGHT TRANSMISSION CHARACTERISTIC TRANSPARENT
EMITTED LIGHT CHARACTERISTIC COLORLESS
FILAMENT DESIGNATION C-6,C-6
WATTAGE RATING 27.494 WATTS AND 27.838 WATTS
VOLTAGE RATING 5.900 VOLTS NOMINAL AND 6.200 VOLTS NOMINAL
CURRENT RATING FOR WHICH DESIGNED 4.660 AMPERES NOMINAL AND 4.490 AMPERES NOMINAL
LIGHT OUTPUT RATING 32.000 SPHERICAL CANDLEPOWER NOMINAL 1ST RATING 32.000 SPHERICAL CANDLEPOWER NOMINAL 2ND RATING
RATED AVERAGE LIFE HOURS
AVERAGE LIFE RATING IN HOURS 400.0
BURNING POSITION BASE DOWN TO HORIZONTAL
FILAMENT HEAVY DUTY SERVICE RATING NOT RATED
LIGHT CENTER LENGTH 1.180 INCHES NOMINAL
FEATURES PROVIDED HEAT RESISTANT GLASS
SPECIAL FEATURES 400.0 HOURS SECOND FILAMENT LIFE
MANUFACTURERS CODE 81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE WL111

Restrictions/Controls & Freight Information | NSN 6240-00-017-4933

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 109550 LAMPS(BULBS) ELEC INCANDESCENT NOI
Less than car load rating
Less than truck load rating F 150.0
Water commodity Code 761 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity H Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 6240-00-017-4933

Category Code Description
Materiel Category and Inventory ManagerJ Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity2 Stock Fund Secondary Items
Management Inventory Segment2 NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code0 Medical Materiel
Weapons Systems/End Item or Homogeneous Group00DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements CodeX Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDADepartment of the Army
Service OrganizationAU.S. Army
ReparabilityZThis is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price ValidationN The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
  • The price has not been analyzed or reviewed for accuracy.
  • ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation CodeSXSX:AF SICA RESIDUAL MMAC-OC-ALC
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
