NSN 6230-00-578-7548 M16377/17-232, M1637717232, M16377-17-232.1
Product Details | BED LIGHT
6230-00-578-7548 A light specifically designed to be hung or fastened on a bed, bunk, or stanchion adjacent thereto, to provide illumination of the bed or bunk area.
Part Alternates: M16377/17-232, M1637717232, M16377-17-232.1, M16377172321, M16377-17-232-1, MIL-F-16377/17, MILF1637717, 433, 55A3, 8045959312PC49, 6230-00-578-7548, 00-578-7548, 6230005787548, 005787548
Lighting Fixtures and Lamps | Electric Portable and Hand Lighting Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 01 JAN 1963 | 00-578-7548 | 00514 ( LIGHT, BED ) |

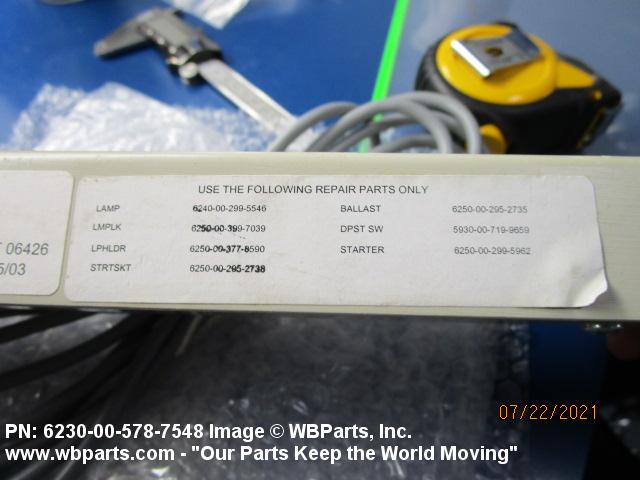

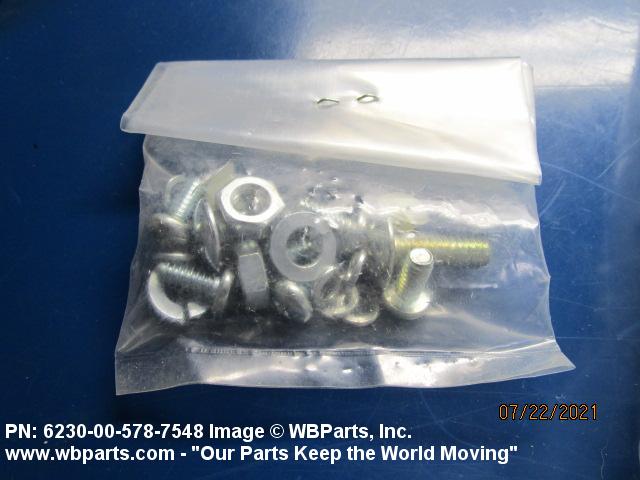

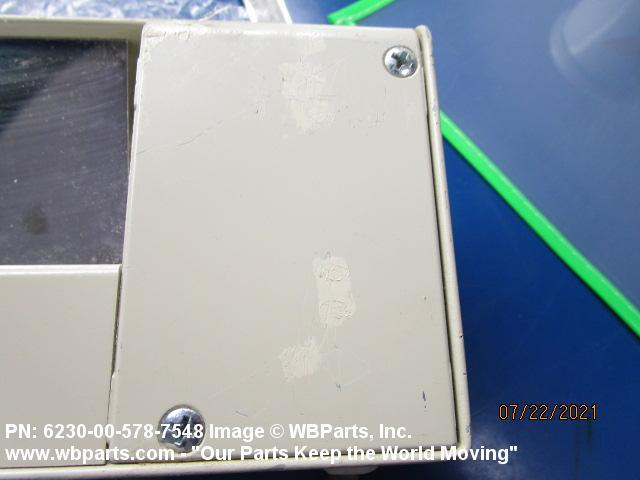

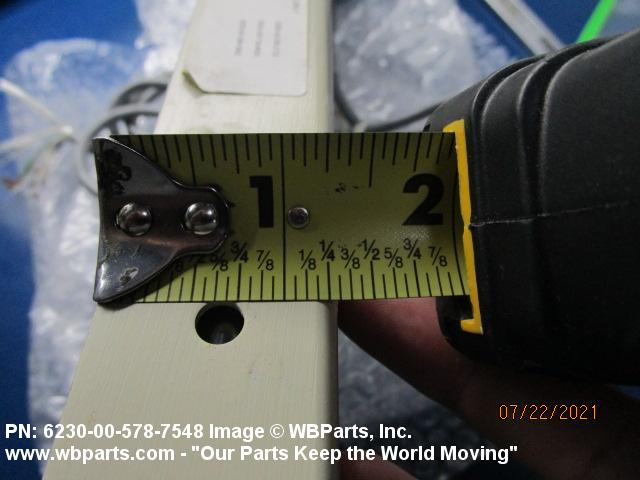

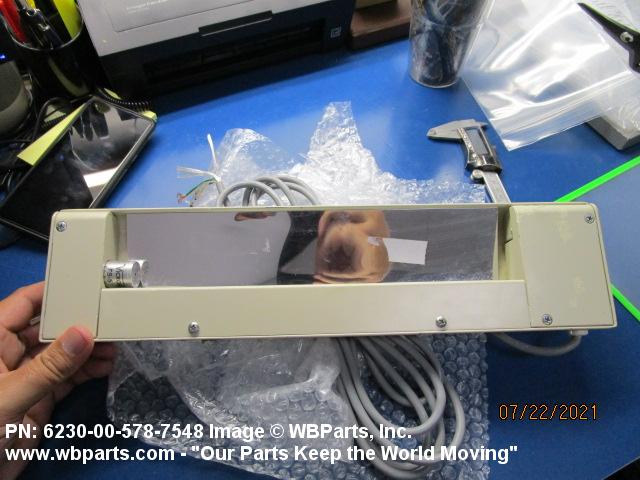

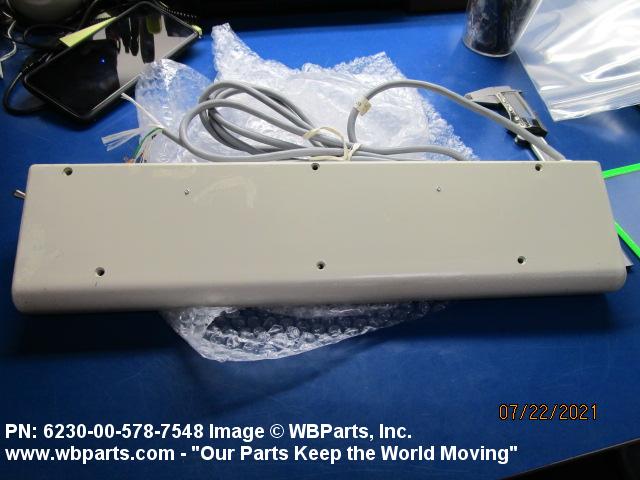

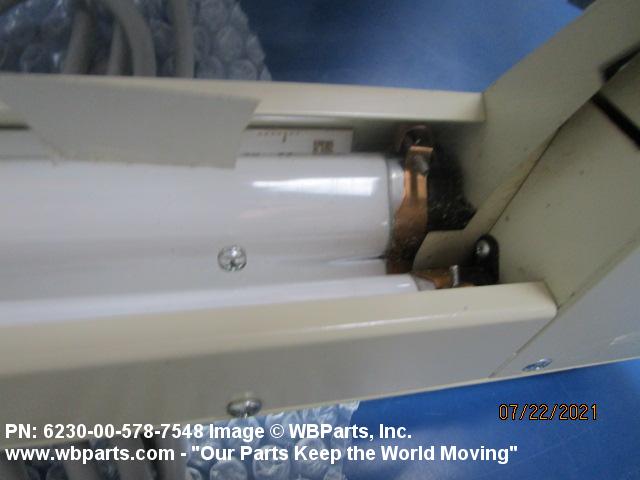

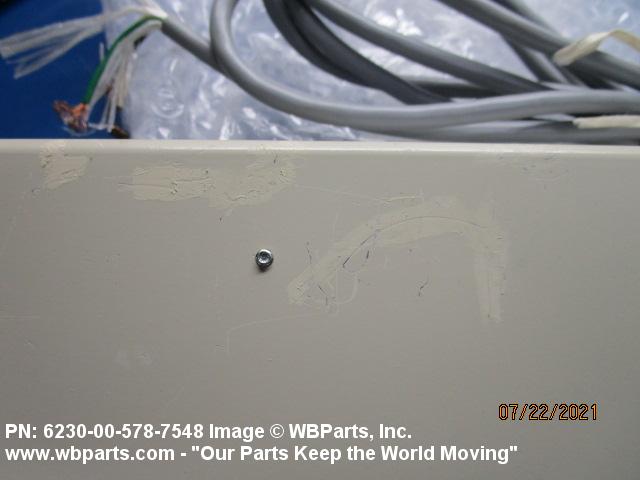

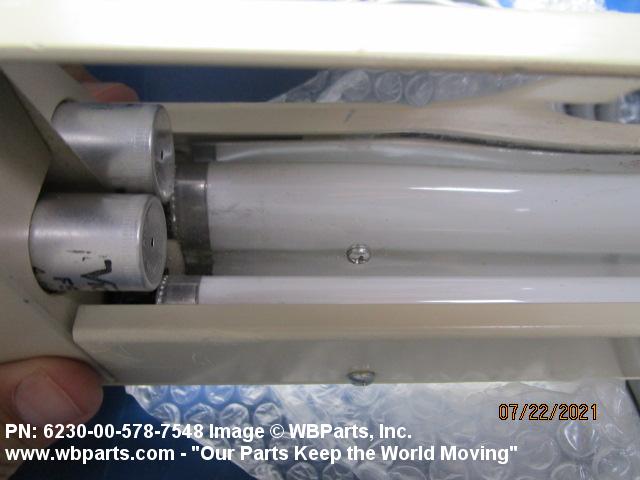

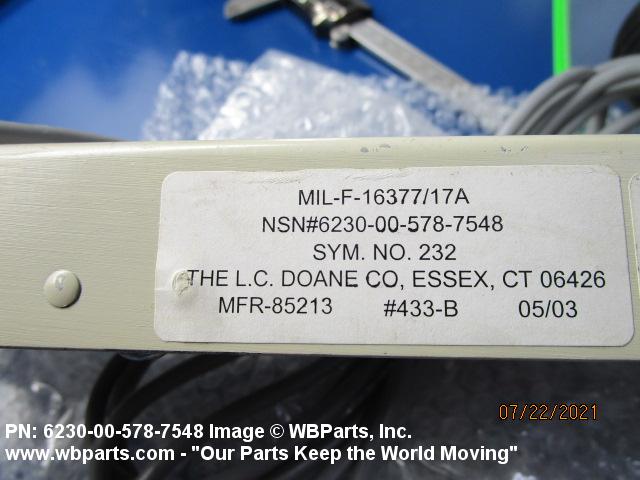

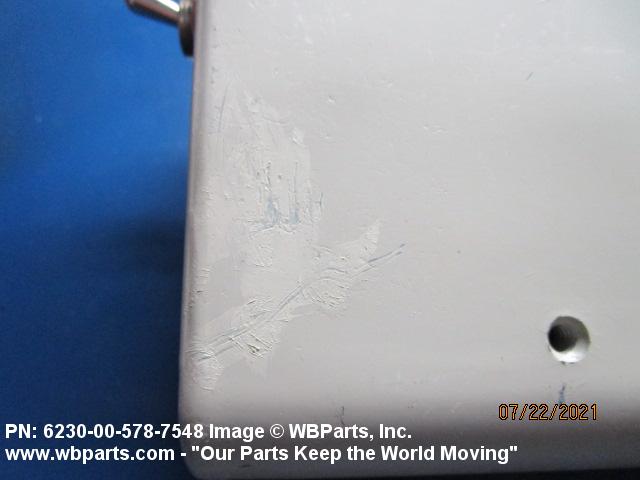

Drawings & Photos | NSN 6230-00-578-7548
Demand History | NSN 6230-00-578-7548
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6230-00-578-7548 | 2024-05-150 | 1 | US |
| 6230-00-578-7548 | 2021-07-183 | 15 | United States |
| 6230-00-578-7548 | 2021-07-183 | 20 | United States |
| 6230-00-578-7548 | 2019-05-136 | 1 | DIBBS-RFPs |
| 6230-00-578-7548 | 2017-12-355 | 1 | DIBBS-RFPs |
| 6230-00-578-7548 | 2013-08-233 | 480 | DIBBS |
| 6230-00-578-7548 | 2013-02-50 | 951 | DIBBS |
| 6230-00-578-7548 | 2012-09-255 | 776 | DIBBS |
| 6230-00-578-7548 | 2011-09-259 | 916 | DIBBS |
| 6230-00-578-7548 | 2011-06-172 | 220 | DIBBS |
| 6230-00-578-7548 | 2011-02-48 | 190 | DIBBS |
| 6230-00-578-7548 | 2010-04-97 | 6 | DIBBS |
| MILF1637717 | 2008-05-140 | 1 | US |
Cross Reference | NSN 6230-00-578-7548
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 433 | 85213 | L.C.DOANE COMPANY,THE |
| 55A3 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 804-5959312,PC49 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| M16377-17-232-1 | 85213 | L.C.DOANE COMPANY,THE |
| M16377-17-232.1 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| M16377/17-232 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-F-16377/17 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6230-00-578-7548
Related Products | NSN 6230-00-578-7548
Technical Data | NSN 6230-00-578-7548
| Characteristic | Specifications |
|---|---|
| OVERALL HEIGHT | 1.438 INCHES MINIMUM AND 1.562 INCHES MAXIMUM |

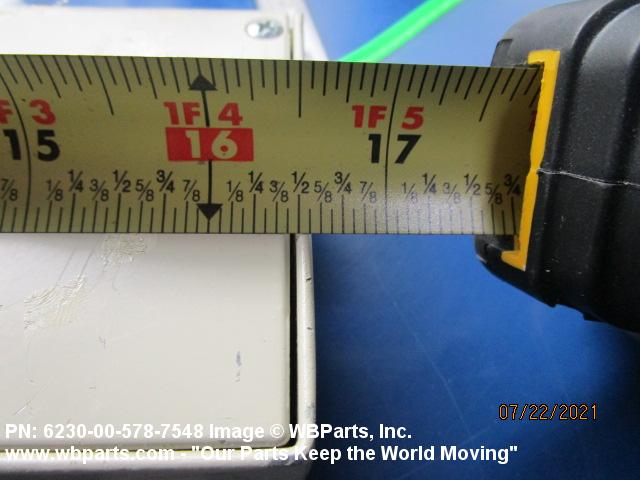

| OVERALL LENGTH | 16.563 INCHES MINIMUM AND 16.687 INCHES MAXIMUM |

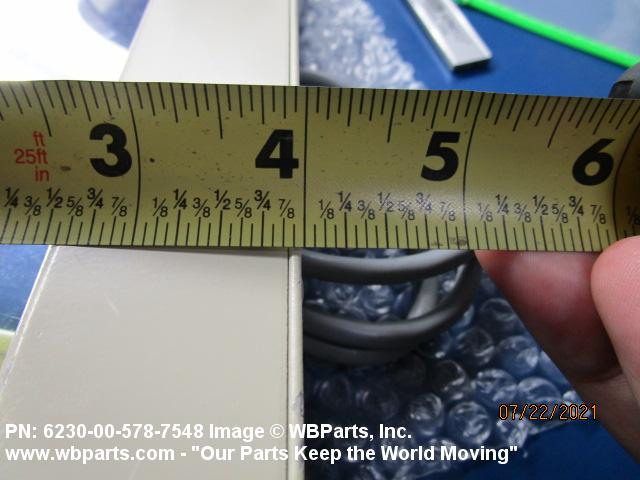

| OVERALL WIDTH | 4.000 INCHES MINIMUM AND 4.122 INCHES MAXIMUM |
| VOLTAGE RATING IN VOLTS | 120.0 AC NOMINAL |
| MATERIAL | ALUMINUM OR PLASTIC BODY ALUMINUM REFLECTOR |
| SURFACE TREATMENT | POLISHED REFLECTOR |
| LAMP TYPE ACCOMMODATED AND QUANTITY | 1 FLUORESCENT |
| LAMP BASE TYPE ACCOMMODATED | MINIATURE BIPIN |
| MOUNTING METHOD | SCREW |
| TERMINAL TYPE AND QUANTITY | 3 WIRE LEAD |
| WIRING PROVISION METHOD | CABLE |
| WIRING PROVISION LENGTH | 120.0 INCHES NOMINAL SINGLE PROVISION |
| ILLUMINATION DIRECTING DEVICE TYPE | INTERNAL REFLECTOR |
| FURNISHED ITEMS AND QUANTITY | 1 LAMP AND 1 STARTER,FLUORESCENT LAMP |
| FEATURES PROVIDED | SWITCH |
| III UNPACKAGED UNIT WEIGHT | 4.125 POUNDS |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-F-16377/17 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M16377/17-232 |
Restrictions/Controls & Freight Information | NSN 6230-00-578-7548
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109700 | LAMP OR LIGHTING FIXTURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 761 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6230-00-578-7548
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
