NSN 6230-00-295-1603 A92299, ANC742AVQ2, C742AVC2A
Product Details | SEARCHLIGHT CONTROL
6230-00-295-1603 A component which determines the mode of operation of a searchlight.
Part Alternates: A92299, ANC742AVQ2, C742AVC2A, C742AVQ2A, 92299, 6230-00-295-1603, 00-295-1603, 6230002951603, 002951603
Lighting Fixtures and Lamps | Electric Portable and Hand Lighting Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 01 JAN 1963 | 00-295-1603 | 00942 ( CONTROL, SEARCHLIGHT ) |
Drawings & Photos | NSN 6230-00-295-1603
Cross Reference | NSN 6230-00-295-1603
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 92299 | 03848 | ARMA DIV AMBAC INDUSTRIES INC |
| A92299 | 58250 | BALLANTYNE OF OMAHA INC. |
| ANC742AVQ2 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| C742AVC2A | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| C742AVQ2A | 80058 | JOINT ELECTRONICS TYPE DESIGNATION SYSTEM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6230-00-295-1603
Related Products | NSN 6230-00-295-1603
Technical Data | NSN 6230-00-295-1603
| Characteristic | Specifications |
|---|---|

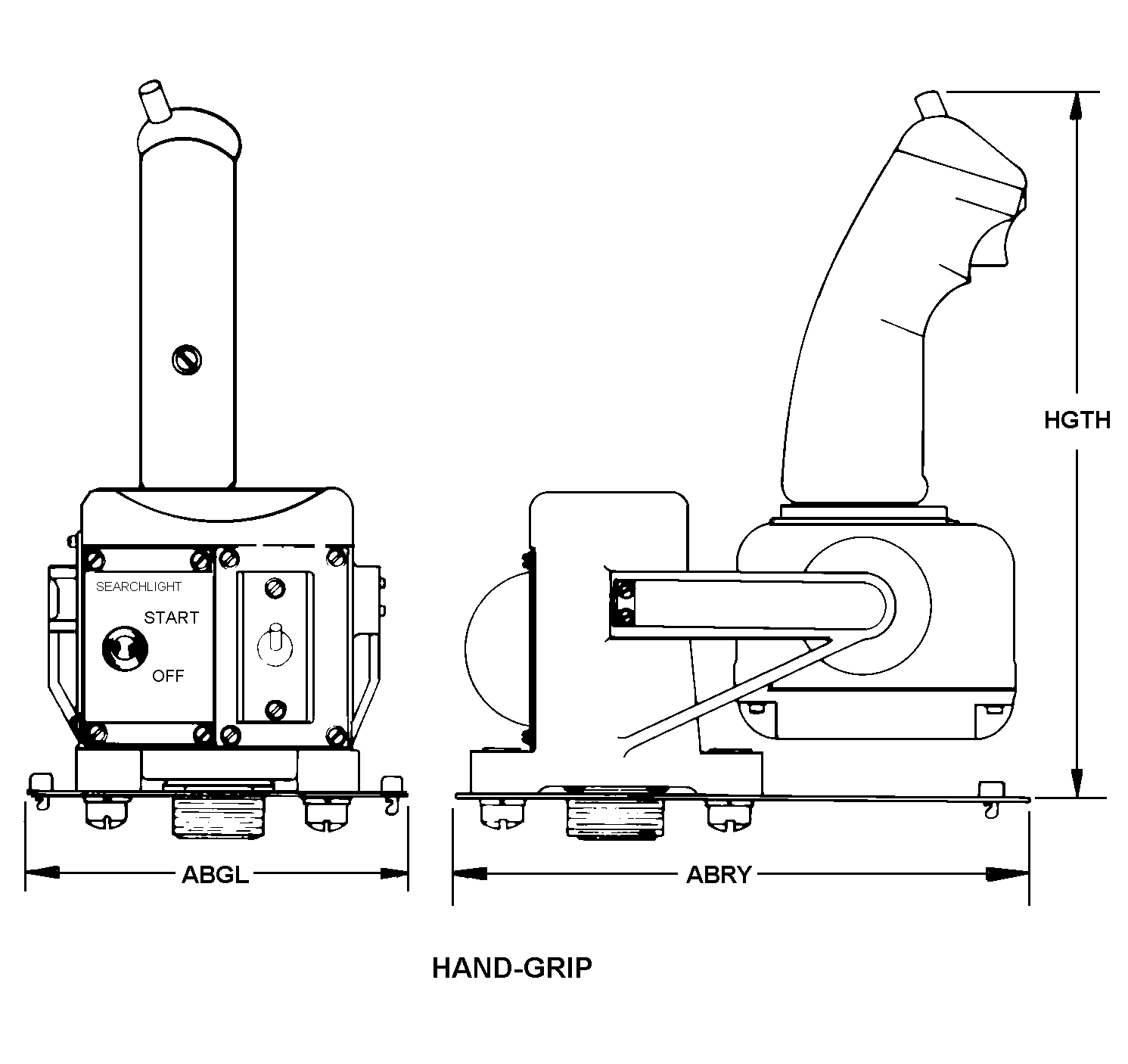

| STYLE DESIGNATOR | E1 HAND-GRIP |
| WIDTH | 5.750 INCHES NOMINAL |
| LENGTH | 8.625 INCHES NOMINAL |
| HEIGHT | 10.156 INCHES NOMINAL |
| INCLOSURE MATERIAL | ALUMINUM ALLOY |
| INCLOSURE SURFACE TREATMENT | ENAMEL |
| OPERATING FUNCTION AND METHOD | ACTUATION SWITCH AND DEACTUATION SWITCH |
| FUNCTIONING SIGNAL METHOD | AUDIBLE CLICK |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 115.0 AC |
| USAGE DESIGN | INDOOR |
| MOUNTING FACILITY TYPE AND QUANTITY | 6 TWIST LOCK |
| FEATURES PROVIDED | INTERNAL BATTERY ACCOMMODATION |
| SPECIAL FEATURES | SIMULATNEOUS AC AND DC OPERATION |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | ANC742AVQ2 |
Restrictions/Controls & Freight Information | NSN 6230-00-295-1603
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061480 | CONTROLLERS/PARTS NOI O/T PLASTIC |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6230-00-295-1603
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7R | Aeronautical Depot Level Repairable Spares Naval Inventory Control Point, Philadelphia |
| Special Material ID | FX | Common Electronic Communication Equipment and Parts, Miscellaneous Manufacturers |
| Issue Repair, or Requisition | C0 | Critical item. Do not issue. Refer all requests to cognizant manager. |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | H | Depot Level Reparable |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
