Product Details | DOME LIGHT

6220-01-564-3413 A light specifically designed to be mounted on the interior overhead area of a ground or air vehicle or a marine craft to provide general illumination of the interior. See also FIXTURE, LIGHTING.

Part Alternates: ICD0230015, ICD-0230015, 0230015001, 0230015-001, 6220-01-564-3413, 01-564-3413, 6220015643413, 015643413

Lighting Fixtures and Lamps | Electric Vehicular Lights and Fixtures

Supply Group (FSG) NSN Assign. NIIN
62 12 JUN 2008 01-564-3413

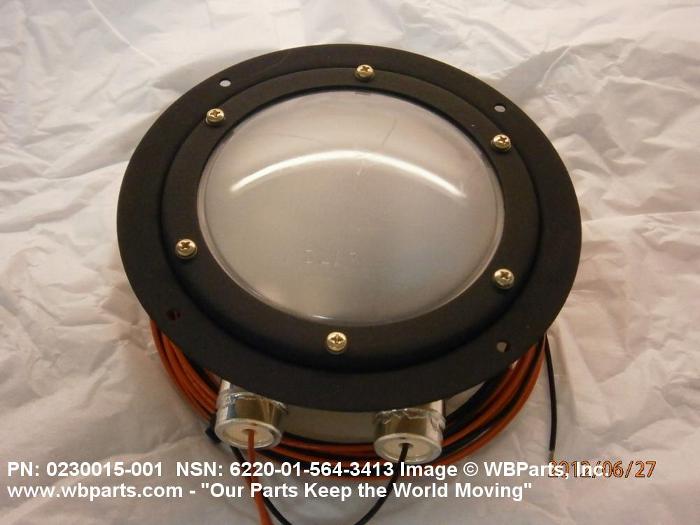

Drawings & Photos | NSN 6220-01-564-3413


Demand History | NSN 6220-01-564-3413

Part Number Request Date QTY Origin
6220-01-564-3413 2021-06-166 2 US
6220-01-564-3413 2021-04-98 2 United States
6220-01-564-3413 2021-04-96 2 US
0230015-001 2019-05-134 20 DIBBS
6220-01-564-3413 2018-11-318 20 DIBBS
6220-01-564-3413 2017-02-58 20 DIBBS
6220-01-564-3413 2017-02-45 20 DIBBS
0230015001 2012-03-65 2 Canada
0230015001 2012-03-65 2 Canada
0230015001 2012-02-33 6 Canada
0230015001 2012-01-11 2 Canada
6220-01-564-3413 2011-02-42 25 DIBBS
6220-01-564-3413 2011-02-33 12 DIBBS
0230015001 2010-08-216 2 United States
6220-01-564-3413 2010-01-07 25 DIBBS
6220-01-564-3413 2009-12-338 10 DIBBS
6220-01-564-3413 2009-09-251 20 DIBBS
6220-01-564-3413 2009-08-225 1 DIBBS
6220-01-564-3413 2009-04-101 4 DIBBS

Cross Reference | NSN 6220-01-564-3413

Part Number Cage Code Manufacturer
0230015-001 0VDA9 LUMINATOR HOLDING LP DBA LUMINATOR AIRCRAFT PARTS
ICD-0230015 0VDA9 LUMINATOR HOLDING LP DBA LUMINATOR AIRCRAFT PARTS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6220-01-564-3413

Technical Data | NSN 6220-01-564-3413

Characteristic Specifications
SHAPE ROUND LIFE:300HOURS,VOLTAGE:28VOLT,CURR ENT:0.67AMPS
III END ITEM IDENTIFICATION 1520-01-457-5179 HELICOPTER, CARGO TRANSPORT
III PART NAME ASSIGNED BY CONTROLLING AGENCY DOME LIGHT ROUND DUAL, W/WIRES

Restrictions/Controls & Freight Information | NSN 6220-01-564-3413

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 017870 AUTO ASSEMBLIES/DEVICE LIGHT
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 586 unknown
Originating Activity Code CT U.S. Army Aviation and Missile Command (AIR)
Redstone Arsenal, AL 35898-5230
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity H Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 6220-01-564-3413

Category Code Description
Materiel Category and Inventory ManagerT Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity2 Stock Fund Secondary Items
Management Inventory Segment1 REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance.
Specific Group/Generic Code0 Medical Materiel
Weapons Systems/End Item or Homogeneous Group00DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements CodeX Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDADepartment of the Army
Service OrganizationAU.S. Army
ReparabilityOIf condemned or economically unserviceable, dispose at organizational level.
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
