NSN 6220-01-483-2857 8940291, 894029-1, 01-483-2857
Product Details | LENS RETAINER
6220-01-483-2857 An item designed to align and/or restrain the movement of one or more lens by use of a fastening device. May include screw threads, screws, clips, or other fastening devices.
Part Alternates: 8940291, 894029-1, 6220-01-483-2857, 01-483-2857, 6220014832857, 014832857
Lighting Fixtures and Lamps | Electric Vehicular Lights and Fixtures
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 22 MAR 2001 | 01-483-2857 | 36560 ( RETAINER, LENS ) |
Drawings & Photos | NSN 6220-01-483-2857
Cross Reference | NSN 6220-01-483-2857
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 894029-1 | 1P175 | ENCORE INTERIORS, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6220-01-483-2857
Related Products | NSN 6220-01-483-2857
Technical Data | NSN 6220-01-483-2857
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 6061 |

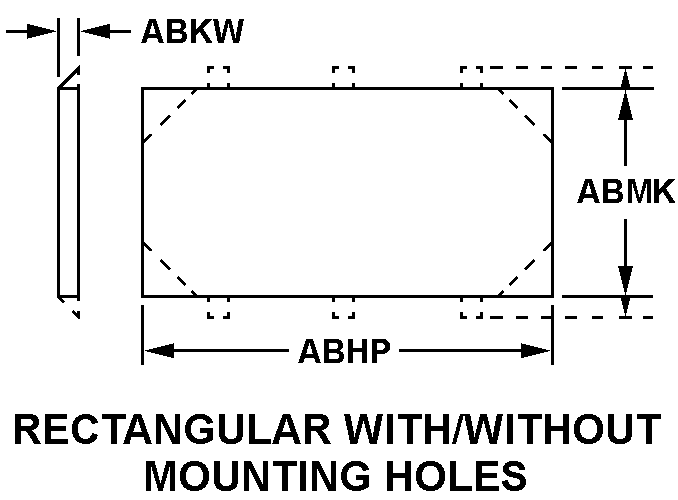

| STYLE DESIGNATOR | 41A RECTANGULAR WITH/WITHOUT MOUNTING HOLES |
| OVERALL LENGTH | 12.000 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.080 INCHES MAXIMUM |
| OVERALL WIDTH | 3.250 INCHES MAXIMUM |
| ACCOMMODATED ITEM SECURING DEVICE TYPE | FLANGE |
| MOUNTING FACILITY TYPE AND QUANTITY | 6 UNTHREADED HOLE SINGLE MOUNTING FACILITY |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.166 INCHES MAXIMUM SINGLE MOUNTING FACILITY |
| SPECIAL FEATURES | ORIGINAL NAME:BEZEL,LIGHT |
| III END ITEM IDENTIFICATION | C-17 AIRCRAFT |
| MANUFACTURERS CODE | 1P175 |
| DESIGN CONTROL REFERENCE | 894029-1 |
Restrictions/Controls & Freight Information | NSN 6220-01-483-2857
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 6220-01-483-2857
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | BA | TB:C-17 PROGRAM |
| Price Validation | E | The current standard price is an estimated price.
|
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Source of Supply | F77 | Boeing Military Transportation Aircraft Los Angeles, CA 90307-3044 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
