NSN 6220-01-349-8169 DAA3231P019111, DAA3231P019-111, 7110801
Product Details | ELECTRIC LIGHT CONTROL
6220-01-349-8169 An item specifically designed to remotely control the intensity and/or the on-off operation of a light or lights used for general illumination. May be manually operated and/or actuated by the degree of surrounding light intensity or sound vibration. Do not use for autotransformers, rheostats, or switches which are used without the addition of other parts to accomplish this function.20362100045Indoor and Outdoor Electric Lighting Fixtures62200038Electric Vehicular Lights and Fixtures62300045Electric Portable and Hand Lighting Equipment
Part Alternates: DAA3231P019111, DAA3231P019-111, 7110801, 711080-1, 6220-01-349-8169, 01-349-8169, 6220013498169, 013498169
Lighting Fixtures and Lamps | Electric Vehicular Lights and Fixtures
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 05 DEC 1991 | 01-349-8169 | 01870 ( CONTROL, ELECTRIC LIGHT ) |
Drawings & Photos | NSN 6220-01-349-8169
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6220-01-349-8169
Technical Data | NSN 6220-01-349-8169
| Characteristic | Specifications |
|---|---|

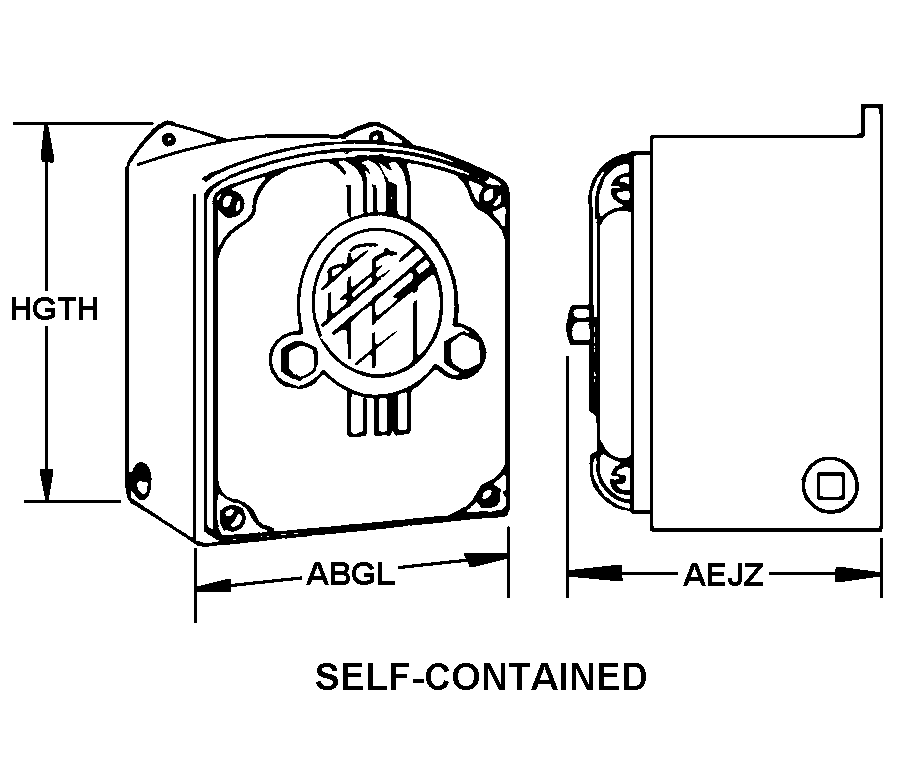

| STYLE DESIGNATOR | B3 SELF-CONTAINED |
| WIDTH | 4.750 INCHES NOMINAL |
| DEPTH | 6.000 INCHES NOMINAL |
| HEIGHT | 10.000 INCHES NOMINAL |
| INCLOSURE MATERIAL | ANY ACCEPTABLE |
| SPECIAL FEATURES | ESD/EMI |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| NUCLEAR HARDNESS CRITICAL FEATURE | HARDENED |
| III END ITEM IDENTIFICATION | PACER SPECIAL |
| MANUFACTURERS CODE | 19623 |
| DESIGN CONTROL REFERENCE | 711080-1 |
Restrictions/Controls & Freight Information | NSN 6220-01-349-8169
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | D | Both ESD and EMI sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | M | The item is specifically designed to be or selected as being nuclear hard. In addition the item has other critical features such as tolerance, fit restrictions or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109700 | LAMP OR LIGHTING FIXTURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 761 | unknown |
| Originating Activity Code | SX | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Q | Extremely fragile items including delicate instruments. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | 3 | Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices). |
Management | NSN 6220-01-349-8169
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | FW | SX:B-2 AIRCRAFT |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | FHZ | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-5989 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | T | AF Recoverable Assembly Management System (AFRAMS) |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
