NSN 6220-01-343-1336 1351911, 135191-1, 01-343-1336
Product Details | INDICATOR LIGHT ASSEMBLY
6220-01-343-1336 An item designed to convey information of a specific nature concerning the circuit in which inserted. Consists of two or more LIGHT, INDICATOR.20362100045Indoor and Outdoor Electric Lighting Fixtures62200038Electric Vehicular Lights and Fixtures63400033Aircraft Alarm and Signal Systems
Part Alternates: 1351911, 135191-1, 6220-01-343-1336, 01-343-1336, 6220013431336, 013431336
Lighting Fixtures and Lamps | Electric Vehicular Lights and Fixtures
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 06 AUG 1991 | 01-343-1336 | 03430 ( LIGHT ASSEMBLY, INDICATOR ) |
Drawings & Photos | NSN 6220-01-343-1336
Cross Reference | NSN 6220-01-343-1336
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 135191-1 | 94271 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6220-01-343-1336
Technical Data | NSN 6220-01-343-1336
| Characteristic | Specifications |
|---|---|

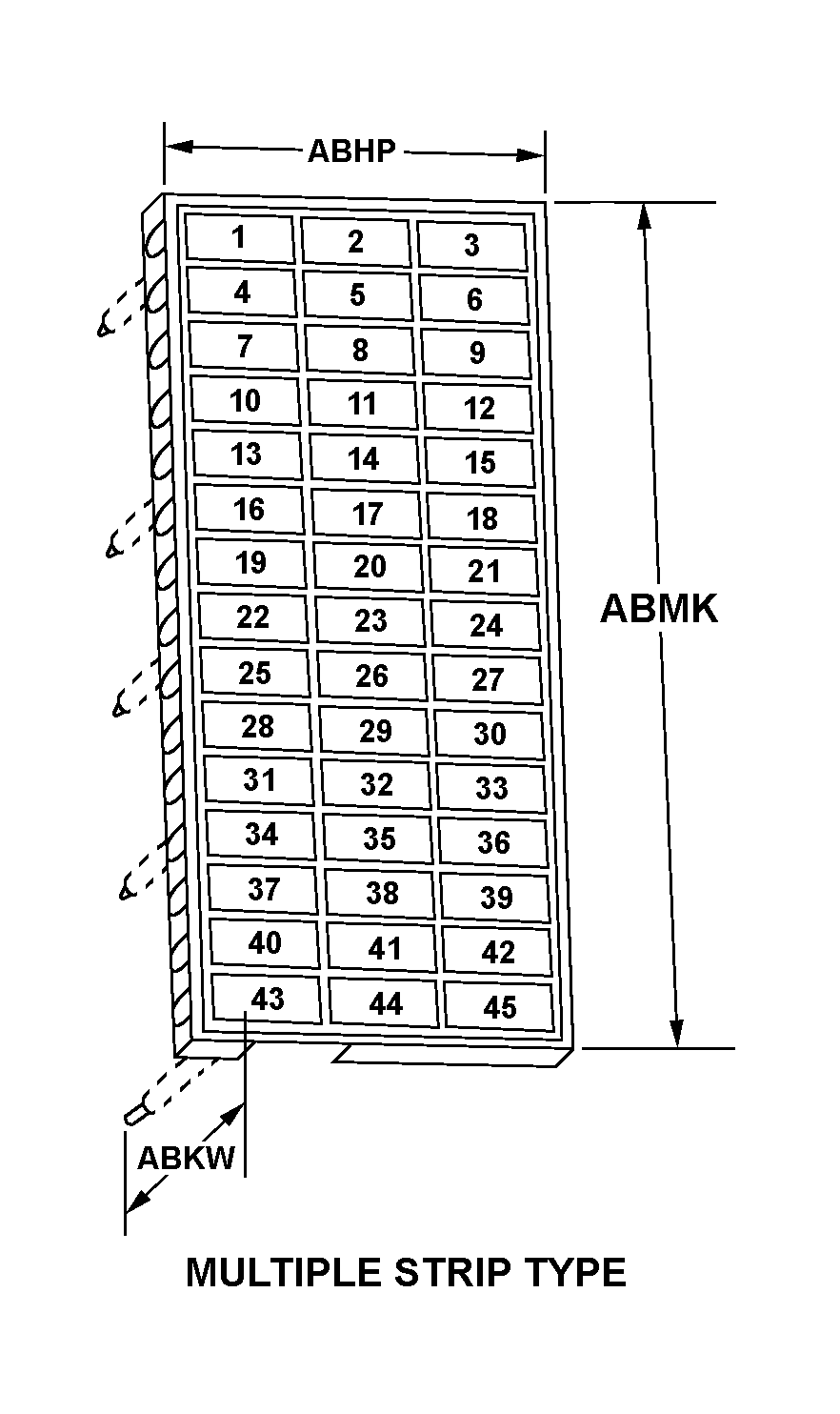

| STYLE DESIGNATOR | A15 MULTIPLE STRIP TYPE |
| OVERALL LENGTH | 6.784 INCHES NOMINAL |
| OVERALL HEIGHT | 2.062 INCHES NOMINAL |
| OVERALL WIDTH | 1.050 INCHES NOMINAL |
| MATERIAL | STEEL CORROSION RESISTING BODY |
| LAMP TYPE ACCOMMODATED AND QUANTITY | 2 INCANDESCENT |
| LAMP BULB SIZE DESIGNATOR | T-3/4 |
| LAMP BASE TYPE ACCOMMODATED | MIDGET FLANGED |
| LENS QUANTITY | 2 |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | AS DIFFERENTIATED BY MATERIAL WHICH MUST CONFORM TO SHIPS PARTS CONTROL CENTER SPECIAL QUALITY CONTROL PROVISIONS |
| CRITICALITY CODE JUSTIFICATION | ZZZY |
| MANUFACTURERS CODE | 94271 |
| DESIGN CONTROL REFERENCE | 135191-1 |
Restrictions/Controls & Freight Information | NSN 6220-01-343-1336
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | S | The item is a non-aviation Critical Safety Item (CSI) whose failure will result in serious damage to equipment or serious injury or death to personnel. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109700 | LAMP OR LIGHTING FIXTURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 761 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6220-01-343-1336
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
