NSN 6220-01-341-9198 112-9006-13, 3030021399, 30-3002-13-99
Product Details | ILLUMINATION PANEL
6220-01-341-9198 A glass or plastic panel designed to have photometric requirements and be an integral part of an electrical circuit providing illumination to an indicator assembly. The surface can be treated to react to electrical energy with illumination. Excludes all engraved panels. See PANEL, INDICATING, LIGHT TRANSMITTING.20262100045Indoor and Outdoor Electric Lighting Fixtures62200038Electric Vehicular Lights and Fixtures
Part Alternates: 112-9006-13, 3030021399, 30-3002-13-99, 51211200000, 51-211200-000, 6220-01-341-9198, 01-341-9198, 6220013419198, 112900613, 013419198
Lighting Fixtures and Lamps | Electric Vehicular Lights and Fixtures
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 11 JUL 1991 | 01-341-9198 | 40114 ( PANEL, ILLUMINATION ) |

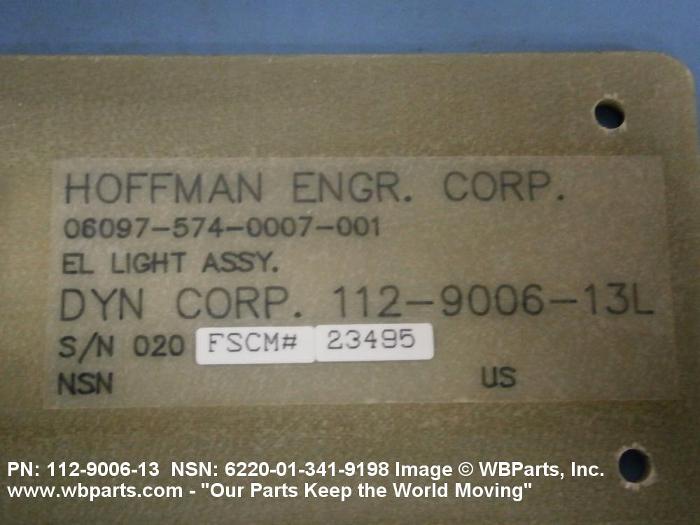

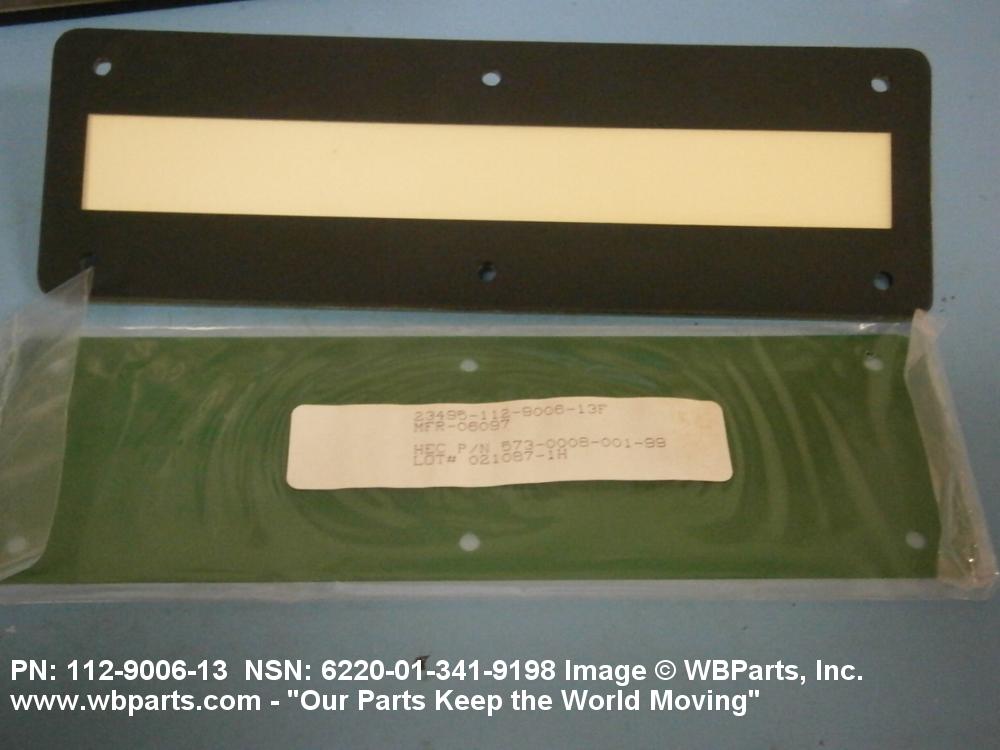

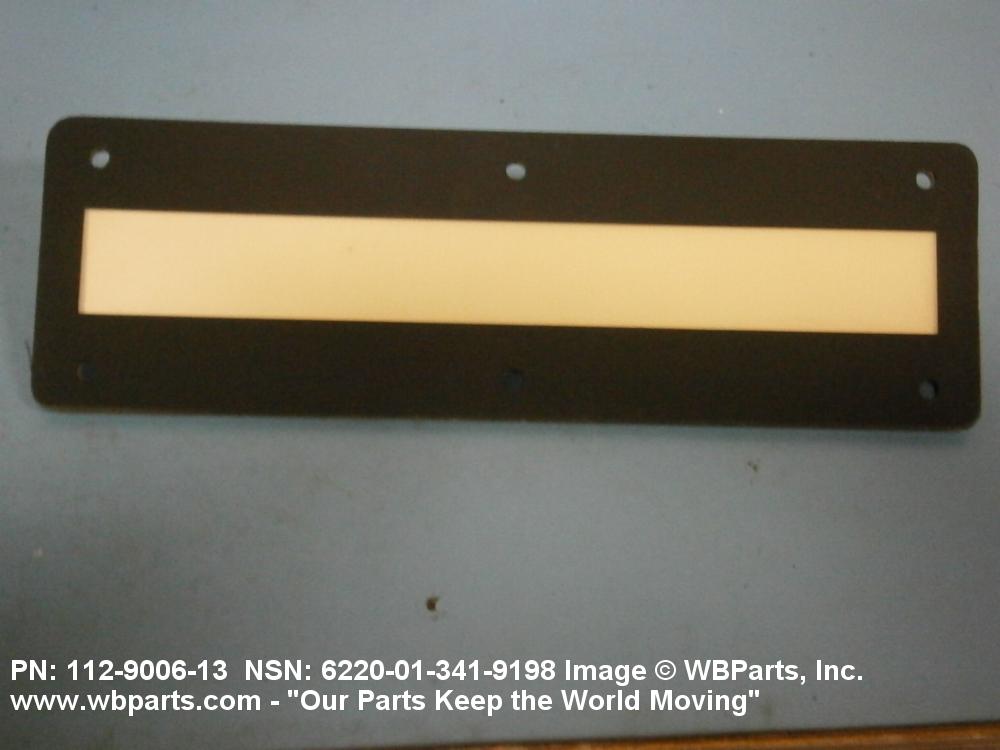

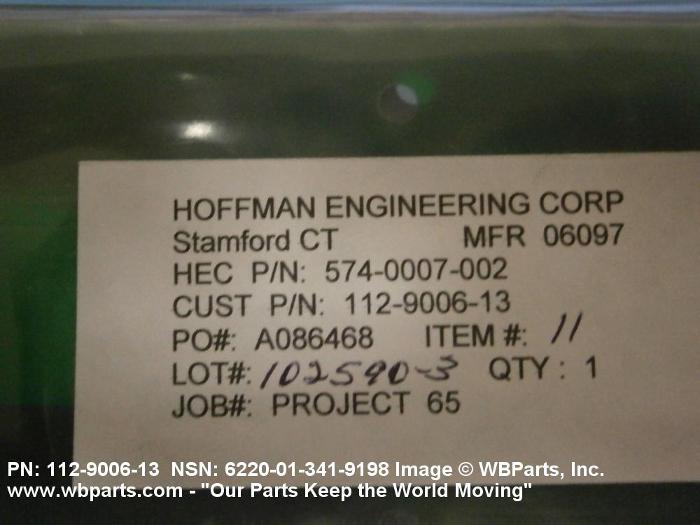

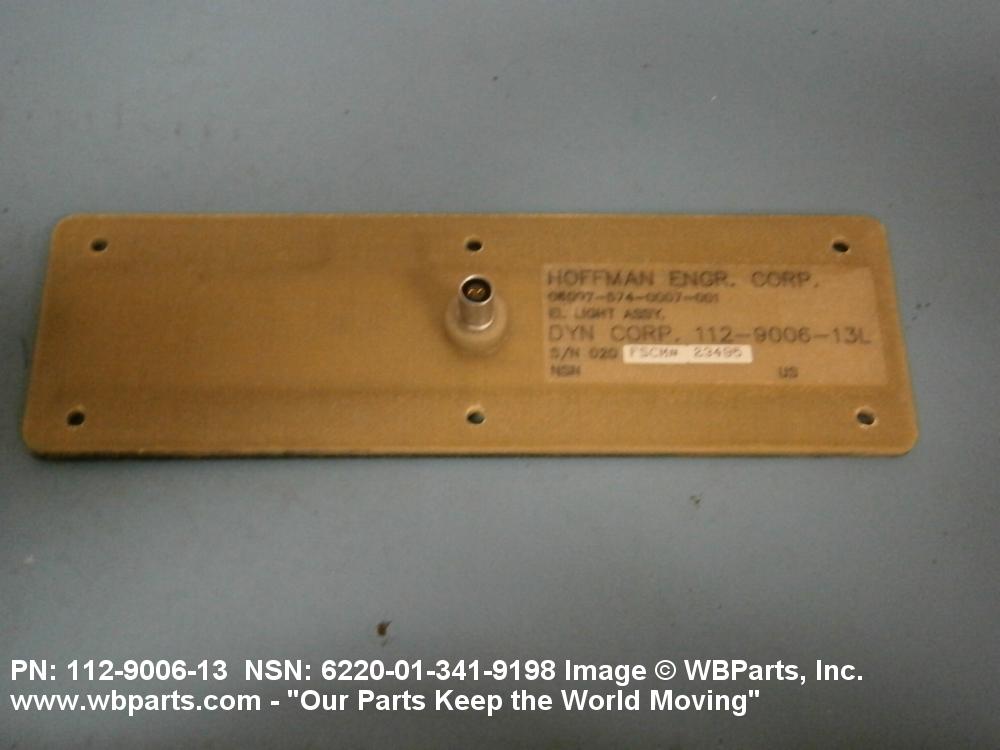

Drawings & Photos | NSN 6220-01-341-9198
Demand History | NSN 6220-01-341-9198
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6220-01-341-9198 | 2012-07-187 | 21 | DIBBS |
| 6220-01-341-9198 | 2011-11-318 | 0 | United States |
| 6220-01-341-9198 | 2011-11-312 | 22 | DIBBS |
| 6220-01-341-9198 | 2011-11-311 | 16 | United States |
| 6220-01-341-9198 | 2011-08-216 | 22 | DIBBS |
| 6220-01-341-9198 | 2011-06-157 | 16 | DIBBS |
| 6220-01-341-9198 | 2011-01-28 | 17 | DIBBS |
| 6220-01-341-9198 | 2008-08-218 | 48 | DIBBS |
Cross Reference | NSN 6220-01-341-9198
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 112-9006-13 | 06097 | HOFFMAN ENGINEERING CORPORATION |
| 112-9006-13 | 1SMB2 | DYNCORP INTERNATIONAL LLC |
| 112-9006-13 | 23495 | DYNCORP DBA USE CAGE CODE 03543 FOR |
| 112-9006-13 | 3AA78 | LUMINESCENT SYSTEMS INC |
| 30-3002-13-99 | 14550 | LUMINESCENT SYSTEMS INC DBA LSI |
| 30-3002-13-99 | 32890 | LUMINESCENT SYSTEMS, INC. DBA LUMINESCENT SYSTEMS |
| 51-211200-000 | 3AA78 | LUMINESCENT SYSTEMS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6220-01-341-9198
Related Products | NSN 6220-01-341-9198
Technical Data | NSN 6220-01-341-9198
| Characteristic | Specifications |
|---|---|
| III END ITEM IDENTIFICATION | AIRCRAFT,(AC-130A,AC-130H,MC-130H ,EC-130E) |
Restrictions/Controls & Freight Information | NSN 6220-01-341-9198
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 017870 | AUTO ASSEMBLIES/DEVICE LIGHT |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 585 | unknown |
| Originating Activity Code | CH | Defense Supply Center Richmond Richmond, VA 23297 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6220-01-341-9198
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
